Understood, since i'm new to this, i believe i made a mistake of designing cam in part drawing, and that's why the follower-roller is acting erratically. i'd take advice of Prof. Stancescu and design the cam in accelerator inside assembly environment itself, and then hopefully the follower-roller will behave predictably.

Thank you for the suggestions, and i'd get back with modified design.

I had designed camshaft in inventor 2024 as a single part (.ipt) , and trying to assemble it in assembly(.iam)

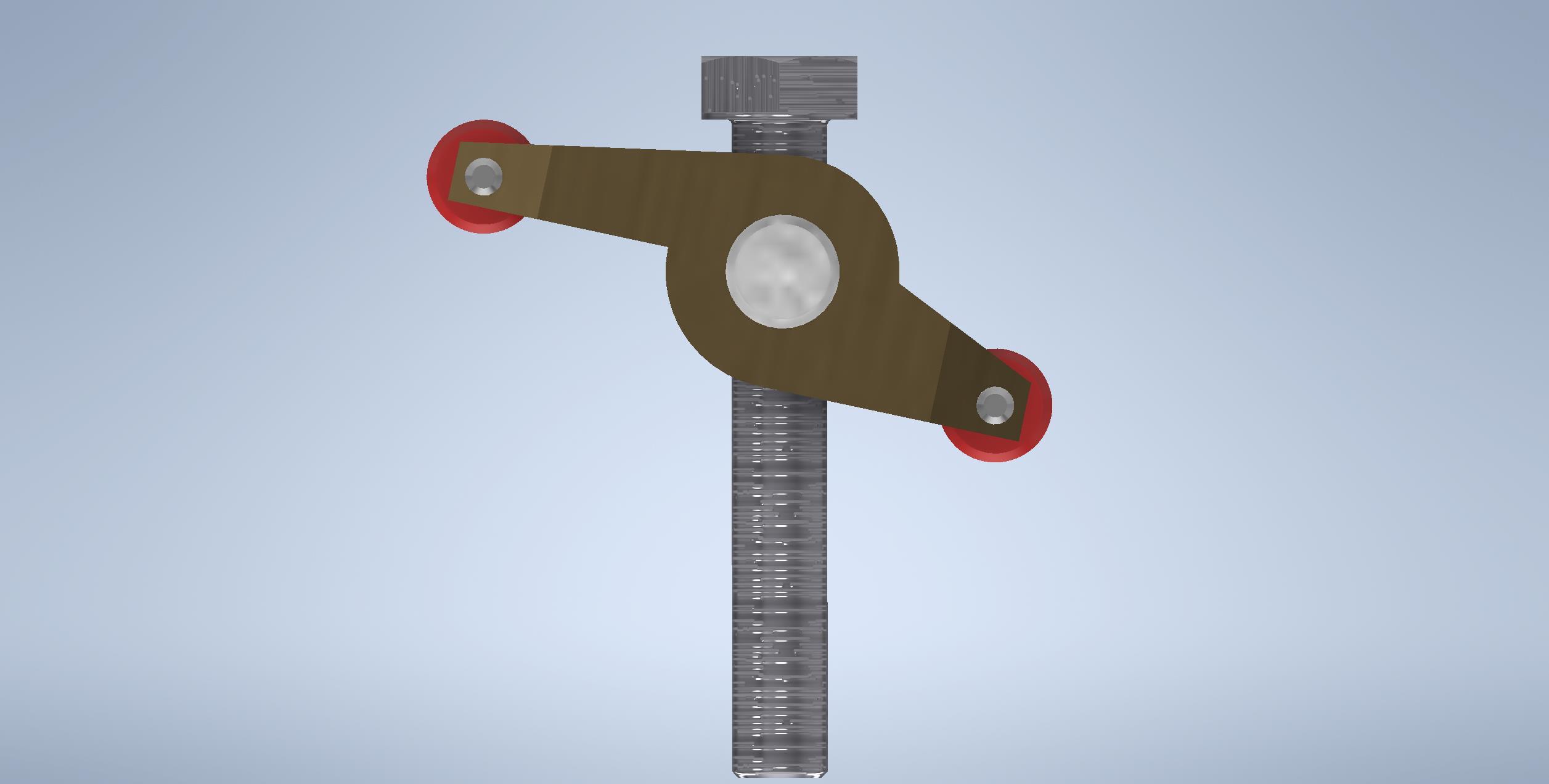

The follower is a rocker arm with cylindrical roller against cam, which is a sub-assembly(iam)

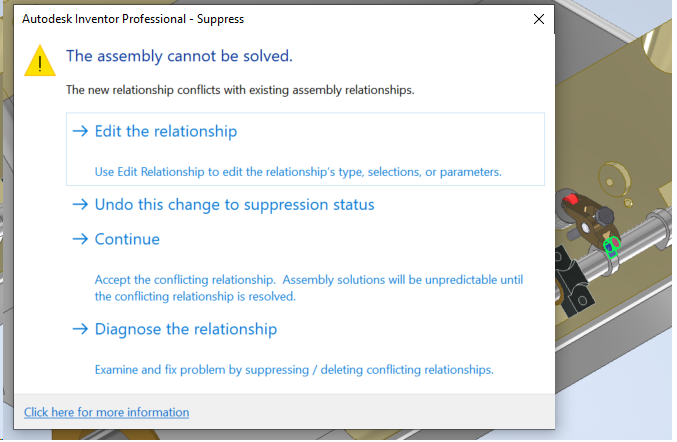

i've kept the sub-assembly as 'flexible', still unable to constain it properly to cams above, as it's giving error prompts.

As said above - without seeing your Inventor files we can not see what is going wrong in your assembly.

Your best bet is to create a surface offset from the cam face the distance of the cam follower radius. Then constrain the axis of the follower to the offset surface. You can then turn off the visibility of the surface.

here are the files i already uploaded

Grabcad model

V6 engine rocker arm Sub-assembly

This V6 engine rocker arm assembly model is meticulously designed using Autodesk Inventor, featuring detailed components essential for engine performance. The assembly includes the rocker arm, two pins, one rocker arm roll, and one hex head screw. This model is ideal for professionals and enthusi...

and

Grabcad model

camshaft V6 engine

detailed camshaft model designed for engine applications. Created with precision using Autodesk Inventor, this camshaft model is essential for anyone involved in automotive engineering, engine design, or mechanical projects. The package includes high-quality images and a comprehensive DWG file fo...

assembly is uploaded here in which, constrains for cam are supressed, everything else works

https://grabcad.com/library/v6-engine-model-turbocharged-1

I always use the last version of the time I post a tutorial

@Sourabh Bhalke

I have not yet been able to find out why your assembly is not working. For what purpose do you need such an animation? Perhaps you could consider creating an animation using the Dynamic Simulation. An example how that may look can you find >>here<<.

That's very nice of you to have personally looked into my CAD files. I'm just doing such animations for my overall portfolio for job applications. i'd definitely look into dynamic simulation option to see if it works.

Thanks again!

Good day,

I am interested about Facade Design, but I am Autodesk Inventor User. Do you have any recommendation about tutorial video or training?

Thanks!

@rachel Omar, Maybe you'd like to put this question seperately as a standalone question instead of in an ongoing discussion?

Watch my tutorial no. 148 and 251 for suggestions about buildings.

Use https://youtu.be/JgG4_5BLaEc and https://youtu.be/UgKnYoE4JKY

I did a quick search here in the library and found several versions of this engine. Because I don't want to spend time in unnecessary work:

Is there any engine with better constraints than this one?
