Can you make a sketch on a Body in Part Design?

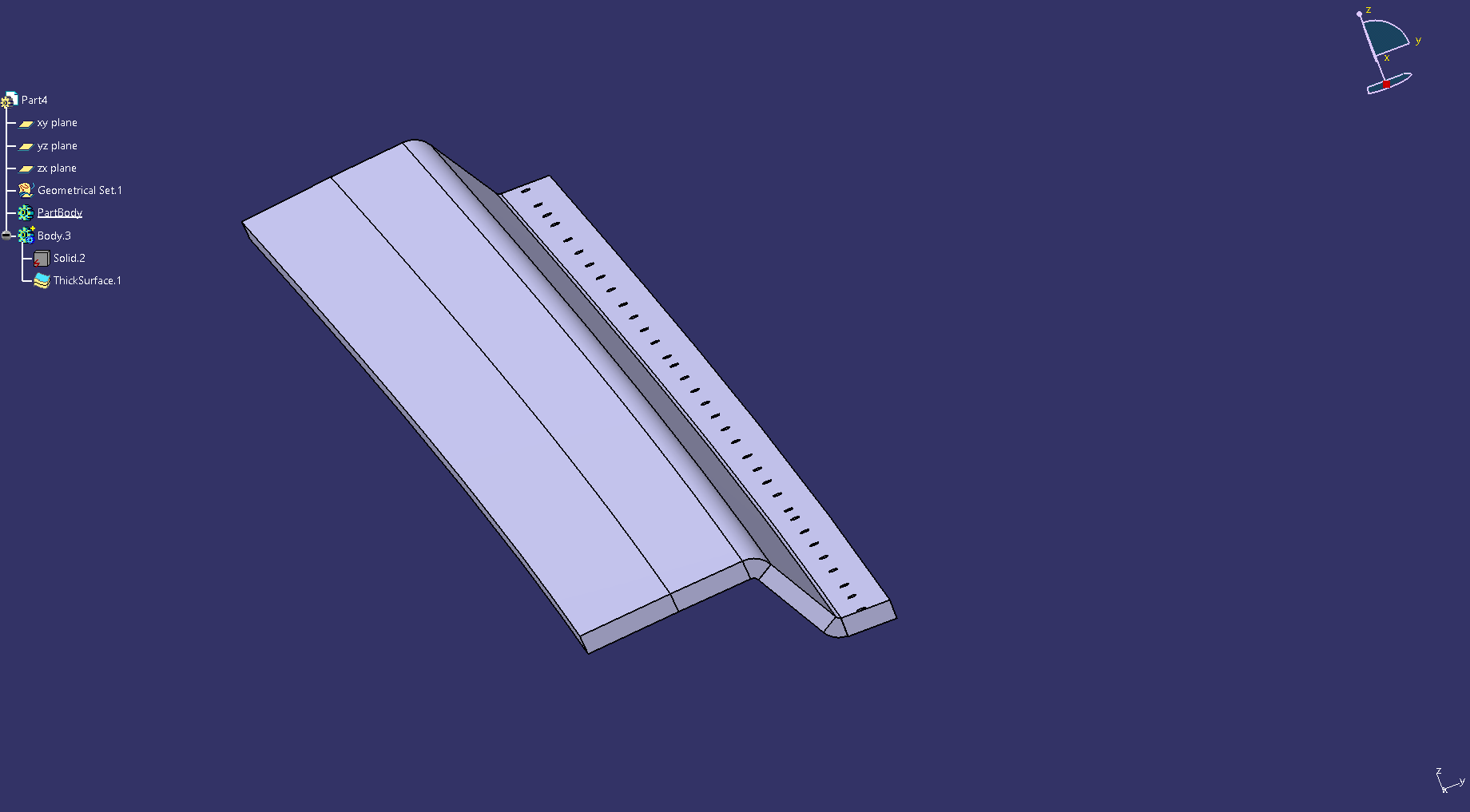

I have a Solid and a ThickSurface under a Body in my specification tree. I want to add on to the Body to make it the part i need. I tried to make a new sketch but it will not let me click on any of the surfaces of my current part to add on.
1 Answer
The face of the solid must be planar in order to use it for a Sketch.
(Hover the cursor over the face and look closely at the little symbol that appears, to determine what shape the face is)
Just add a Plane for your sketch and add what you need.
What's wrong with your model? The dumb solid you are starting with is probably not flat enough for CATIA.
