Can you use 1 sketch to drive multiple extrusions in inventor?

Alex hill
Alex hill
3 Jun, 2019 06:59 PM

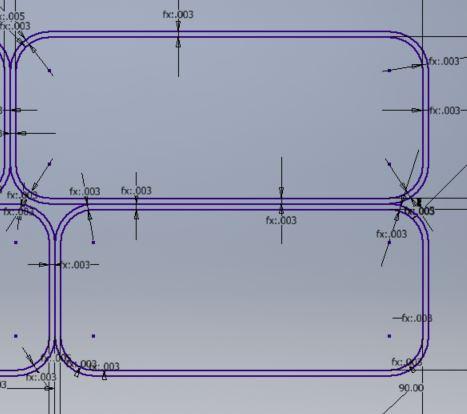

So for example if you have drawn a circle within a circle. is there a way to extrude the inner circle a certain distance and then the hollow circle around it another distance. I have drawn everything out how I want it in one sketch but need different pieces to be extruded different lengths.

1.JPG 1.JPG

1 Answer

CadCloud
CadCloud
Answered on 3 Jun, 2019 07:25 PM

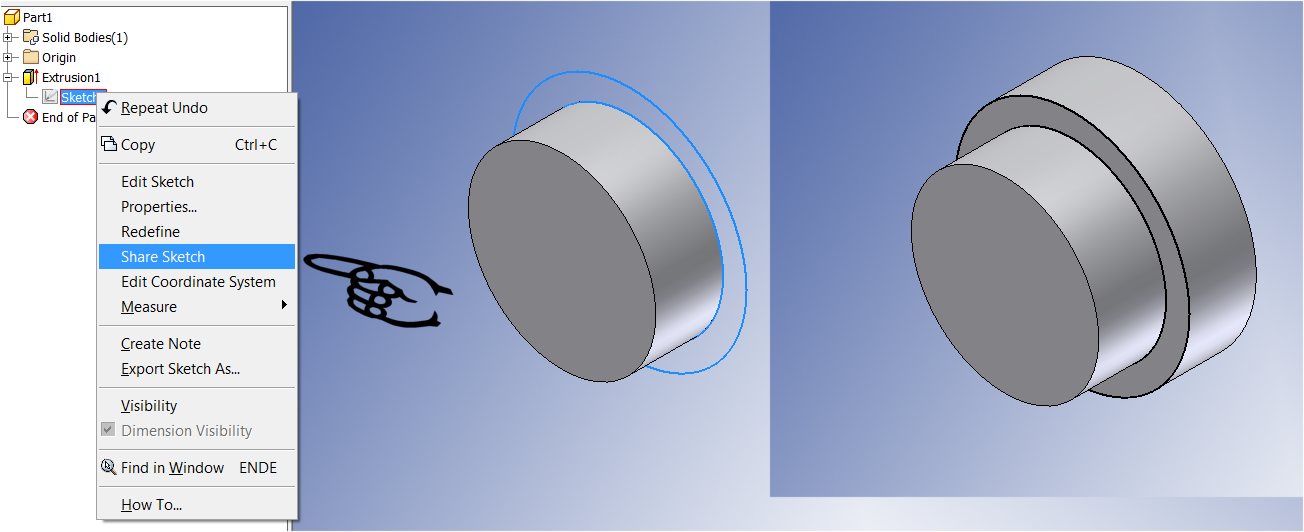

Right click and use shared sketch. Then you can extrude the sketch in different directions

1.png 1.png
