command , options missing in catia

Vinoth Irudaya Nathan
Vinoth Irudaya Nathan
21 Jul, 2023 04:29 AM

I'm using Catia v5
I'm a beginner currently.

in helix command of generative shape and wireframes..
where I find this tools missing..
variable pitch ? constant pitch....??!!

whereas while using multisession solids. I find.
AREA LAWS MISSING

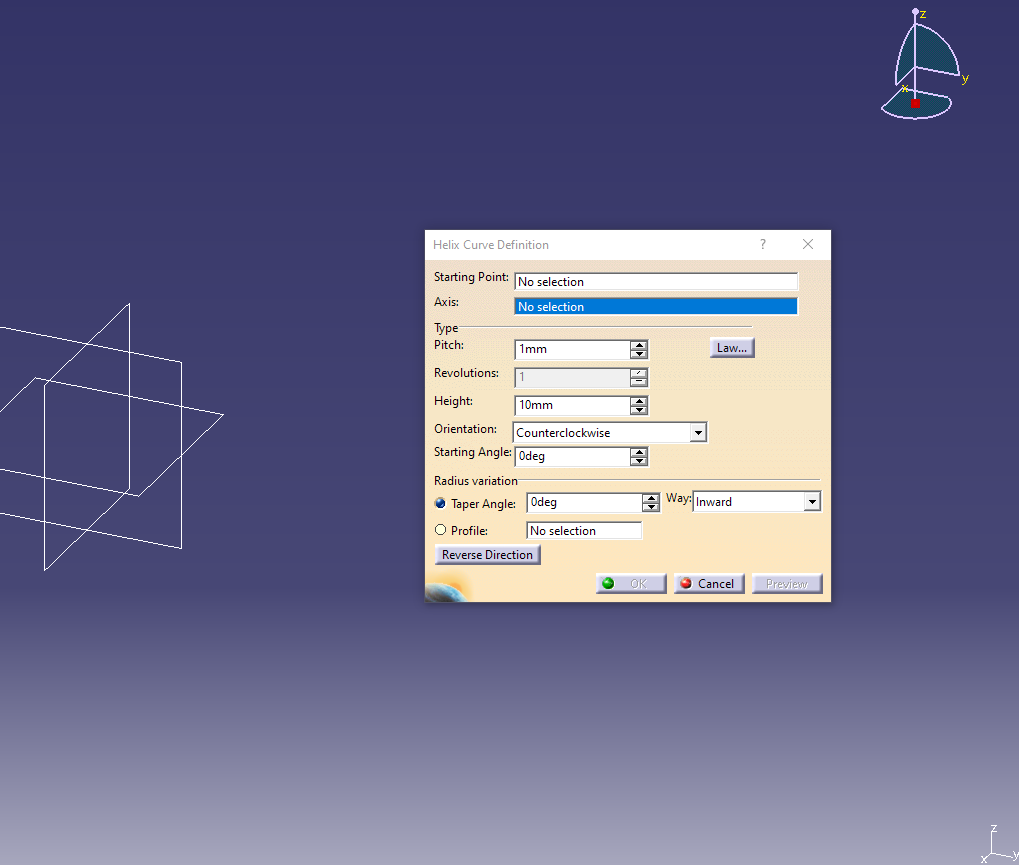

helix command.PNG helix command.PNG

2 Answers

Jack K
Jack K
Answered on 21 Jul, 2023 06:17 PM

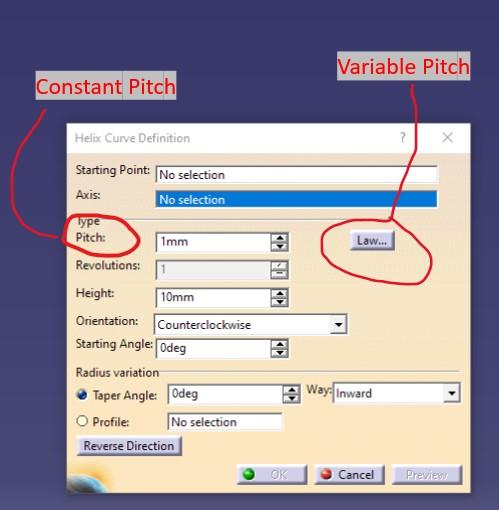

constant pitch is just PITCH. Use a Law to define a variable pitch

helix.jpg helix.jpg
Jack K
Jack K
Answered on 21 Jul, 2023 06:20 PM

The Multi-Section SOLID tool does not have a Law option.

Instead, make a Sweep Surface (does work with Laws), and then make a solid from the surface with ThickSurface or CloseSurface tools.
