Do I get some practice drawings for NX for surface modelling?

Praveenkumar KN
Praveenkumar KN
23 Mar, 2018 06:35 AM

For advanced learner need some of the practice drawings in surface modelling. If I get some of the drawings it would be good.

Thank you

2 Answer

cmalco
cmalco
Answered on 23 Mar, 2018 10:38 PM

Drawings? Are you wanting wireframe models to surface or, models to reverse engineer for the surfacing techniques?

There are a lot of them here on GrabCad, just search through the UG/NX projects in the Library.

I also have some I can send, most of which are NX11 models.

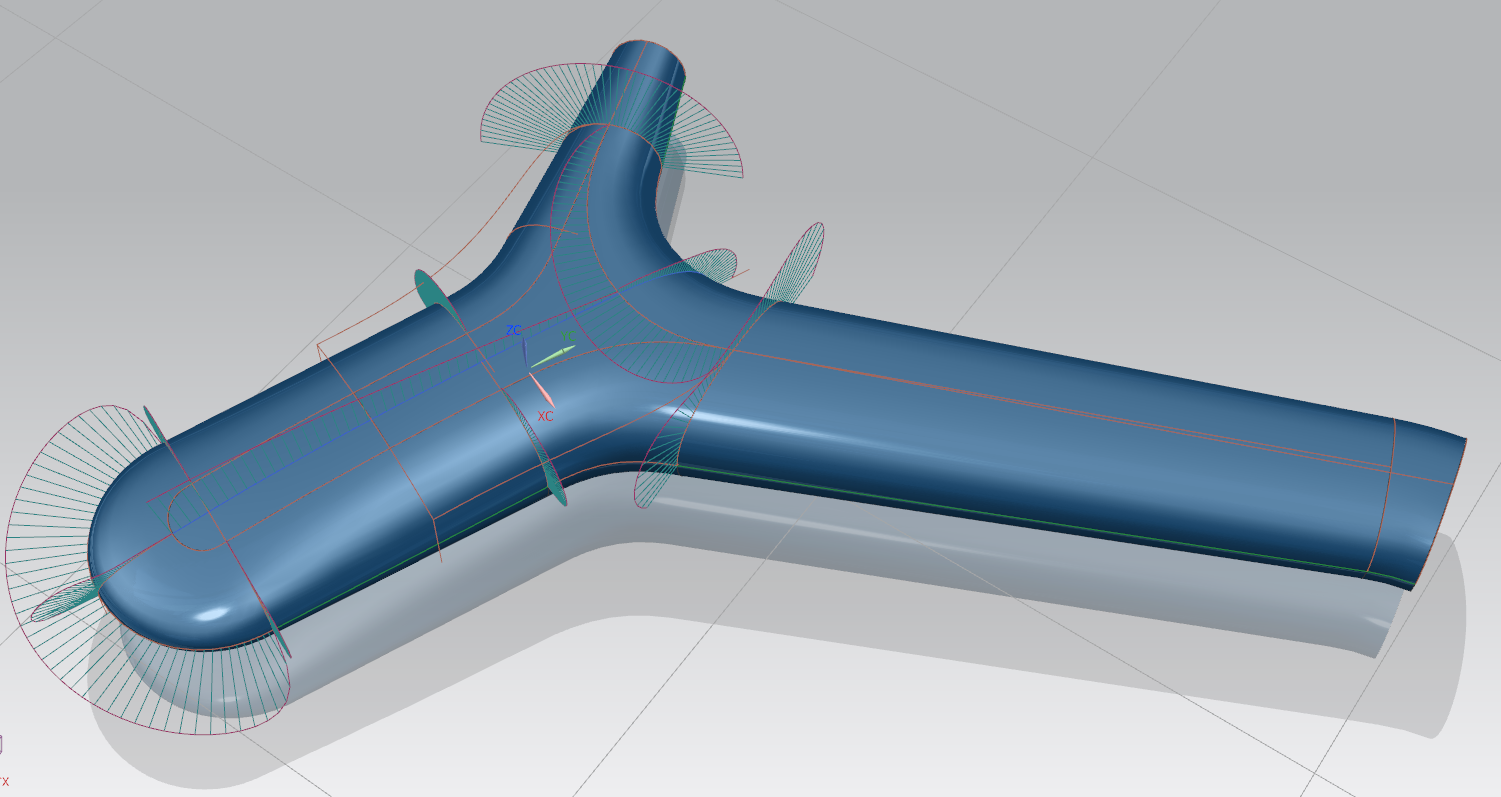

body_t32.PNG body_t32.PNG wireframe_t32.PNG wireframe_t32.PNG
Shuvam Kumar
Shuvam Kumar
Answered on 10 Oct, 2018 02:58 AM

https://youtu.be/BLz5Z-mCFNg

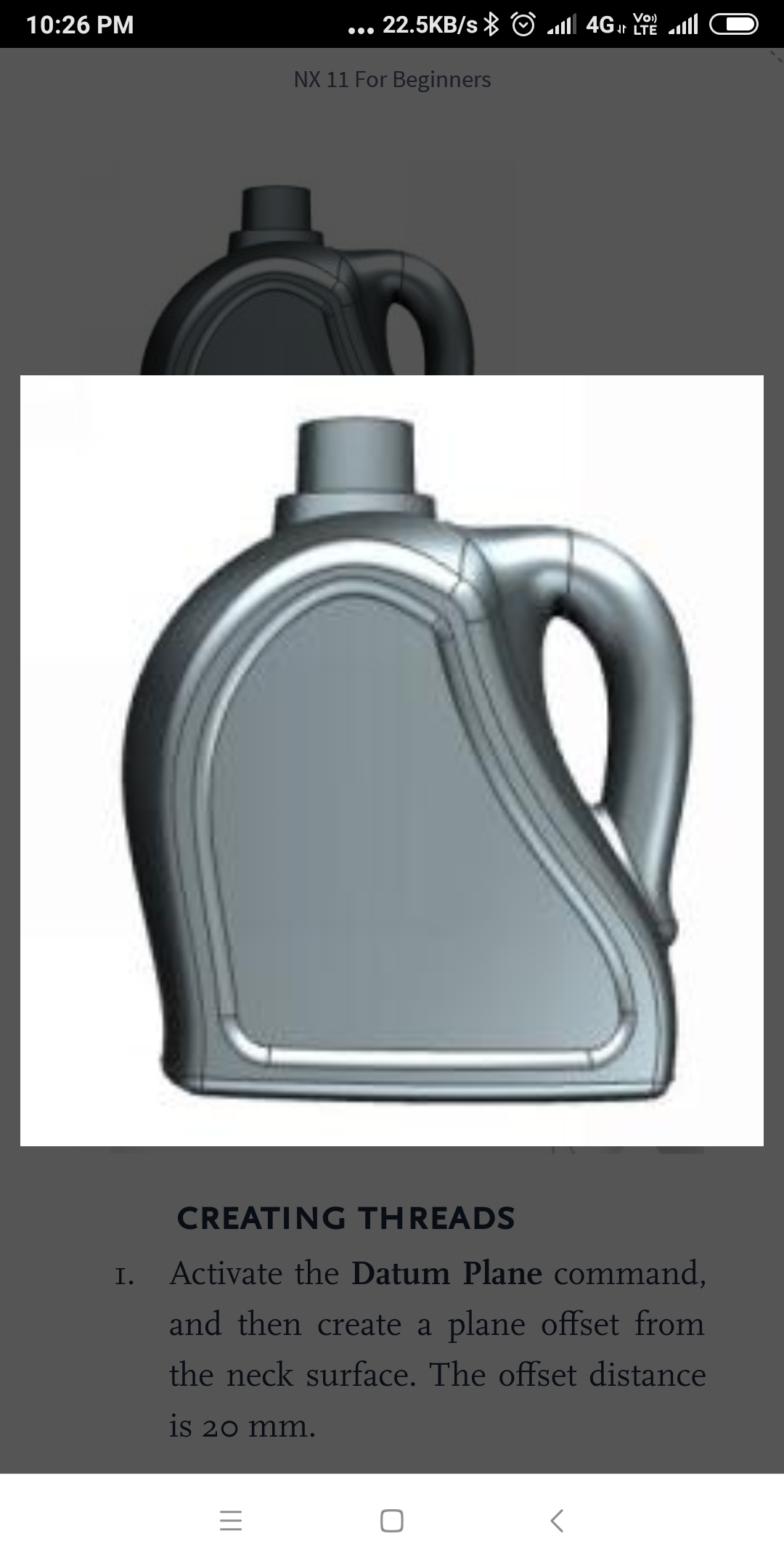

Screenshot_2018-10-04-22-26-27-710_com.scribd.app.reader0.png Screenshot_2018-10-04-22-26-27-710_com.scribd.app.reader0.png react_native_image_overlay_07-Oct-2018 11_05_55 PM
