Hello, can anyone convert a 3D scan of a bracket into a CAD model?

Egor
Egor
20 Aug, 2025 04:23 PM

After 3D scanning, the bracket must be converted into a CAD model

Accepted answer

Lim-Mech Draughting
Lim-Mech Draughting
Answered on 25 Aug, 2025 10:37 AM

Hello Egor,

Thank you for the efforts made to post a reduced polygon model. The below link will take you to a Solidworks model i uploaded, as well as a .step file and and stl version.

Please leave a comment on the posted model and share your thoughts on the free modelling work done by Lim-Mech.

Best regards

Band saw bracket

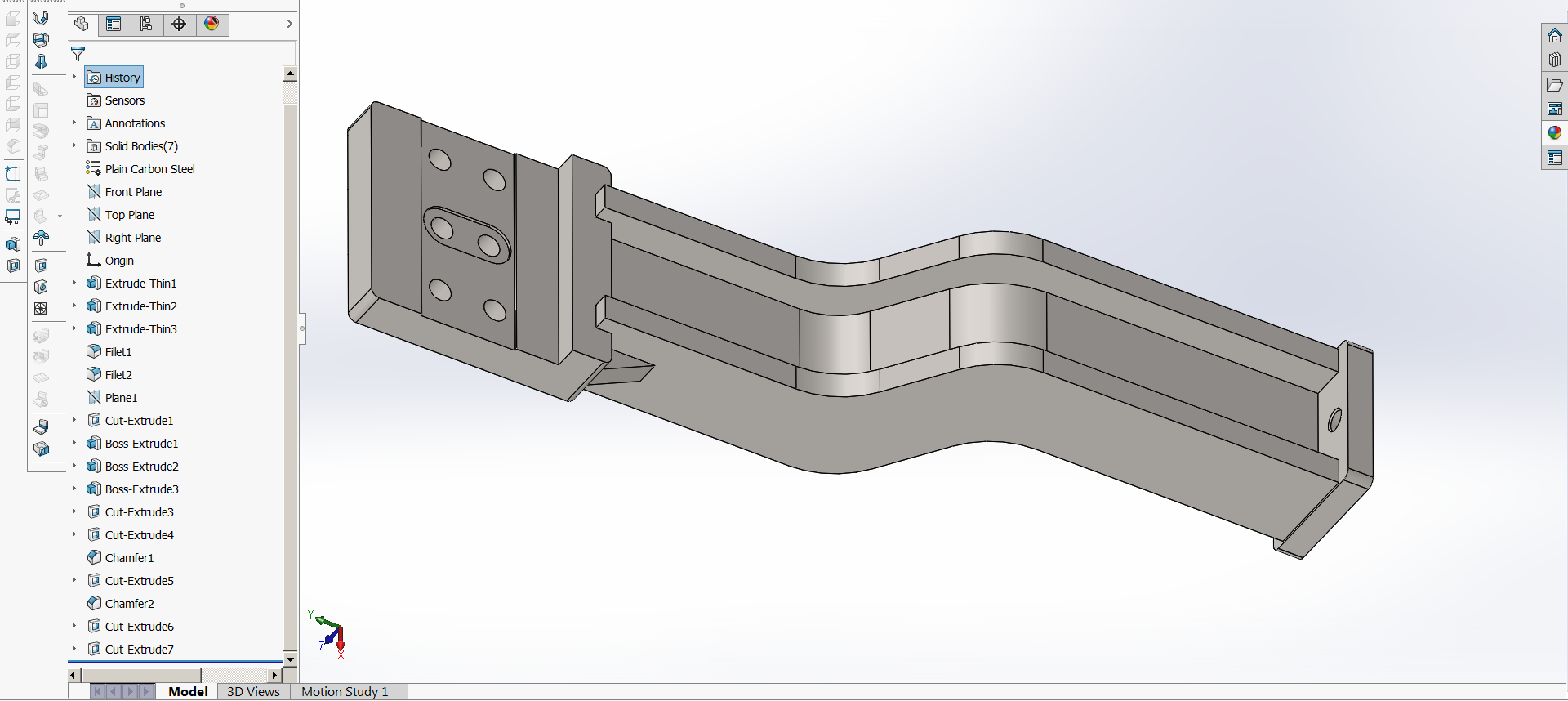

Band saw bracket 2025 - part 1.png Band saw bracket 2025 - part 1.png

0 Other answer
