How do i draw a helix hose?

Rodrigo Rodrigues
Rodrigo Rodrigues
30 May, 2018 02:05 PM

I'm trying do draw a helix hose for a CFD simulation, but I'm not getting even close on it SolidWorks.
I attached a pic of the hose.

Flexaust_R-2.jpg Flexaust_R-2.jpg

2 Answer

FredSWUG
FredSWUG
Answered on 30 May, 2018 09:13 PM

Posting your attempt(s) would make things easier.

I'd do it with two sweeps.
One for the coil. The 2nd for the clear coating.

SOLIDWORKS (2017), step, and image attached

E6.jpg E6.jpg Untitled 1.png Untitled 1.png Tube.STEP Tube.SLDPRT
Auday
Auday
Answered on 31 May, 2018 02:15 PM

I made it using Fusion 360

Spiral Hose

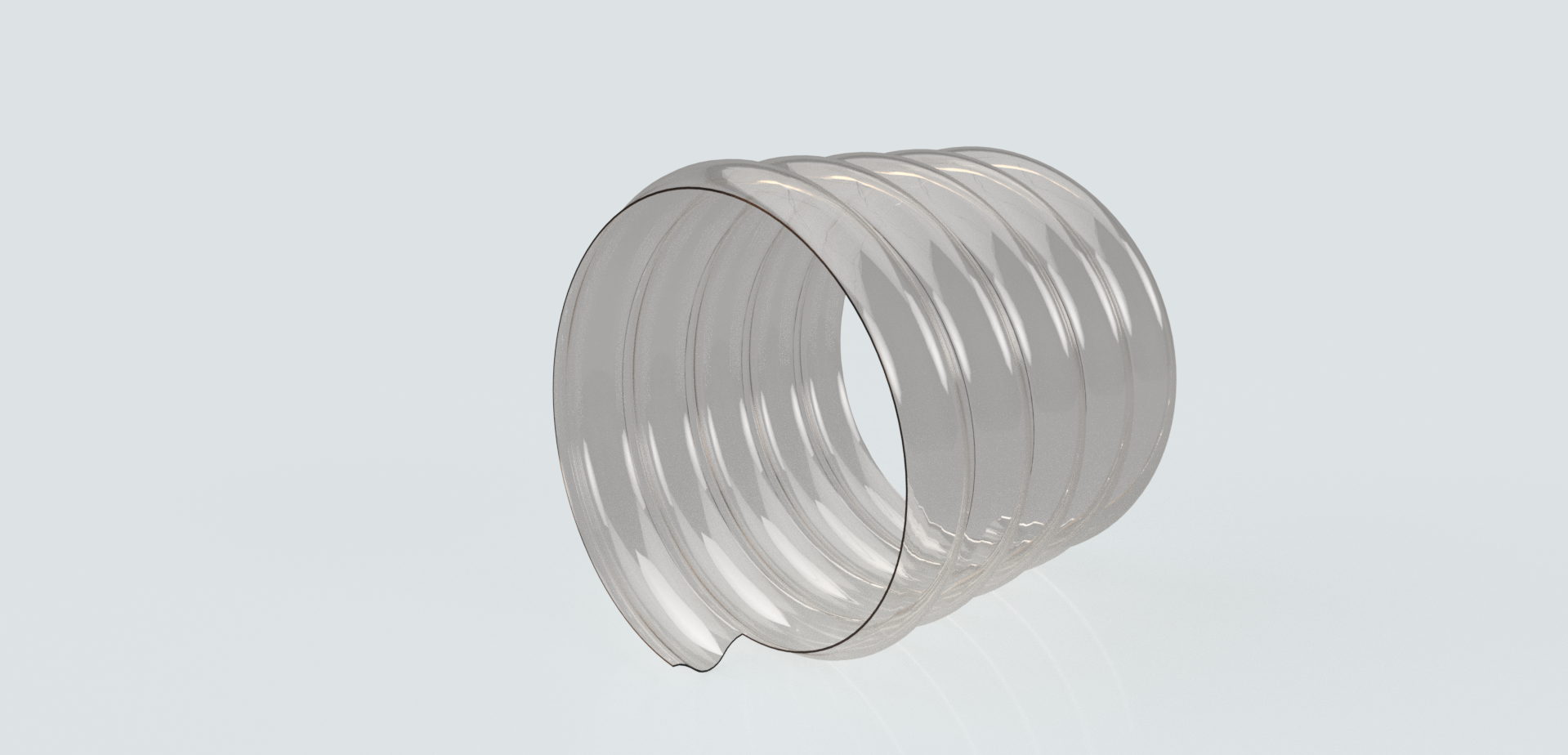

Spiral Hose.png Spiral Hose.png
