How to create hole table in creo 3 assembly drawing

anil a.c
anil a.c
21 Nov, 2016 08:50 AM

How to create hole table in creo 3 assembly drawing

2 Answers

yogesh patel
yogesh patel
Answered on 3 Jul, 2017 10:45 AM

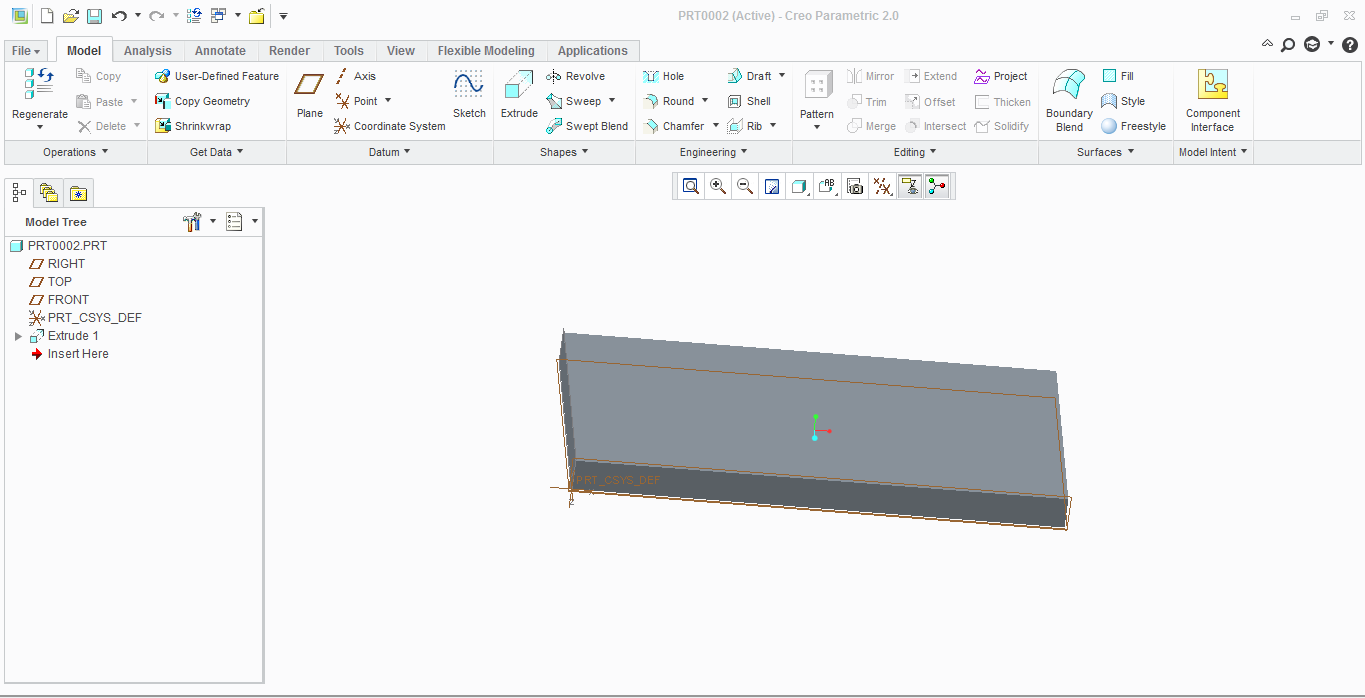

1. make plate

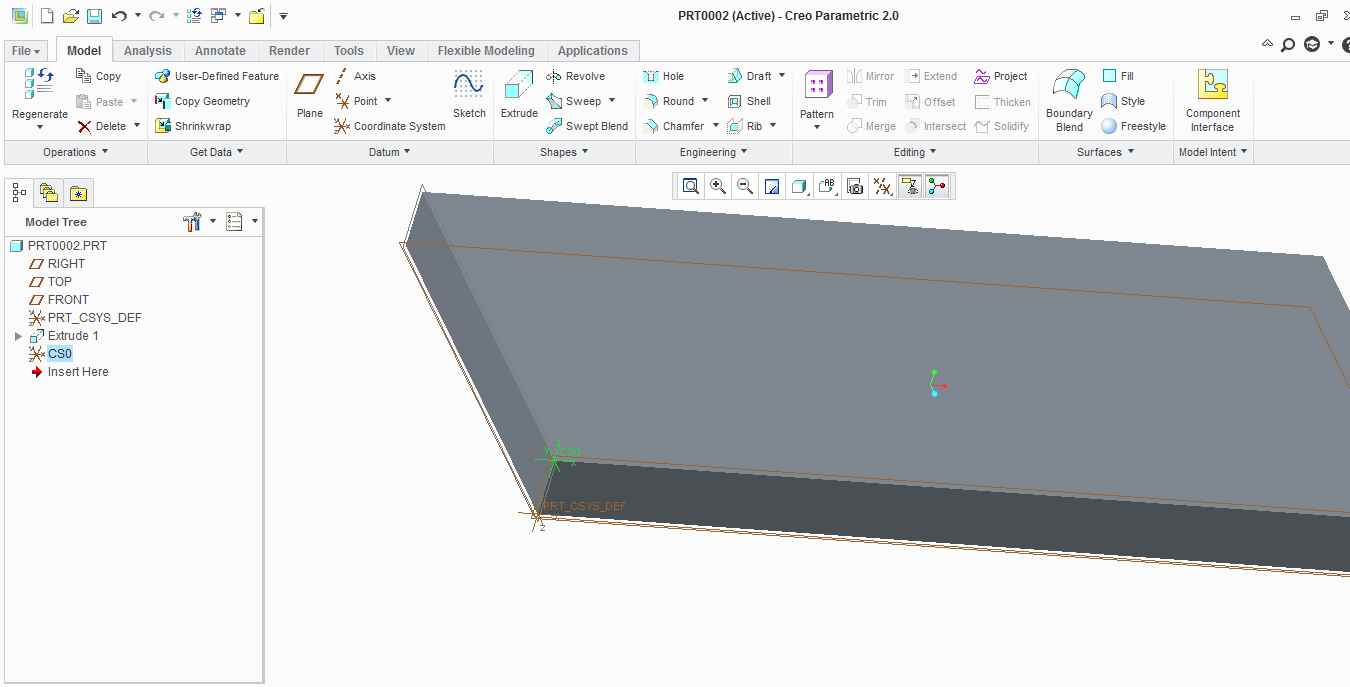

2. make cs at top face

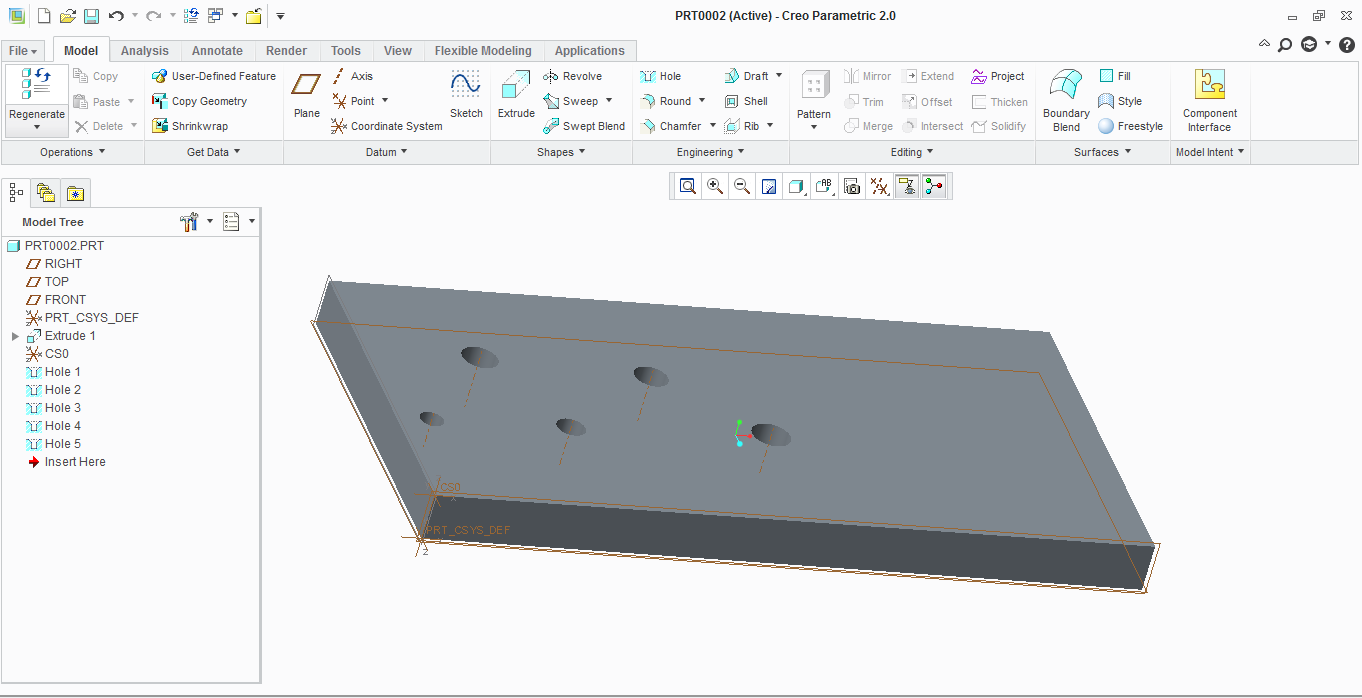

3. more hole

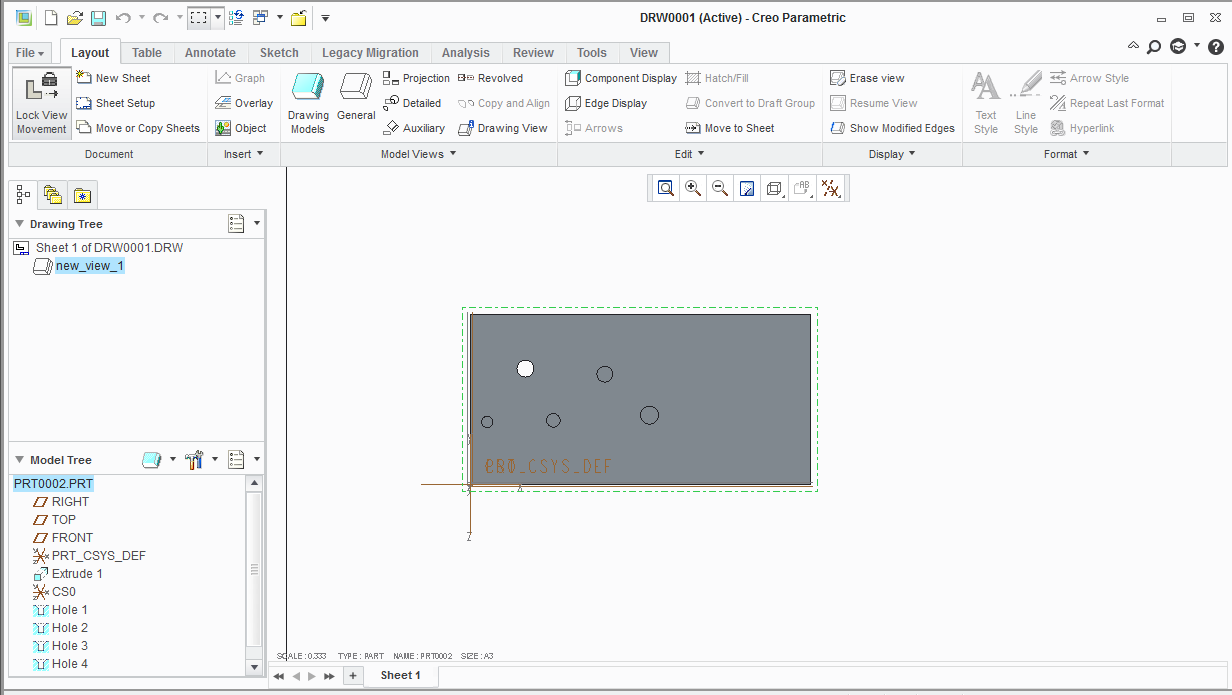

4.make drawing
5.select hole table

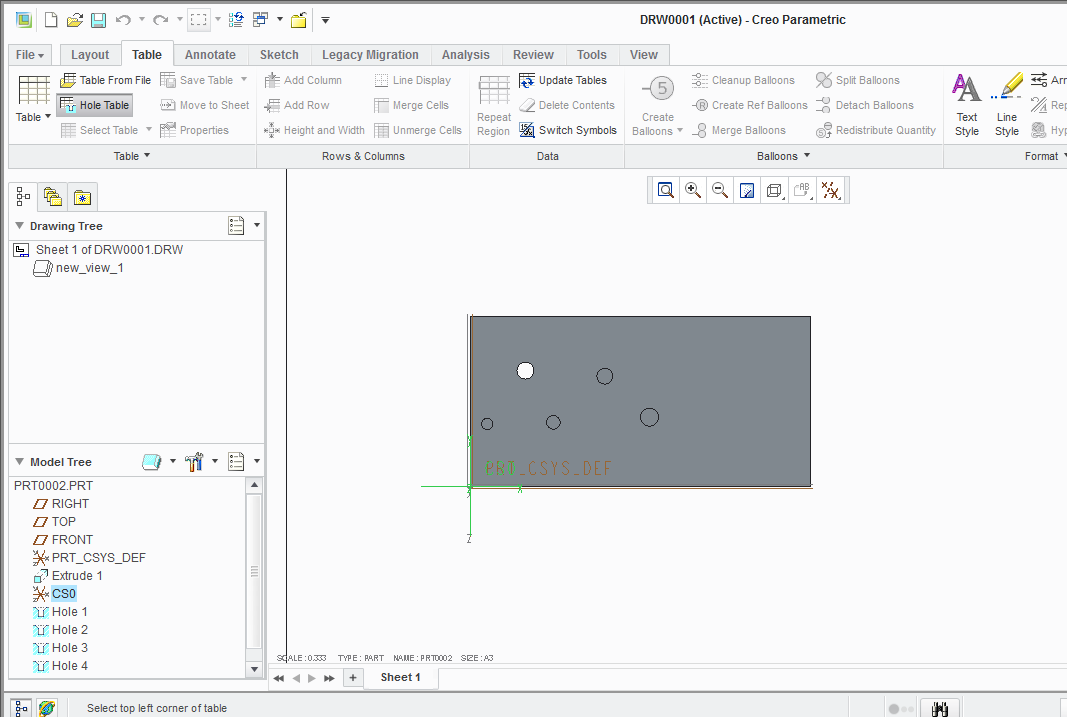

6. select new cs

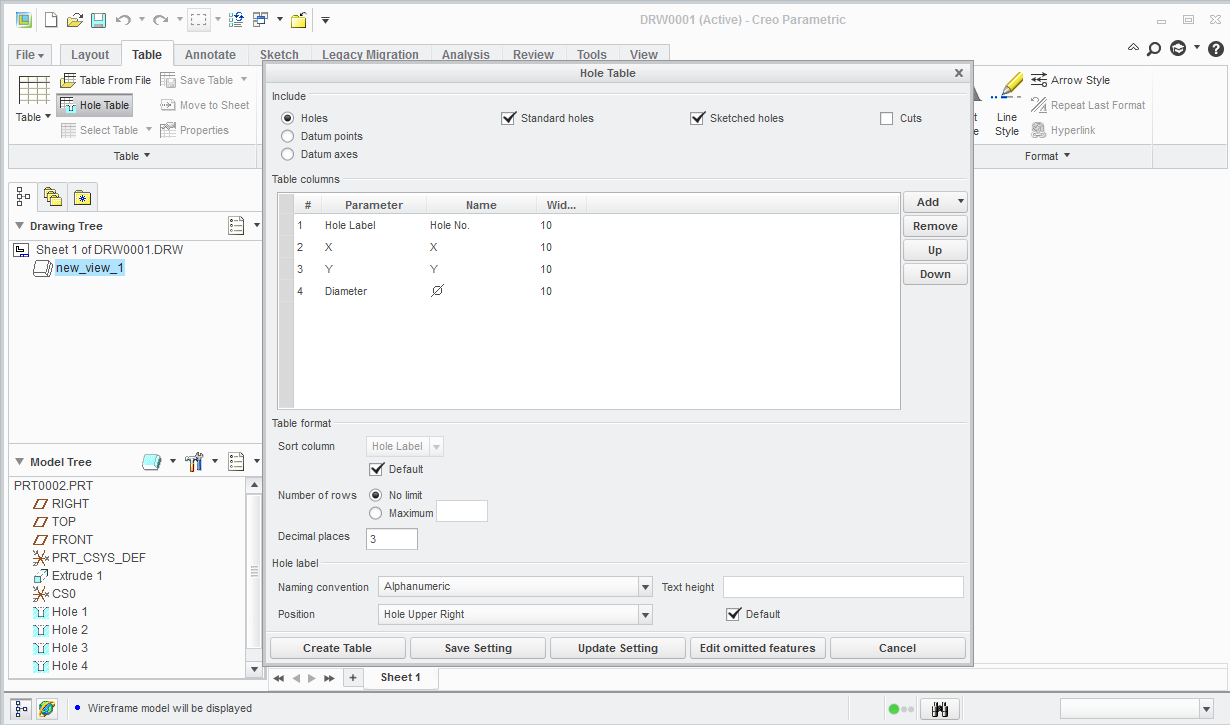

7. create table (at bottom )
8. click any where

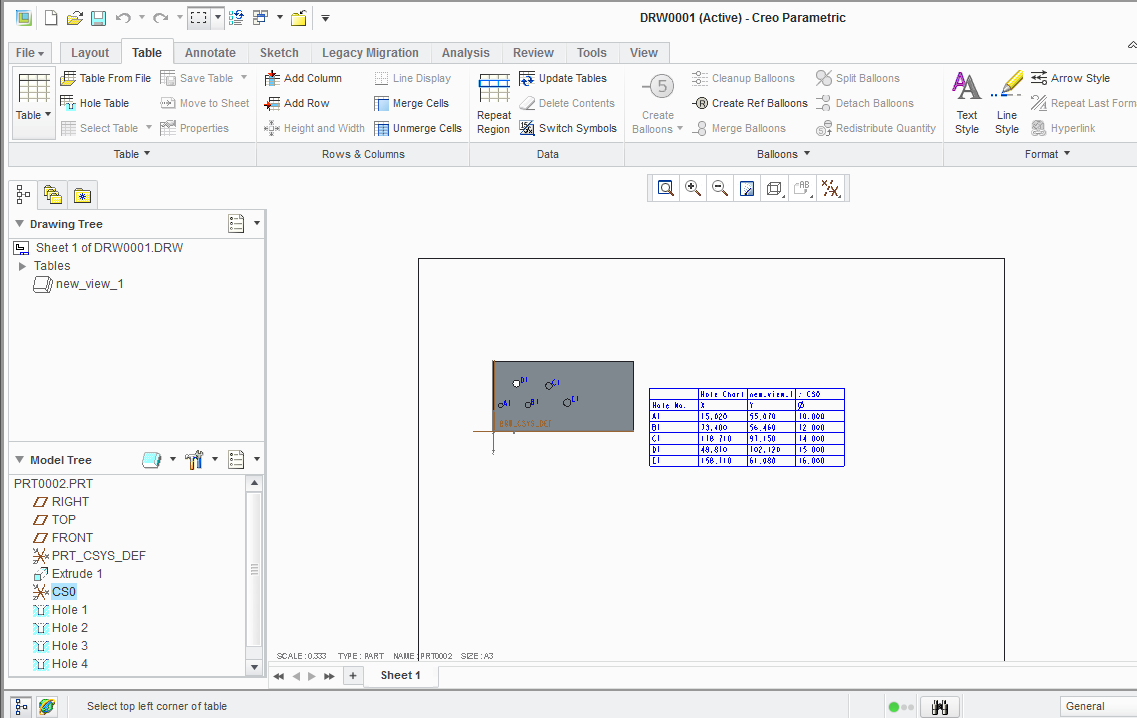

you got hole table.

8.PNG 8.PNG 7.PNG 7.PNG 6.PNG 6.PNG 5.PNG 5.PNG 4.PNG 4.PNG 3.PNG 3.PNG 2.PNG 2.PNG 1.PNG 1.PNG prt0002.prt.2 prt0002.prt.1 drw0001.drw.1
chanaka anuruddha
chanaka anuruddha
Answered on 23 Nov, 2016 03:20 AM

select "Hole wizard" option and select the place on the plane
