How to split the profile at 2 parts (flange& Web) from inventor?

BOSE
BOSE
20 Mar, 2025 09:34 AM

Hai,

I have cad 3d model for Twisted angel . now i want to do cut 2 Parts from CNC machine. so. i Need development Sheet Metal from inventor. if anybody Know Please advise how to model in inventor

Regards,
BSB

Built Up Angle-Sample File.dwg

1 Answer

Carlos J. Veloso
Carlos J. Veloso
Answered on 20 Mar, 2025 11:59 PM

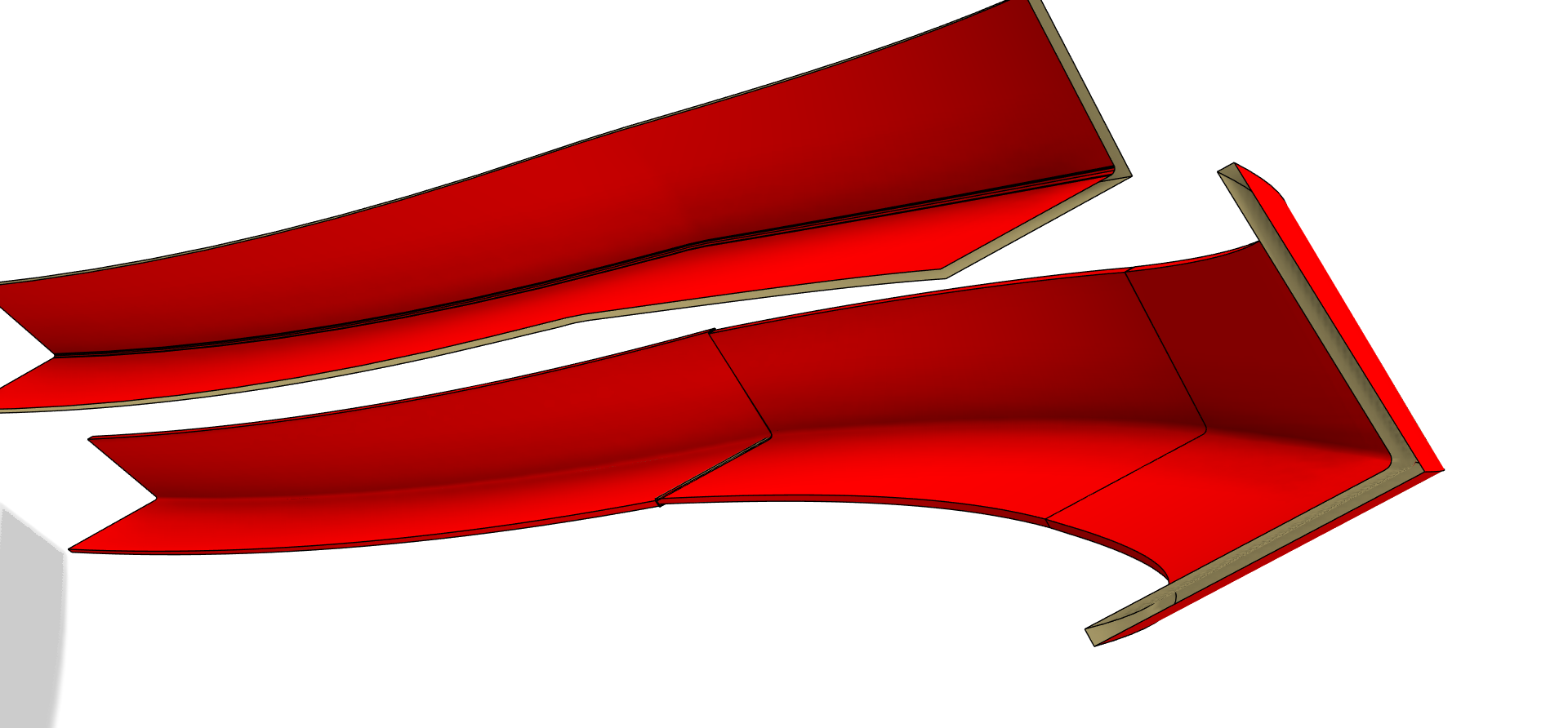

The model posted has flaws. It has multiple extra surfaces, it is missing surfaces to turn it into a solid model, and the surfaces are not properly blend. See the attached image.
And by the way, your part is over 50 meter in length, how do you plan to fabricate or make such part?

Built Up Angle-Sample File.png Built Up Angle-Sample File.png
