i want to convert this silencer cone to sheet metal

Moen Uddin
Moen Uddin
2 Jul, 2012 08:11 AM

Please help me quickly beacuse i want to make a die by this design

Silencer_conical_design.rar

2 Answers

John Sahov
John Sahov
Answered on 2 Jul, 2012 06:30 PM

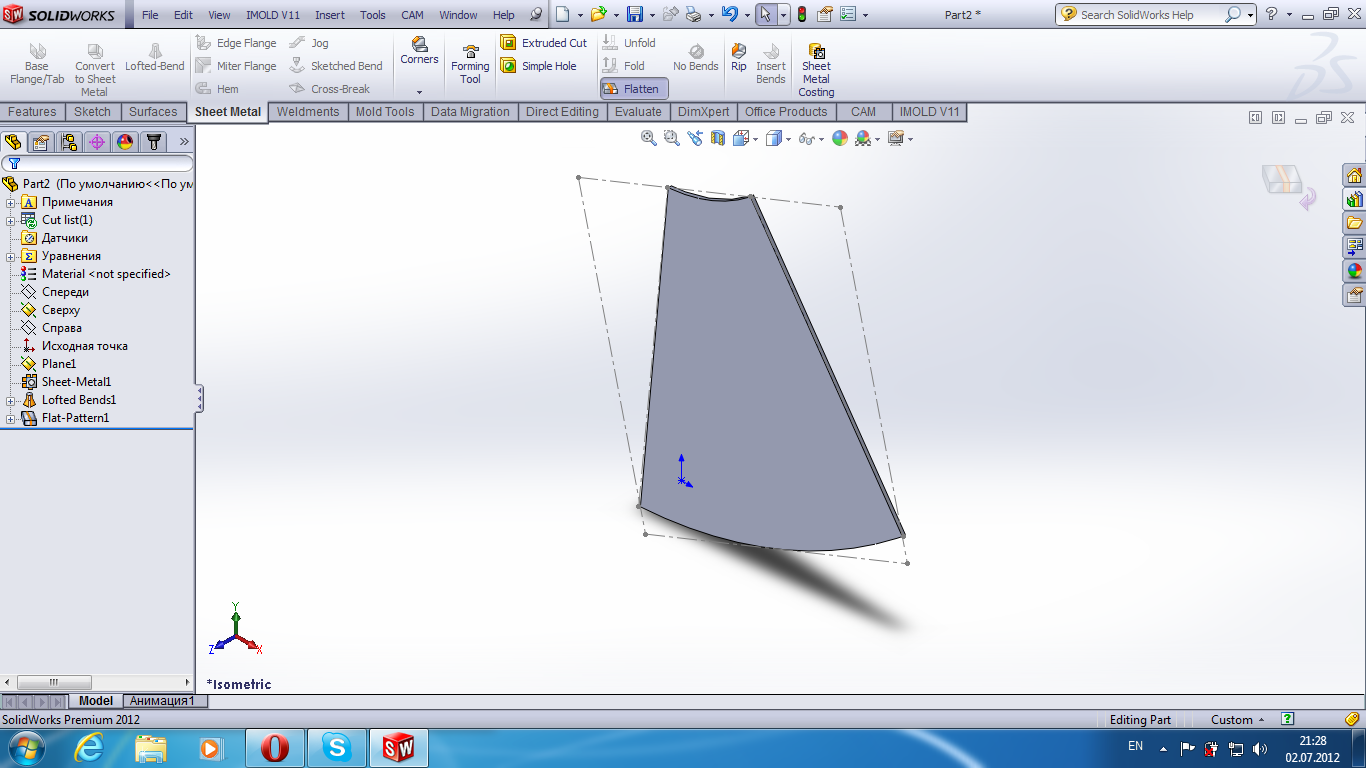

my solution, you know better use Sheet tools.

sheet.png sheet.png sheet.SLDPRT
Dick Lowe
Dick Lowe
Answered on 3 Jul, 2012 12:29 AM

Uploader didn't work for me so I created a new part for you.

http://grabcad.com/library/silencer-cone-to-sheet-metal-q-a-request
