Part orientation & pattern in Multibody in solidworks

lololamoto
lololamoto
22 Jun, 2025 08:18 AM

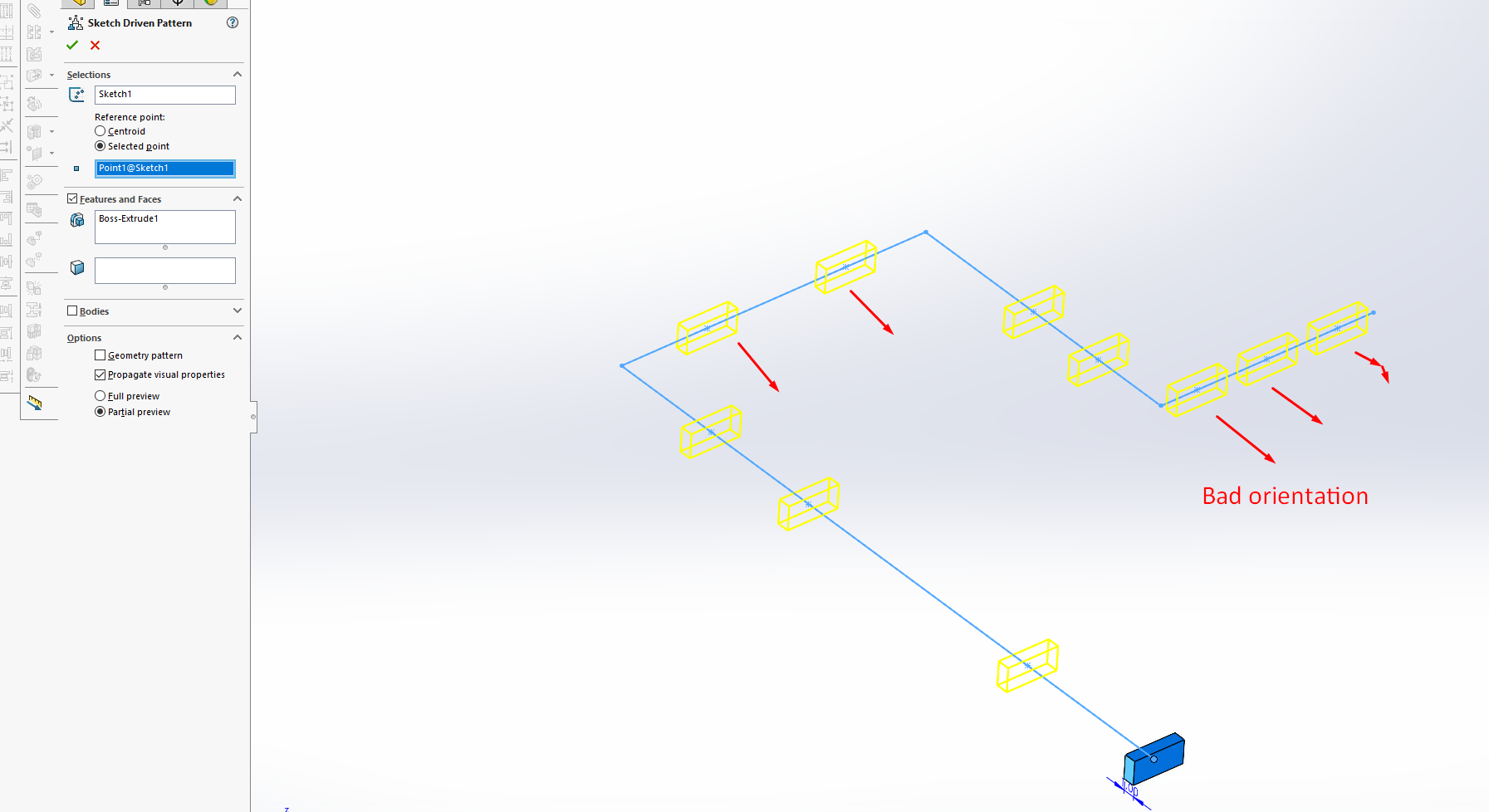

Hello, I'm wondering how to get a body to be patterned along a path while keeping the orientation and using the point to drive the pattern.

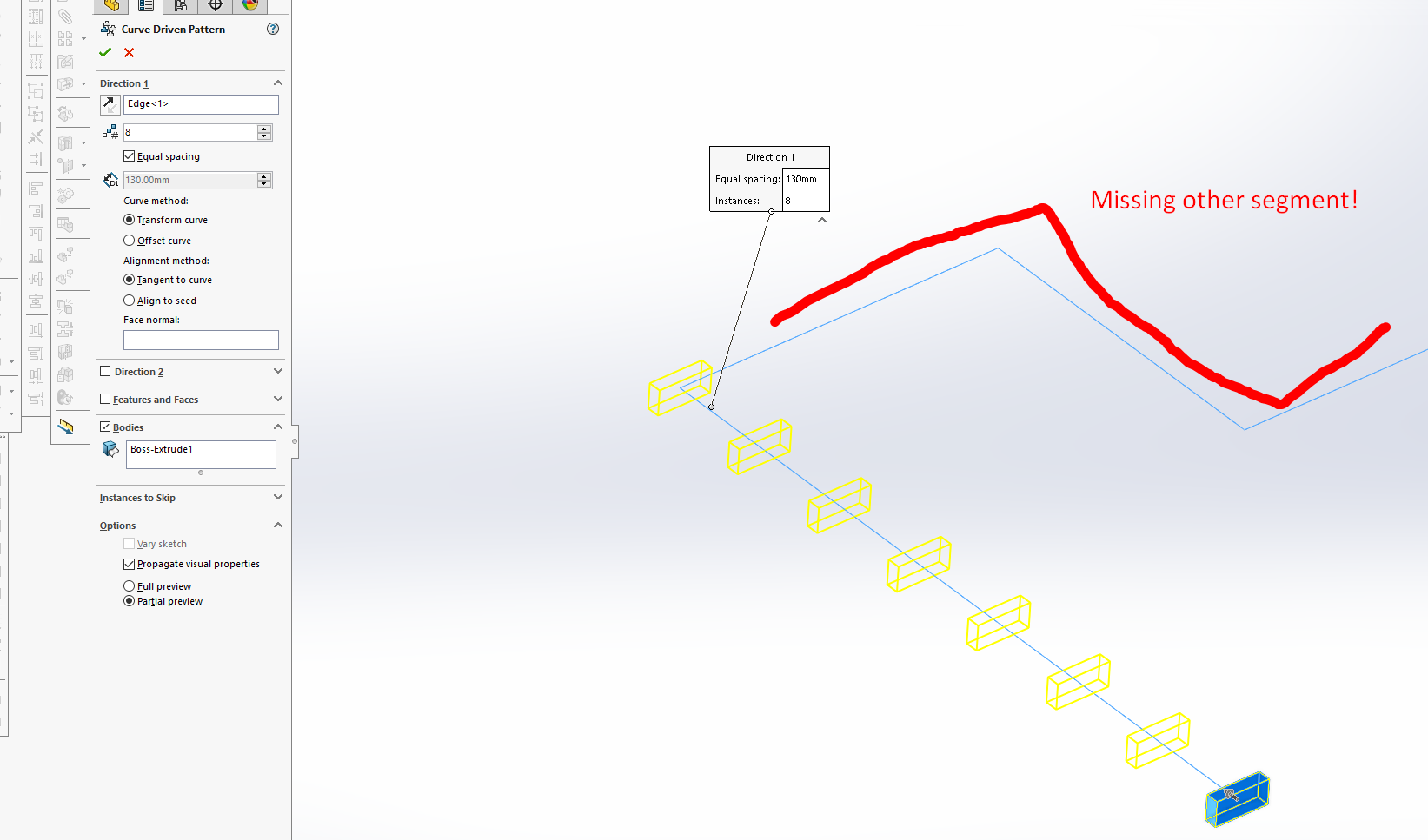

Composite curve ignore the following segment (only the first straight line is working), and Composite curve cancel the segment, so no more point to drive the pattern

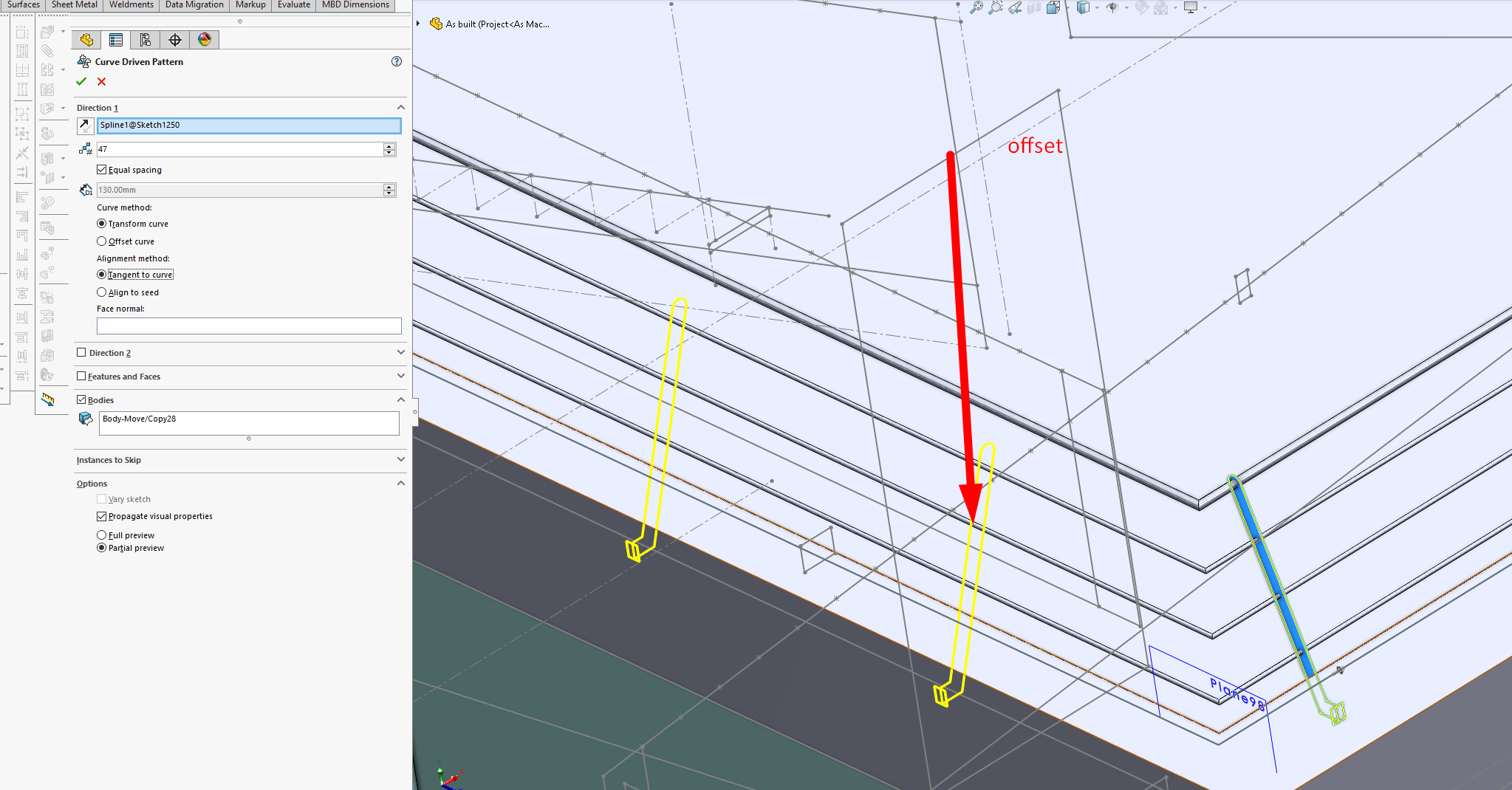

I then try a fit curve, but the position can't be control using point.

Fit curve.png Fit curve.png Part along path orientation.png Part along path orientation.png Part along path orientation composite curve.png Part along path orientation composite curve.png
