Ball Bearing Modeling...

Edgar Gidoni
18 Jul, 2021 11:57 PM

Small tutorial on how to model a Ball Bearing (SKF 6003). (Without the cage)
You can download the 3D files here:
SKF Ball Bearings Selection
Ball Bearing Selection
FAG 61800 Ball Bearing

  1. Step 1: First... The Technical data...



  2. Step 2: First Sketch & Revolving...



  3. Step 3: Modeling the First Ball...

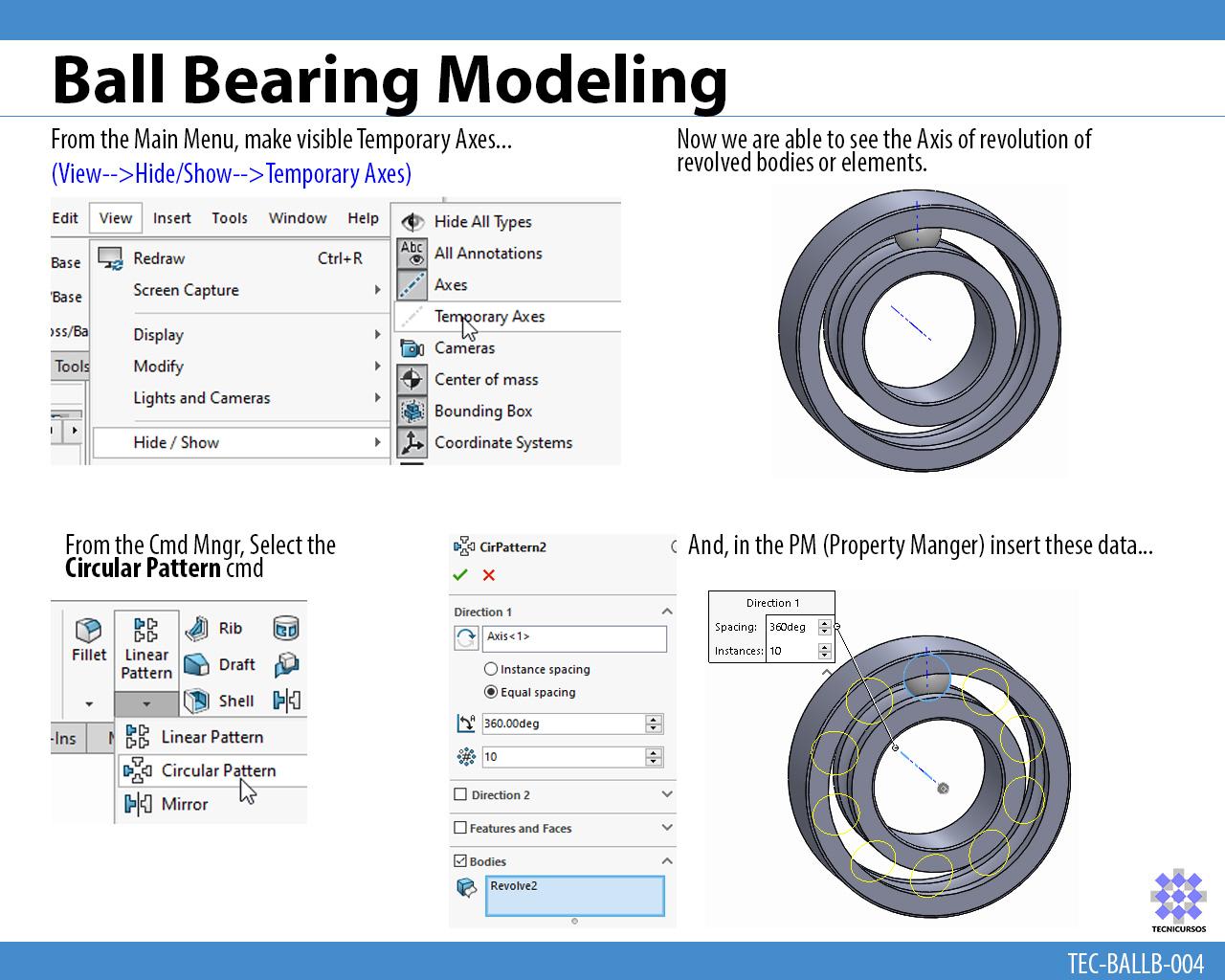

  4. Step 4: Circular Pattern to model all balls...

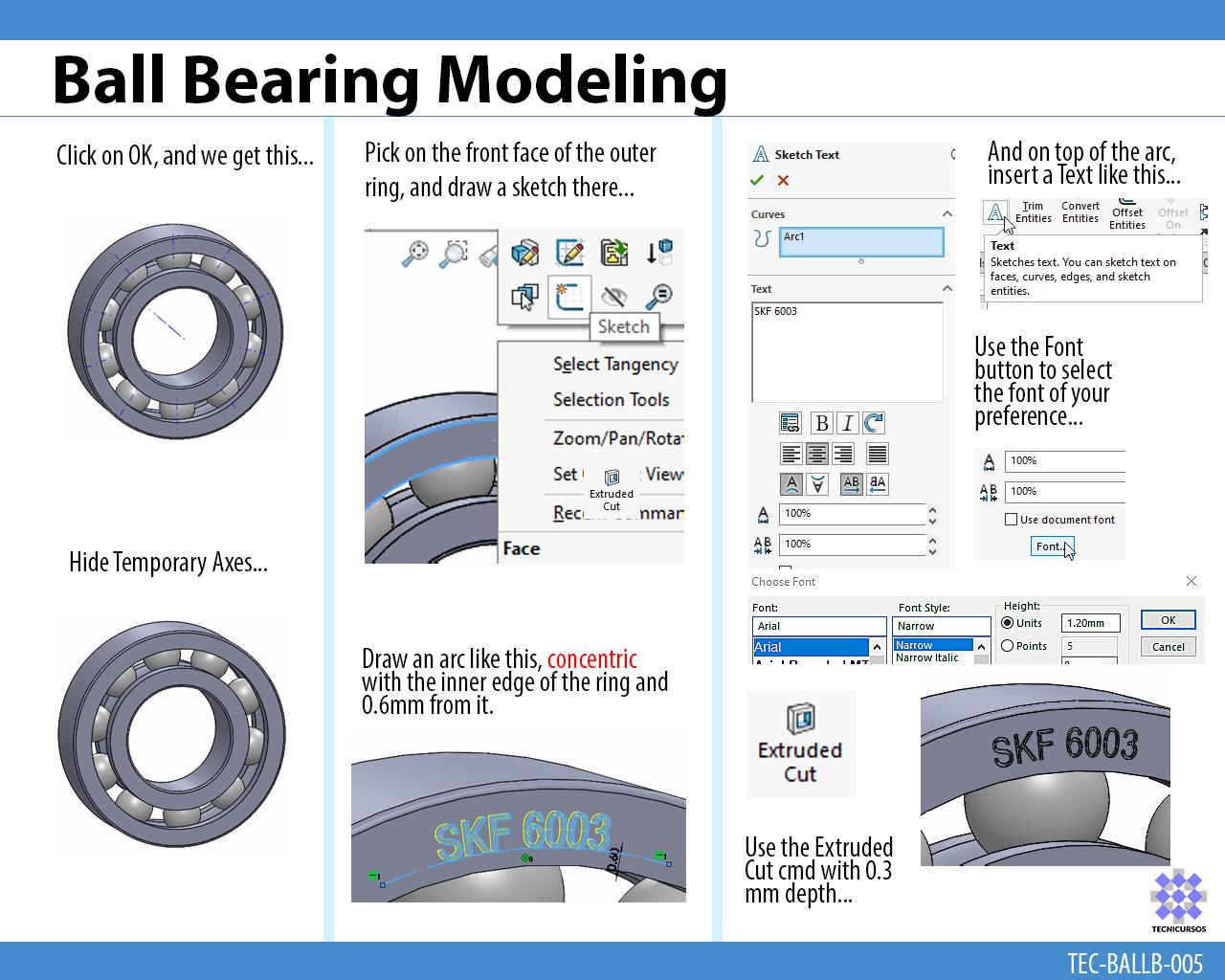

  5. Step 5: Engraving...



  6. Step 6: The End...(Some rendering)
