Fine Watch Modeling Break Down

Edgar Gidoni

13 Jun, 2021 04:28 PM

Breakdown of the modeling process of a luxury wristwatch.

The SLDPRT file is available at:
Fine Watch

Enjoy.

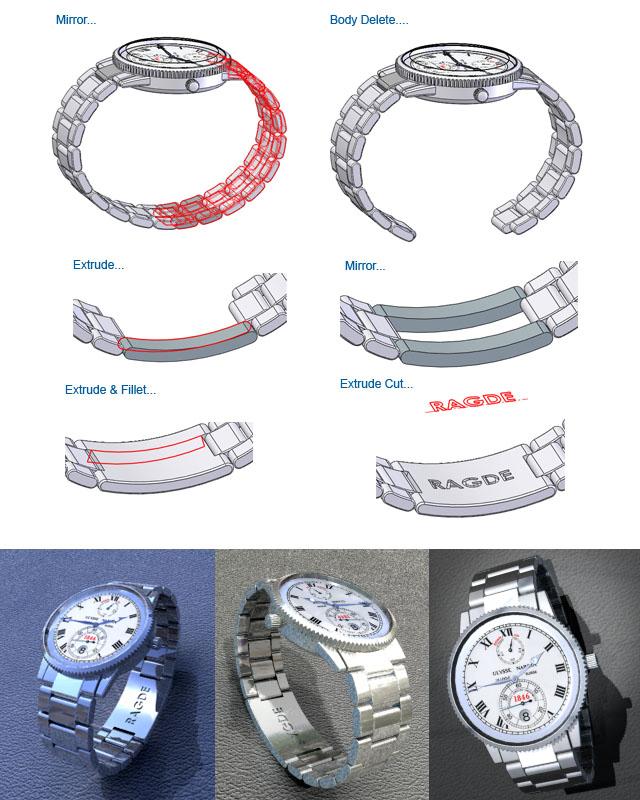

1. Step 1: Design Break Down Pag. 1

   It is important to know that we started modeling using an image of the watch.

   with some preliminary data. Like this one...






   We started in this way...

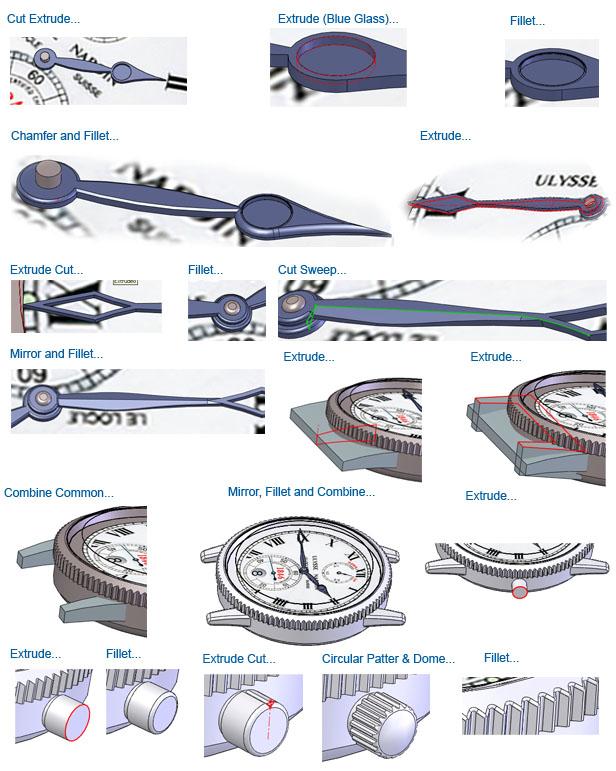

2. Step 2: Design Break Down Pag. 2









3. Step 3: Desing Break Down Pag. 3

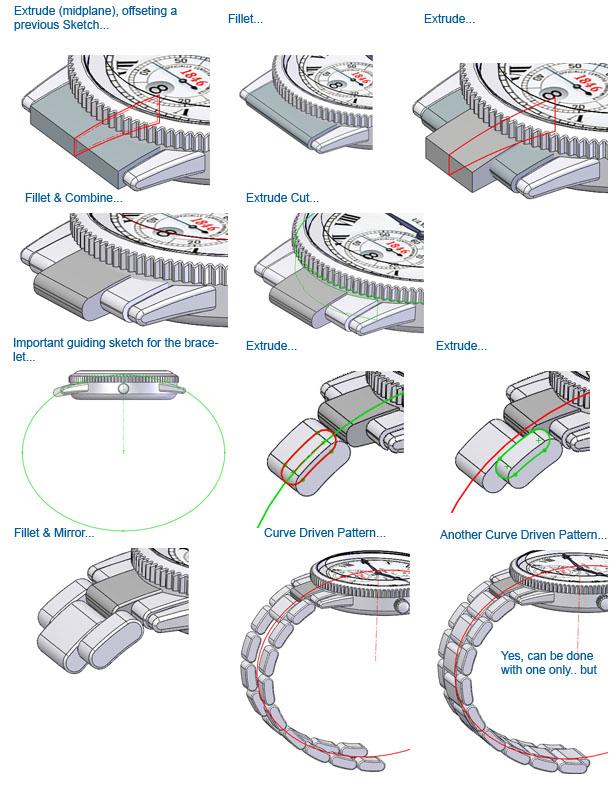

4. Step 4: Desing Break Down Pag. 4









5. Step 5: Some Renderings









6. Step 6: Final Words.

   Remember that this is only a DBD (Design Break Down) of the model.

   The ideal situation is to check on the SLDPRT along with this DBD to get all de details.




   Glad to be of help.




   See you soon!
