How do you design AutoCAD diamonds?

22255d73

4 Nov, 2016 06:51 PM

A short diamond design with AutoCAD 2010

1. Step 1:

   We first draw two pentagonal drawings side by side.




2. Step 2:

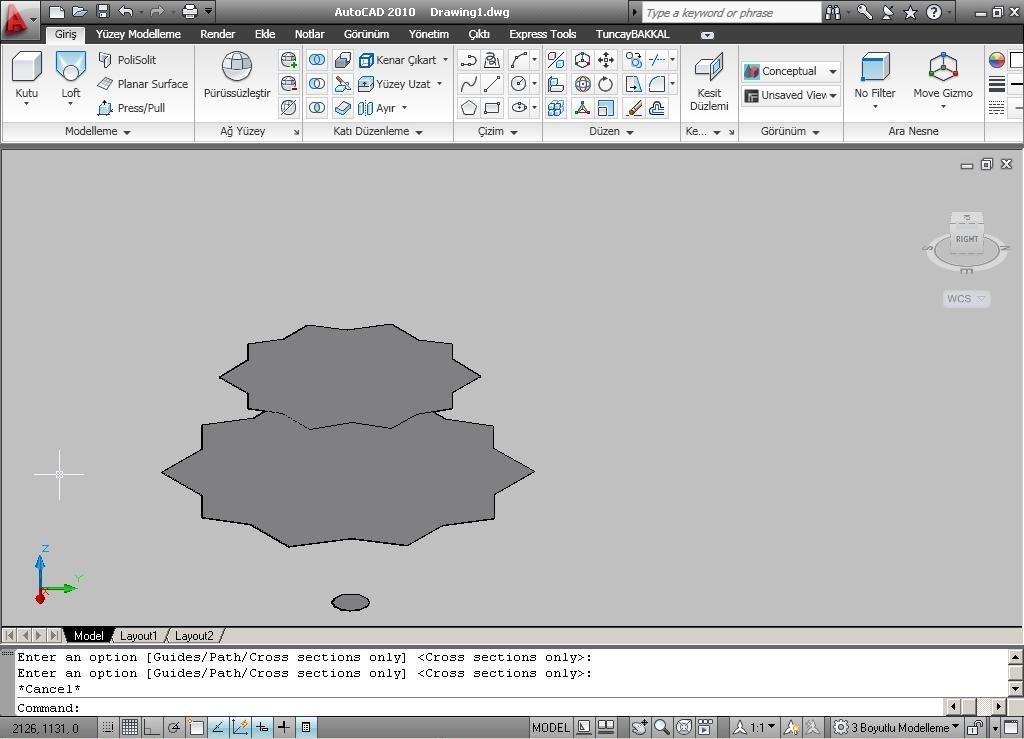

   Then we put these pentagons on top of each other, we trim some points.




3. Step 3:

   Where our next step is to make it a solid model.




4. Step 4:

   Here passing through solid modeling,
   We make our drawing solid.




5. Step 5:

   We are drawing a circle at a distance suitable for your solid model.




6. Step 6:

   And comes to the position it sees




7. Step 7:

   We see that the parts in our model interact with each other and become diamond.




8. Step 8:

   Finally, when the render is taken here, our diamond is completed.
