Scissor Arm 2

Faris Pasya

7 Jun, 2022 03:25 AM

Scissor Arm 2 tutorial for Swiss Army Knife

1. Step 1:



   Make a rectangle with height is 78 mm and the width is 11.5 mm. after that draw straight line from the bottom with length 6 mm and than draw a straight line with a half circle in the middle with radius 5.1 mm and at the end of the line make a curve with radius 24 mm. and than make straight line to the bottom with length 30,75 mm and than make a corner with angle 25 mm and make straight line again with length 15.15 mm and than make a curve like a puple line in the picture and after that make a straight line to the bottom.

2. Step 2:



   Extrude the Scissor arm with distance 1,6 mm

3. Step 3:

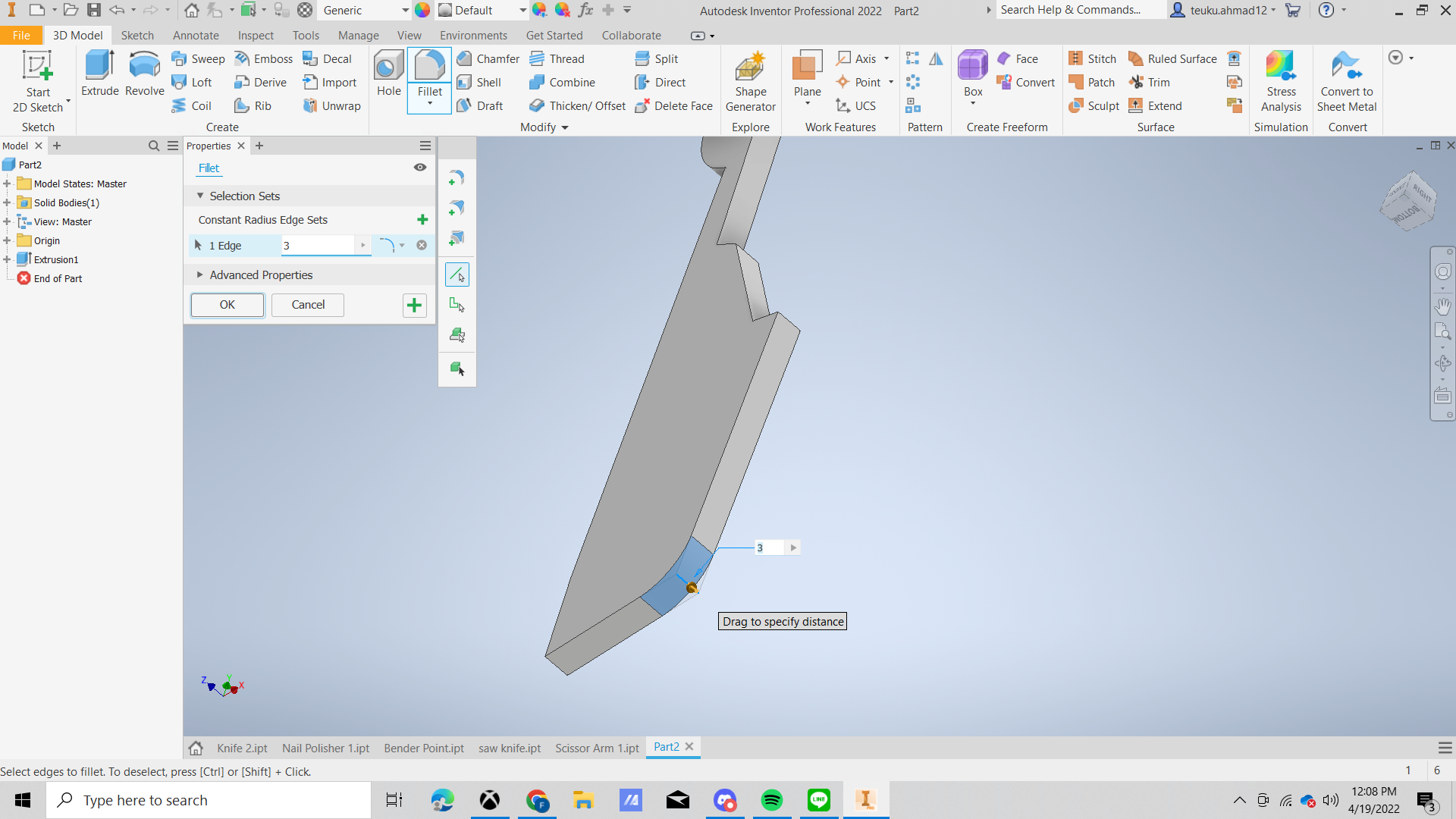

   Fillet the edge like in the picture with radius edge is 3 mm




4. Step 4:

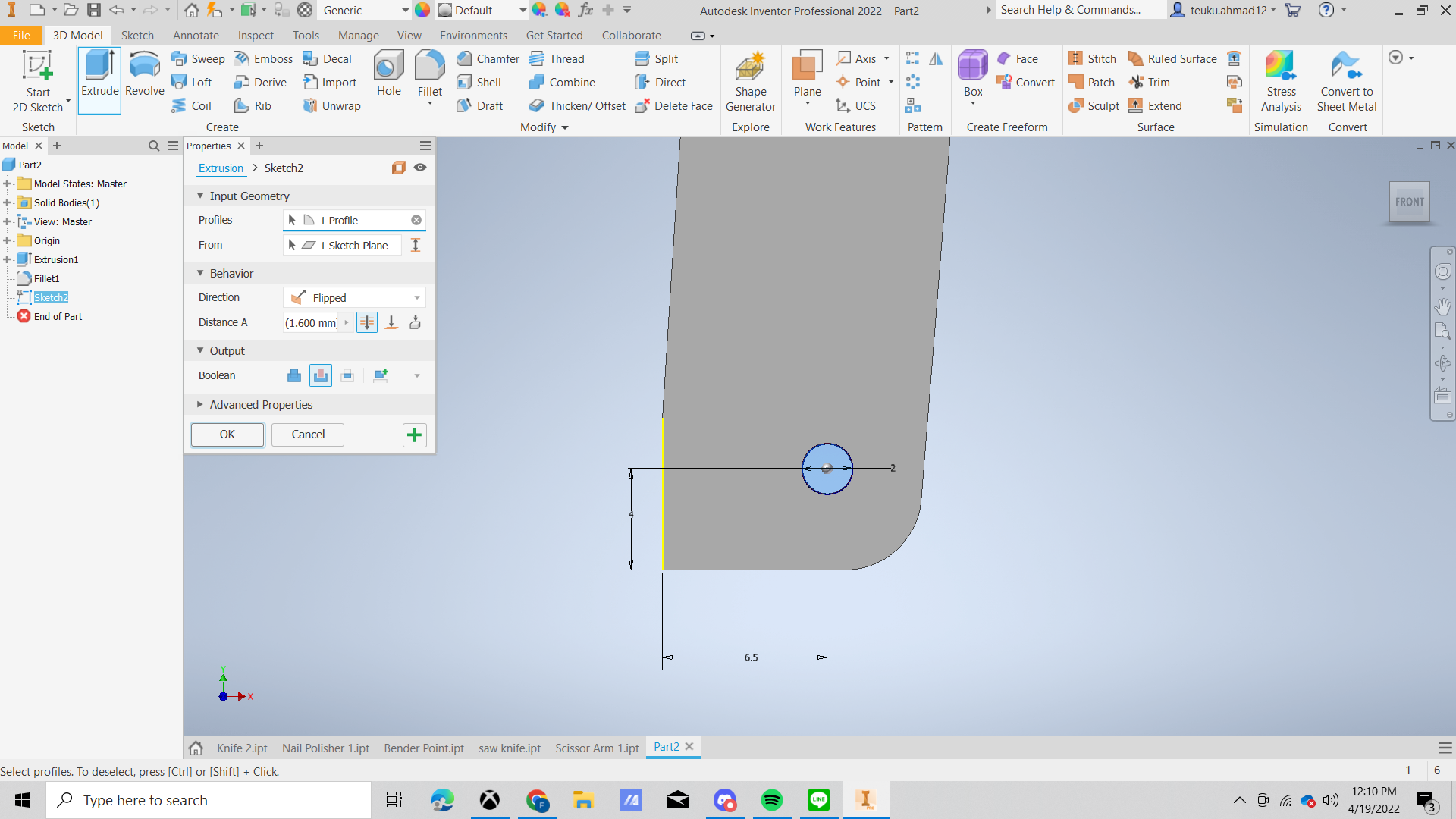

   After that make a circle with radius 2 mm and the distance from the left line is 6,5 mm and the distance from the bottom line is 4 mm

5. Step 5:



   Make circle in the middle of the scissor with radius 2 mm. and also make a small rectangle like in the picture




6. Step 6:



   And than trim the half rectangle until it looks like in the picture




7. Step 7:



   Extrude the circle with direction is flipped and the distance is 1.6 mm




8. Step 8:

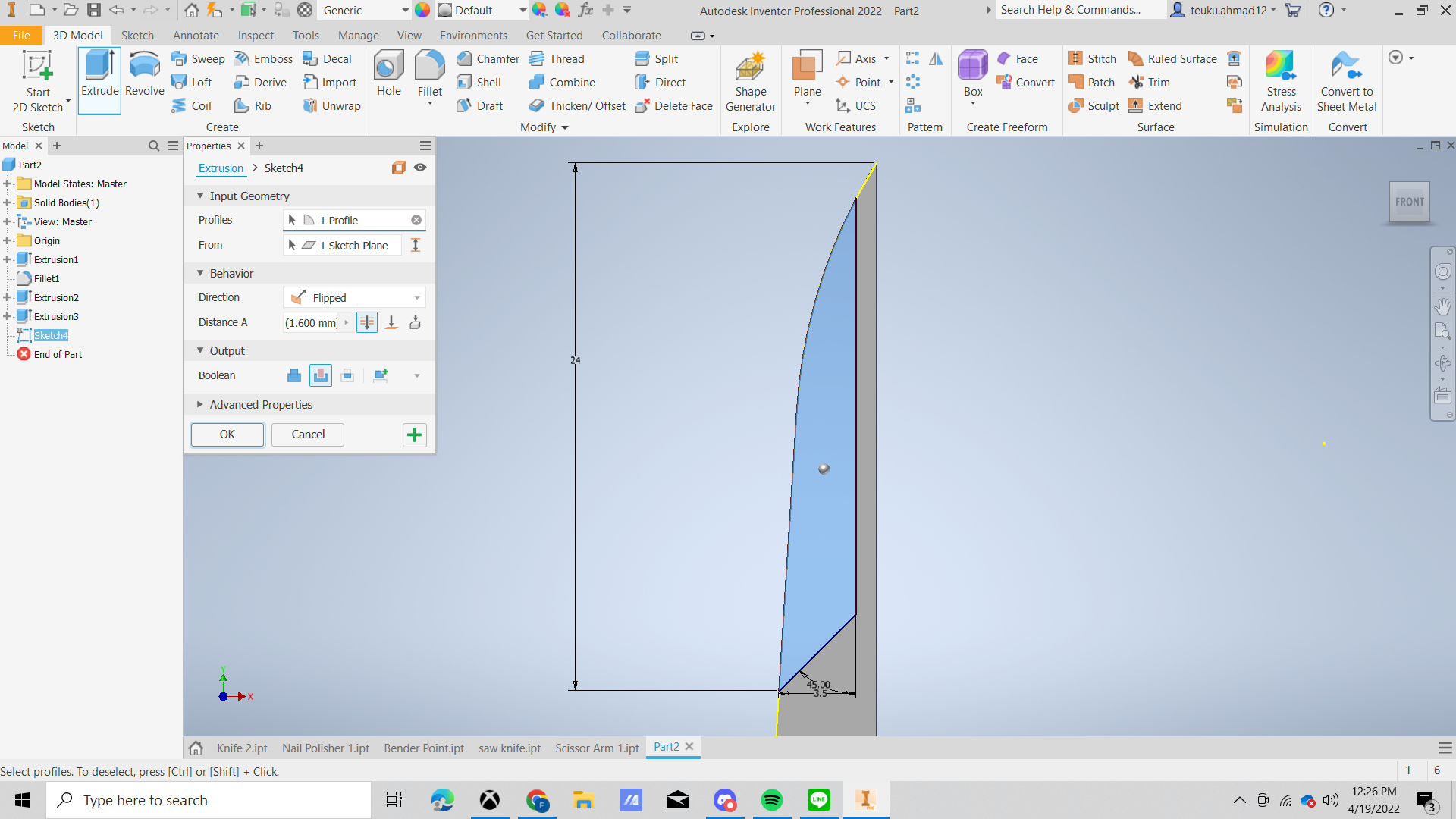

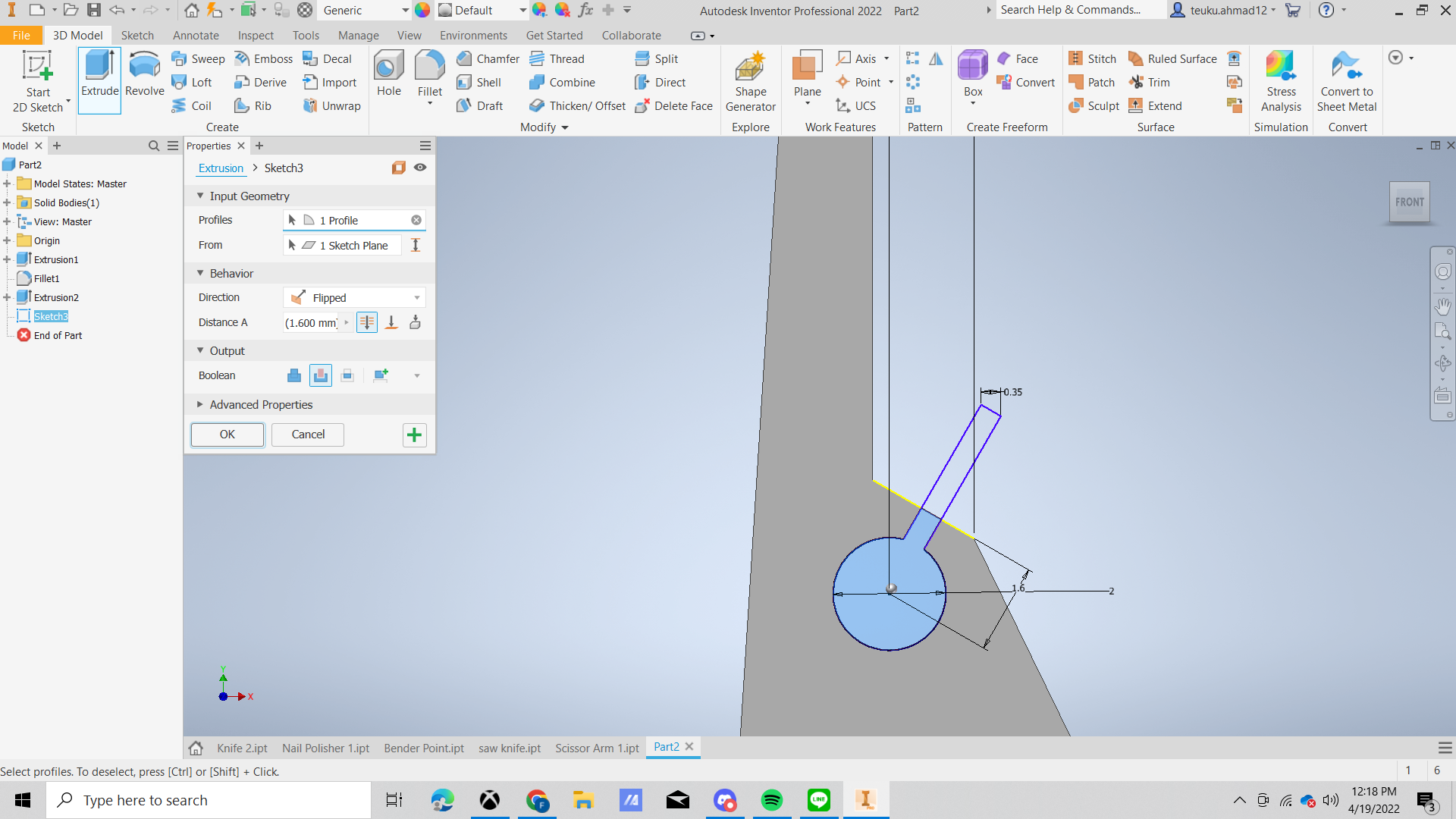

   And than draw a line like in the pictire and make corner with angle 45 degree like in the picture




9. Step 9:



   Extrude the section with the direction is flipped and the distance is 1.6 mm




10. Step 10:

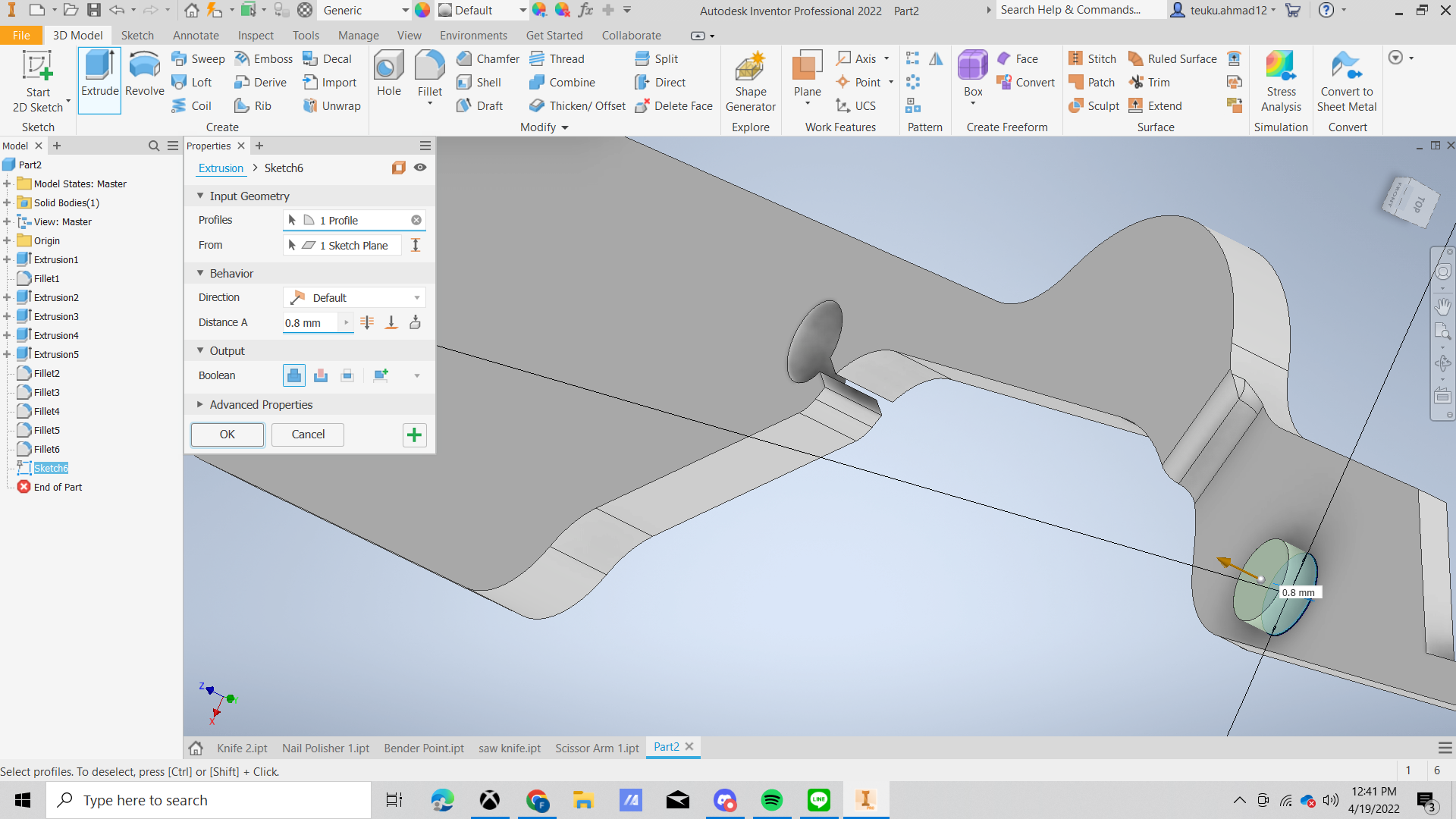

    After that make a rectangle like in the picture and extrude with distance 0.8 mm




11. Step 11:





    Fillet the edge like in the picture. in the picture 1 the radius edge is 3 mm and the picture 2 the radius edge is also 3 mm







12. Step 12:

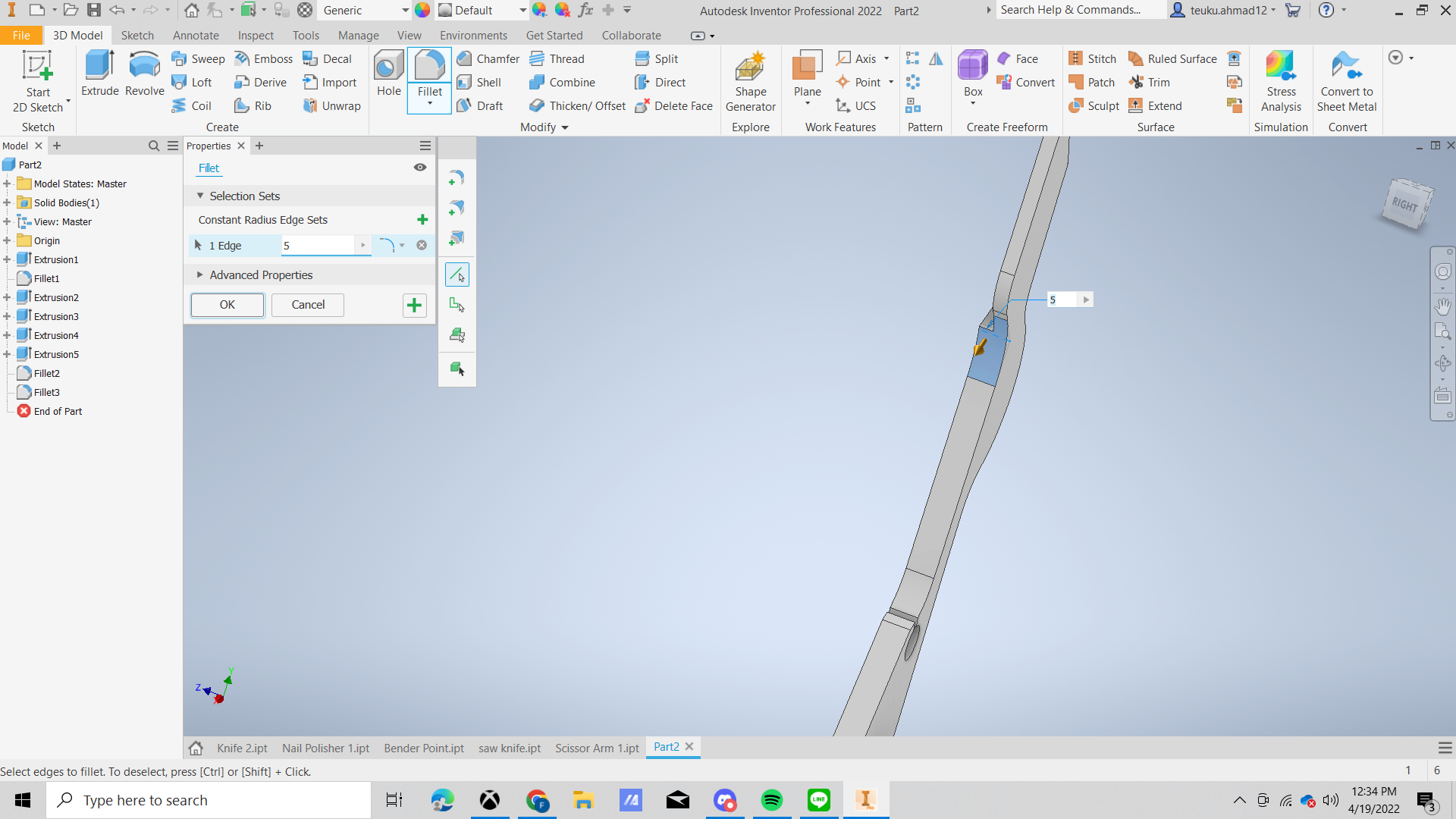

    Fillet the edge like in the picture. in the picture 1 the radius edge is 5 mm and the picture 2 the radius edge is 0,4 mm







13. Step 13:



    make circle like in the picture with radius 2 mm and then extrude with distance 0,8 mm

14. Step 14:



    Make a small rectangle with height 8 mm and the width is 3,5 mm and then extrude with distance 1,6 mm




15. Step 15:

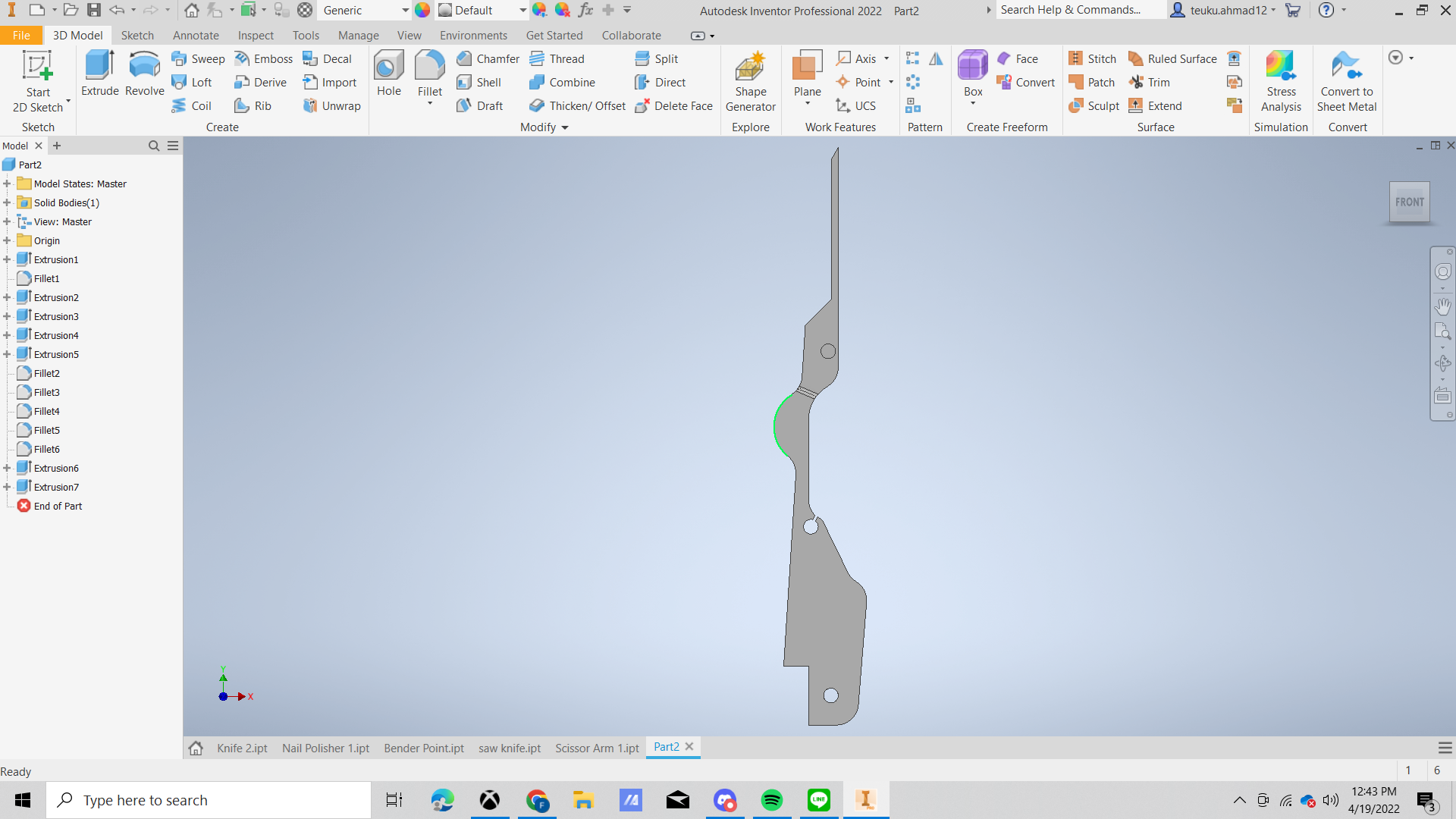

    And the Scissor Arm 2 is done
