Tutorial - Modeling Kunai in SolidWorks?

Sudhir Gill

7 Mar, 2012 06:23 PM

Here is the tutorial.

1. Step 1:

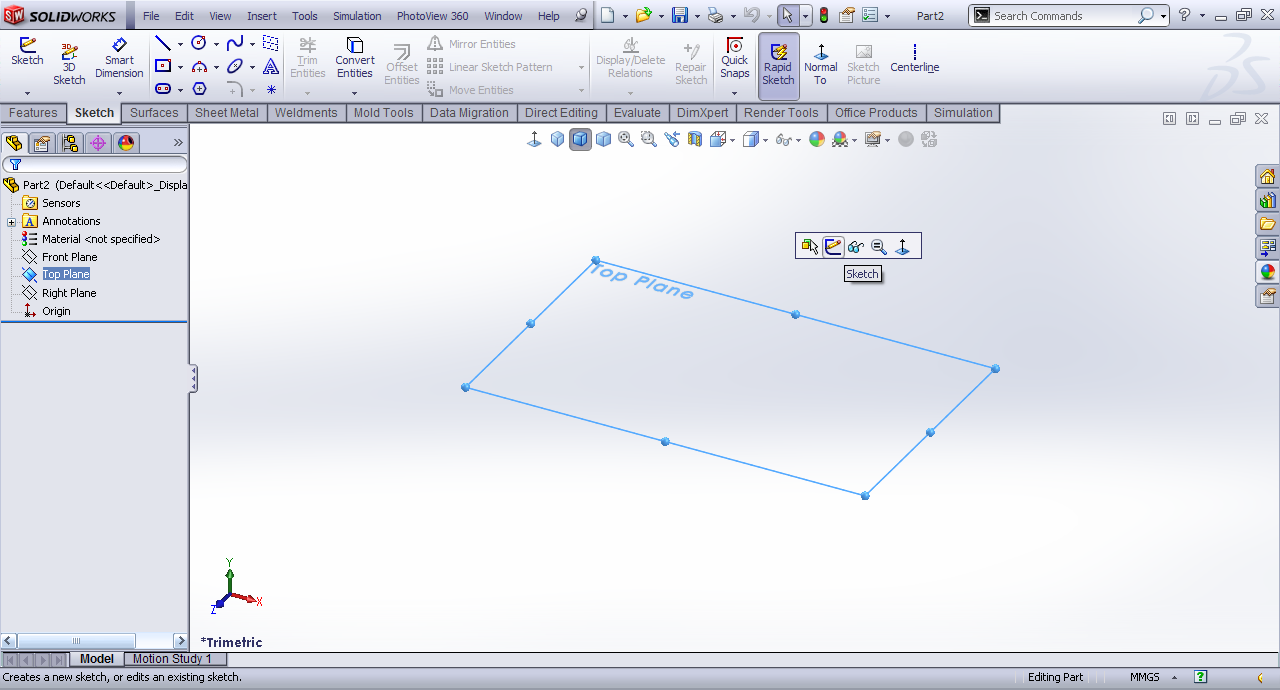

   Top plane >> Sketch.




2. Step 2:

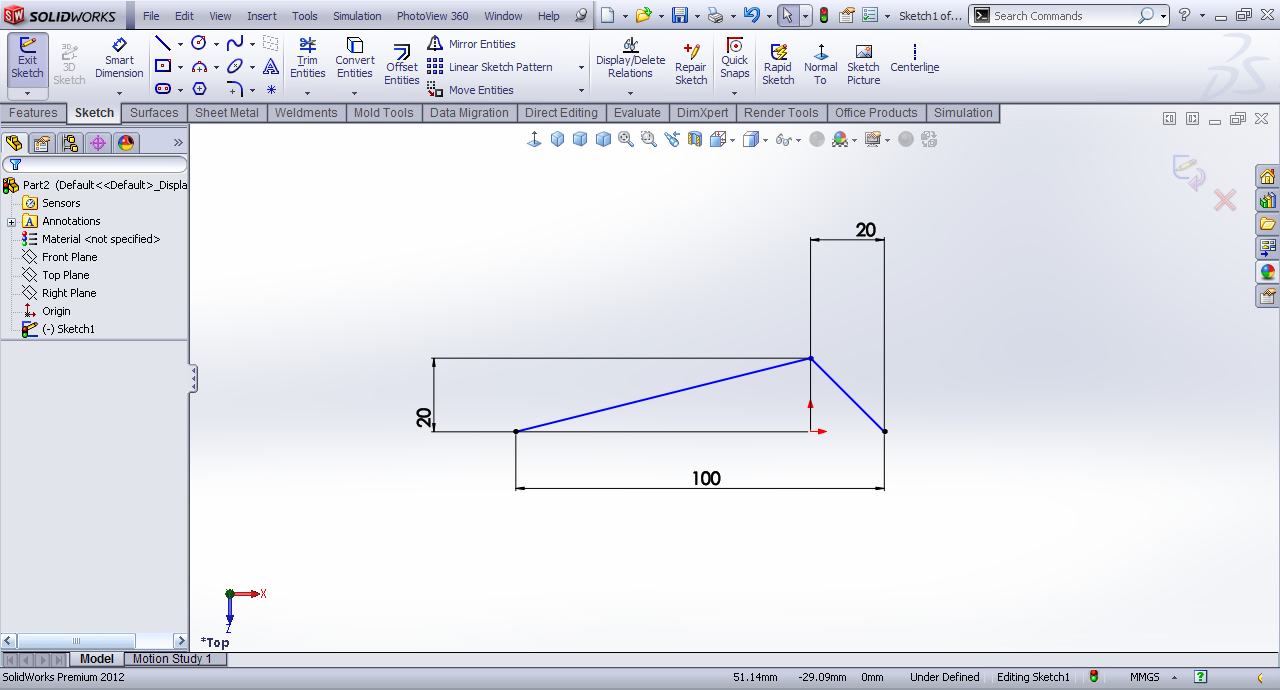

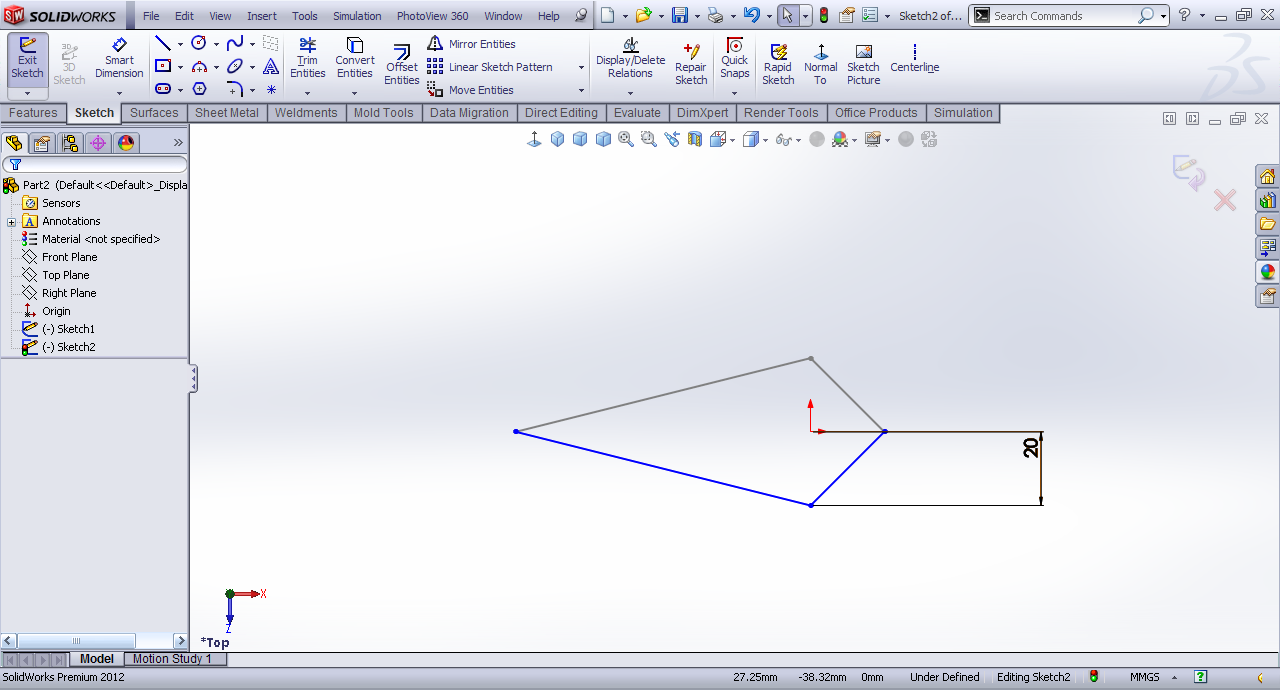

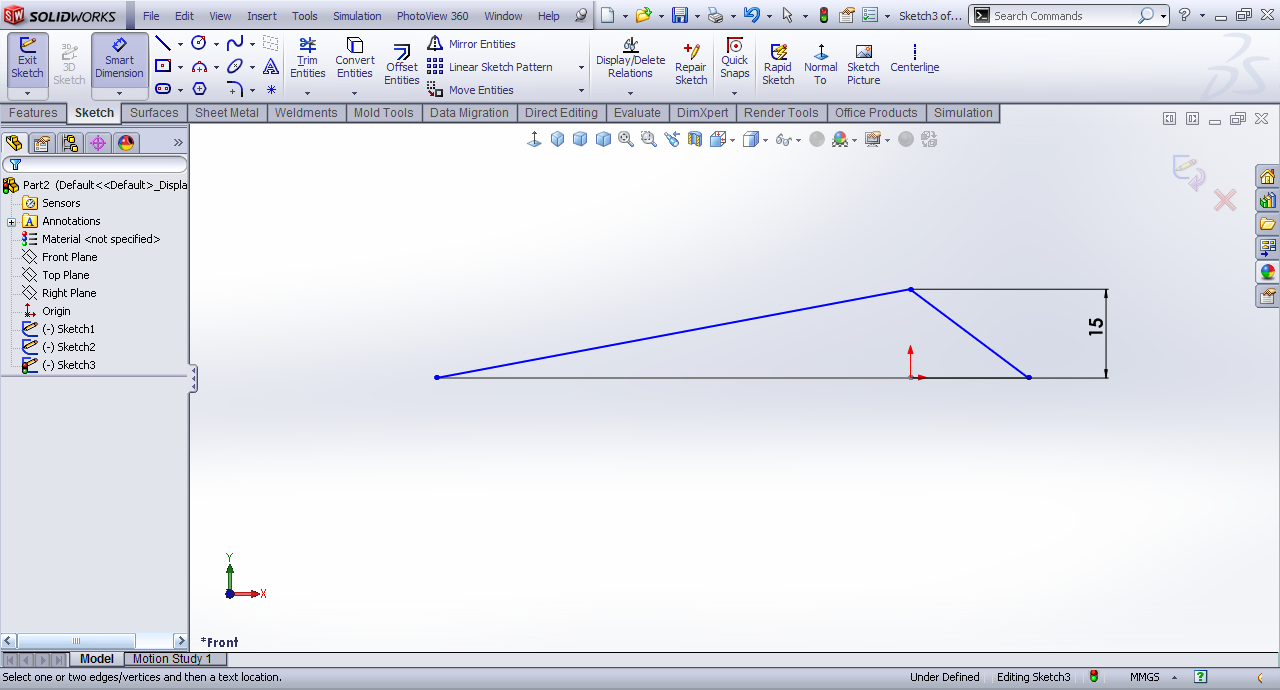

   Draw this profile.




3. Step 3:

   Exit the sketch and then again Top plane >> Sketch. Draw same profile.




4. Step 4:

   Front plane >> Sketch.




5. Step 5:

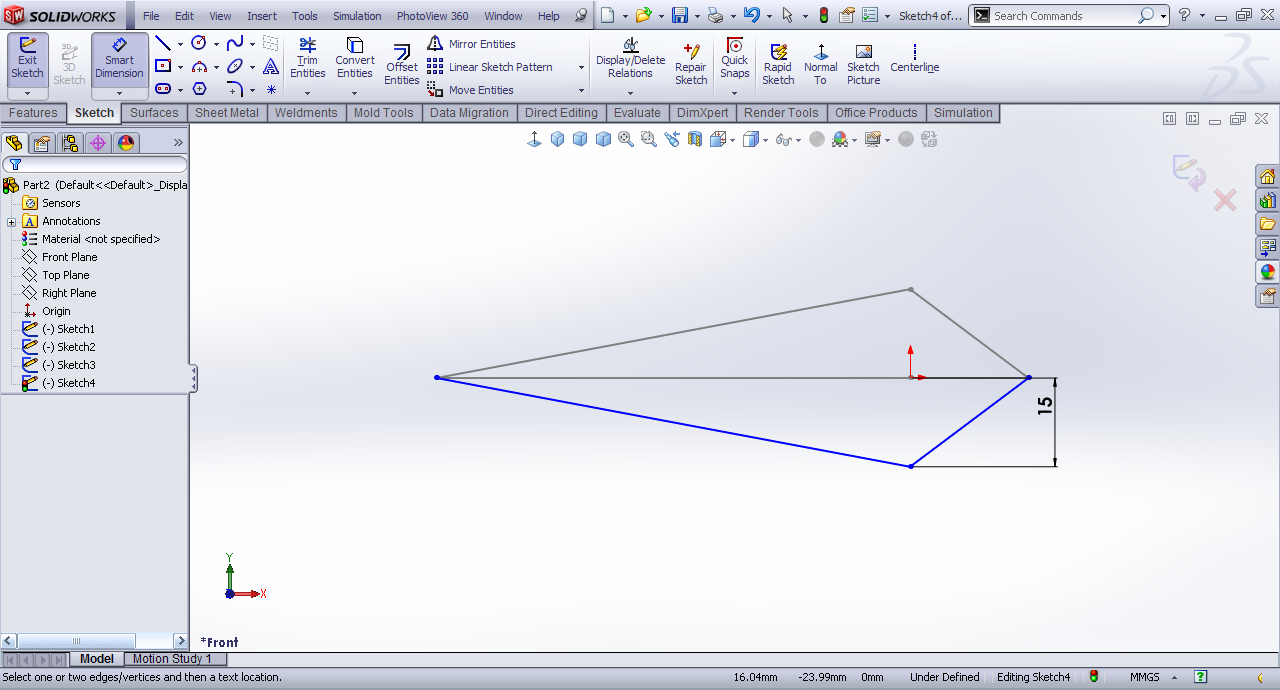

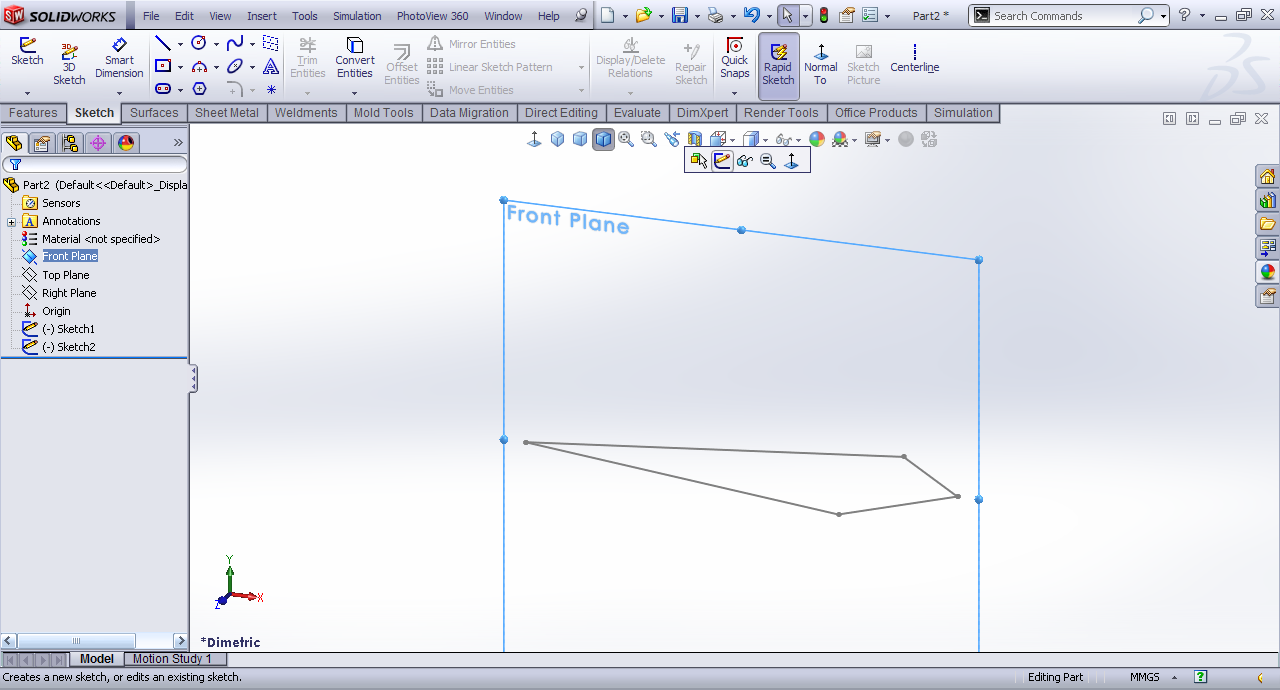

   Draw this profile. Exit the sketch.




6. Step 6:

   Again Front plane >> Sketch and this profile. Exit the sketch.




7. Step 7:

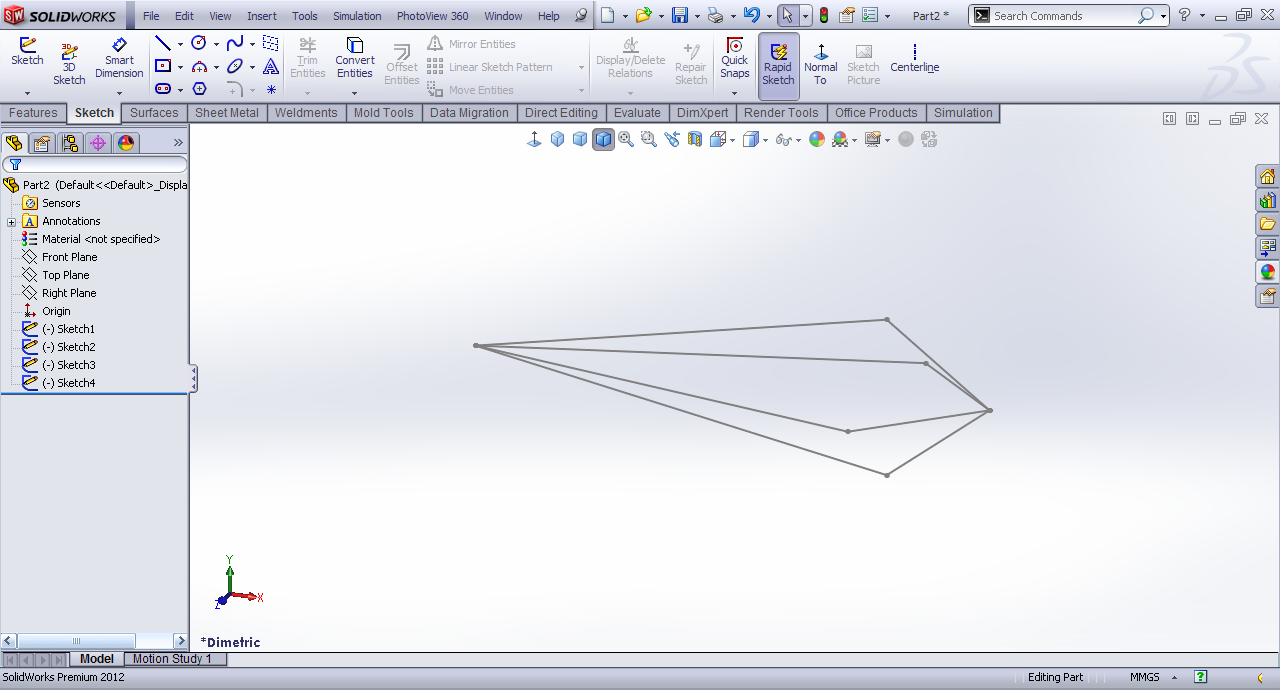

   Now we have four different sketches.




8. Step 8:

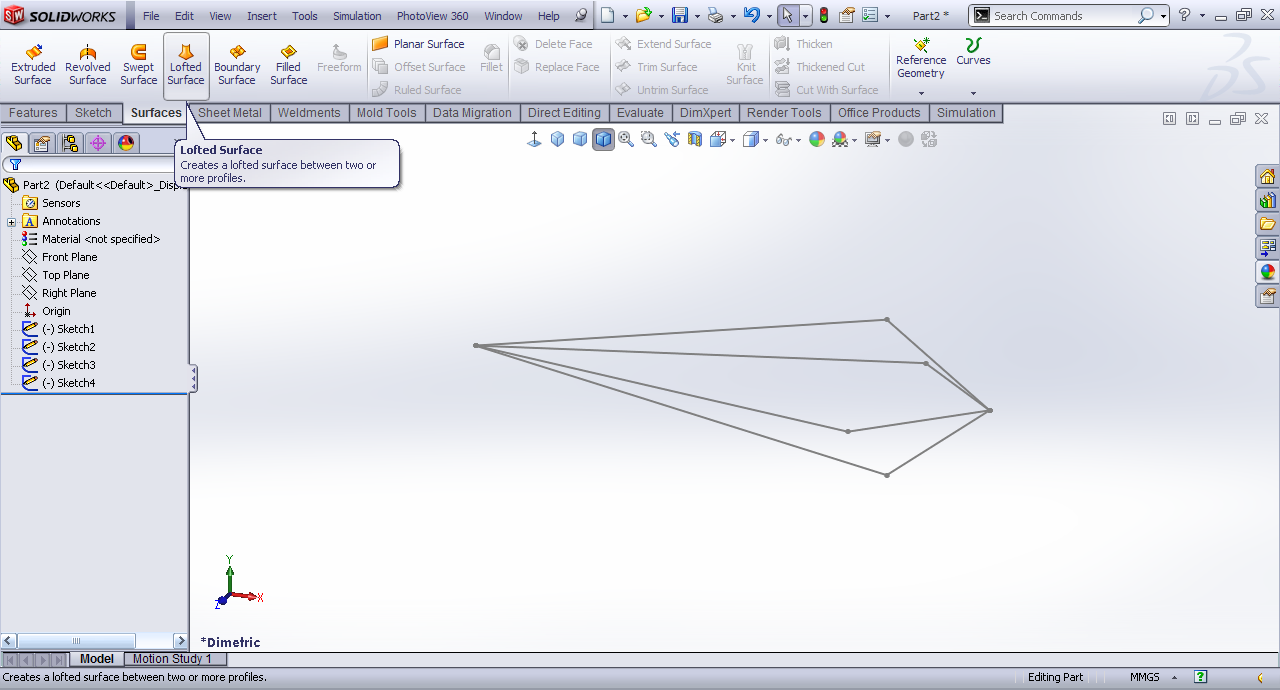

   Click Lofted surface under surfaces tab.




9. Step 9:

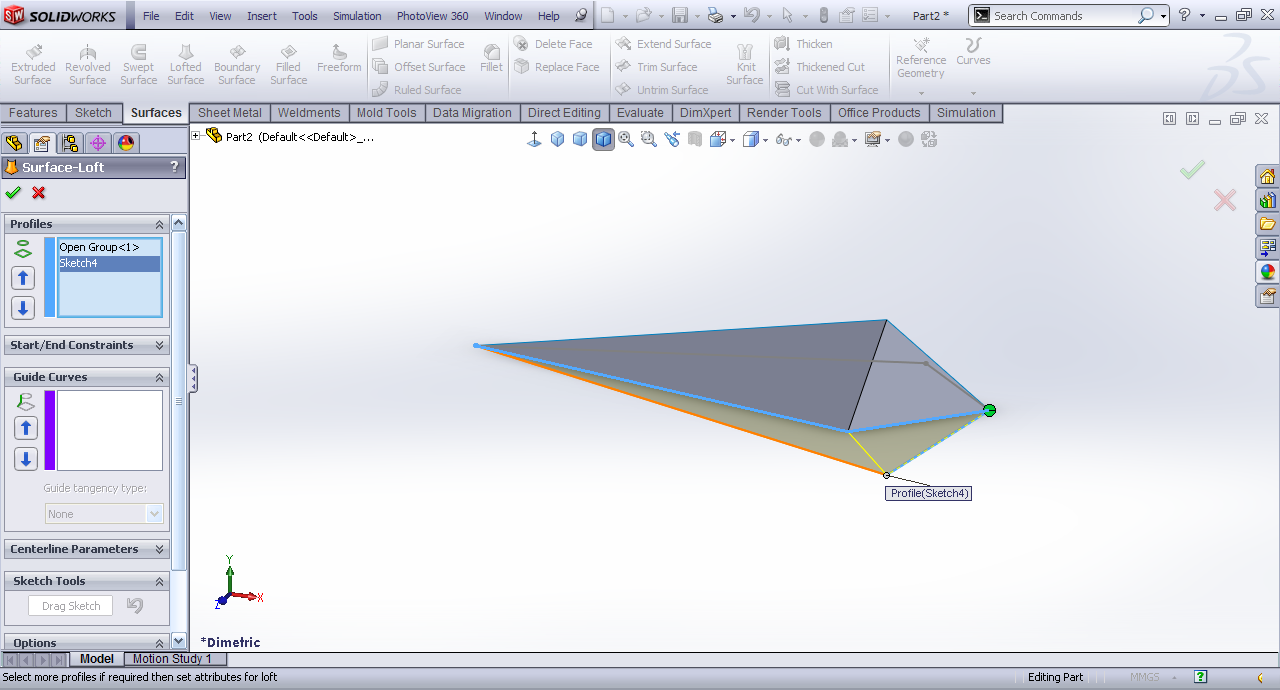

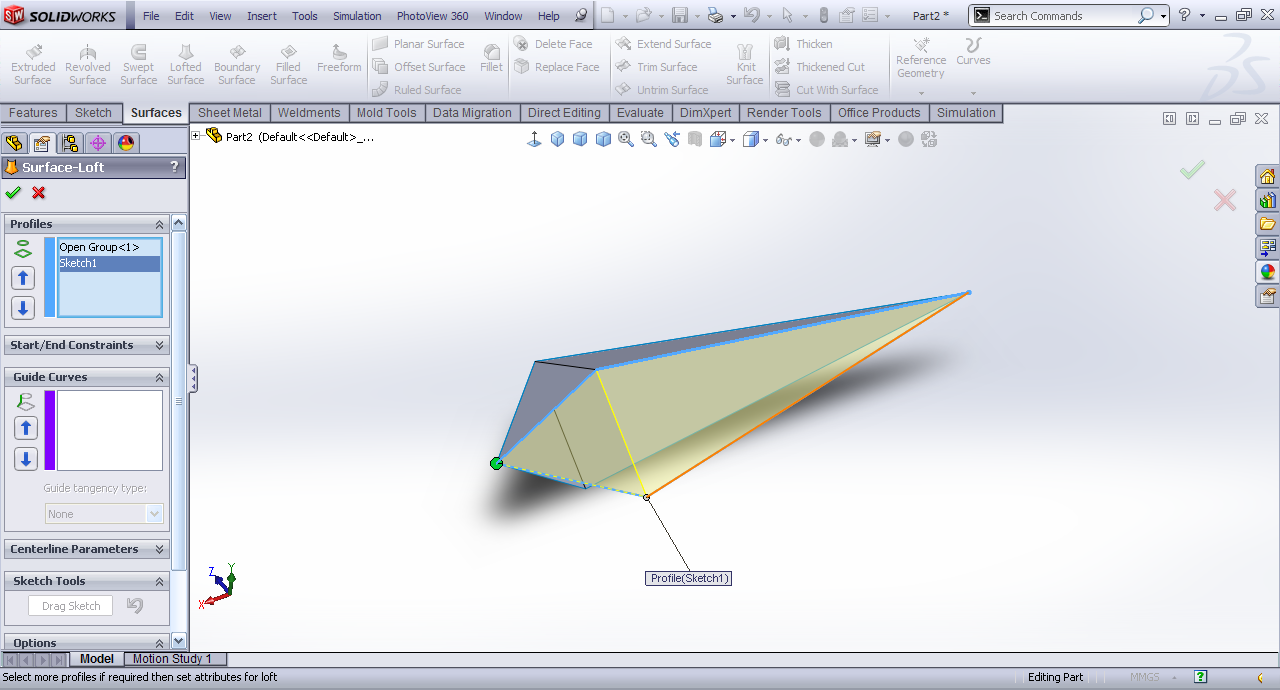

   Select the two sketches. Click OK and the first surface is generated.




10. Step 10:

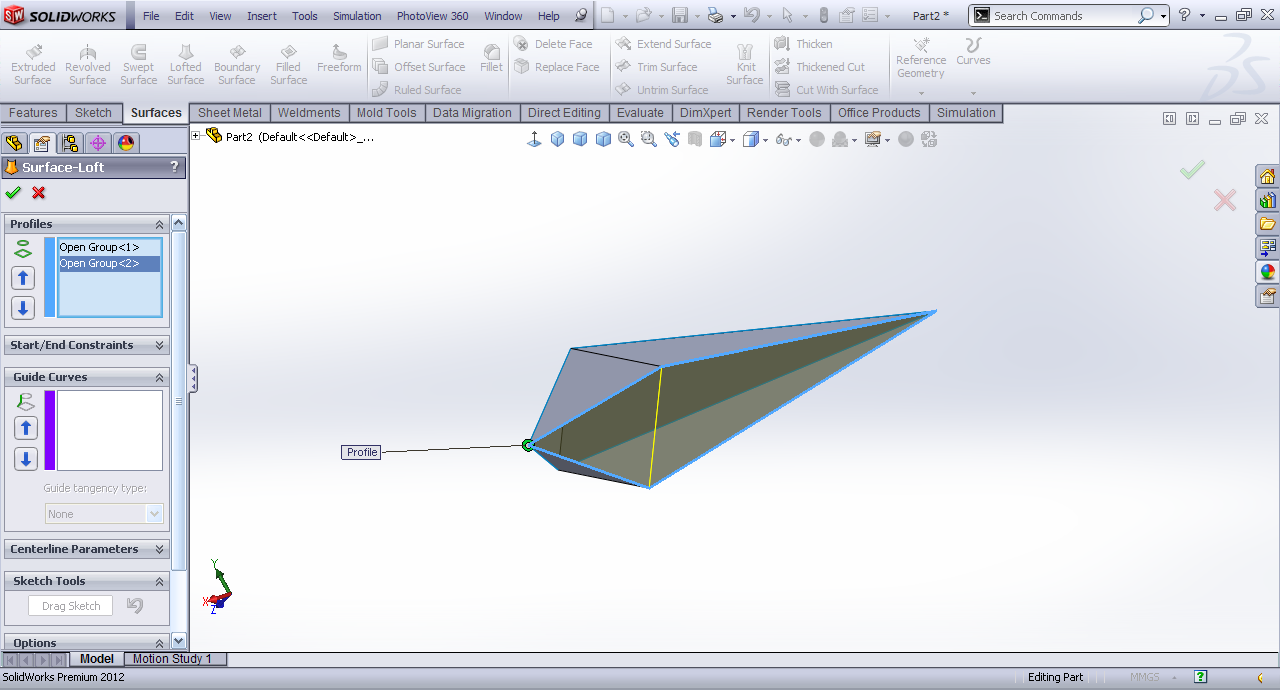

    Now generate a lofted surface b/w the edge of the surface and sketch. Use selection manager to form group.




11. Step 11:

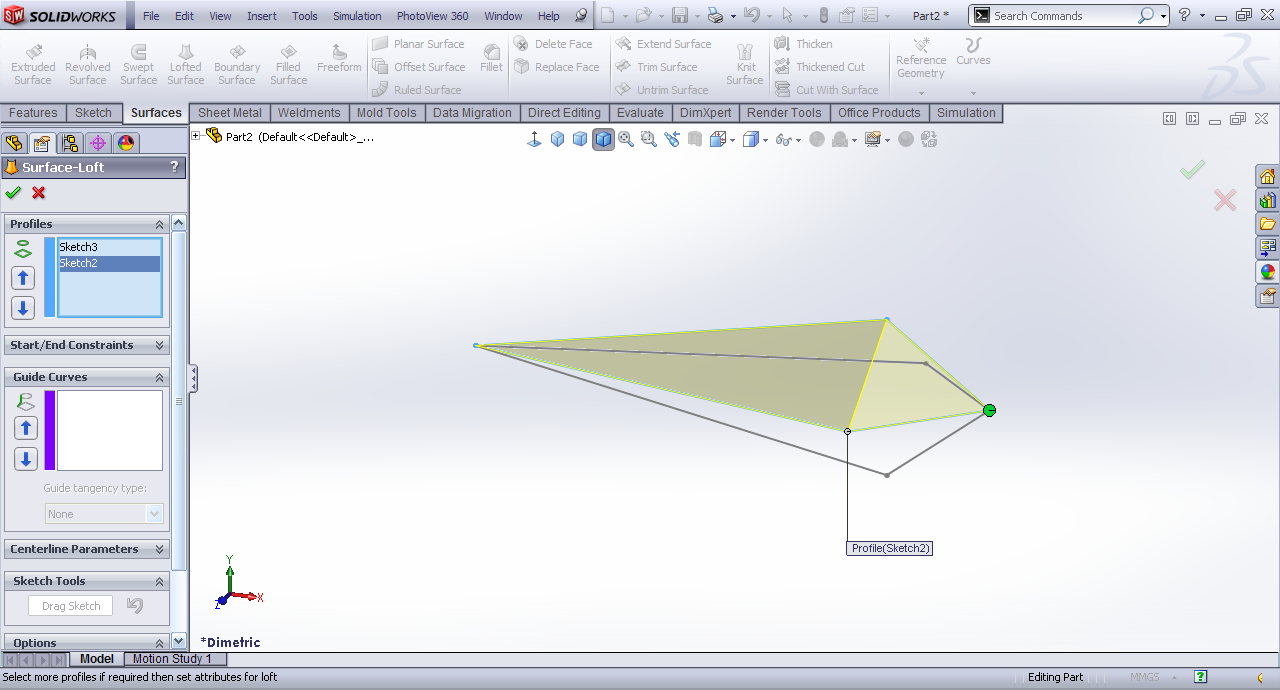

    Again create the 3rd surface with same step.




12. Step 12:

    Final surface with the edges of surfaces.




13. Step 13:

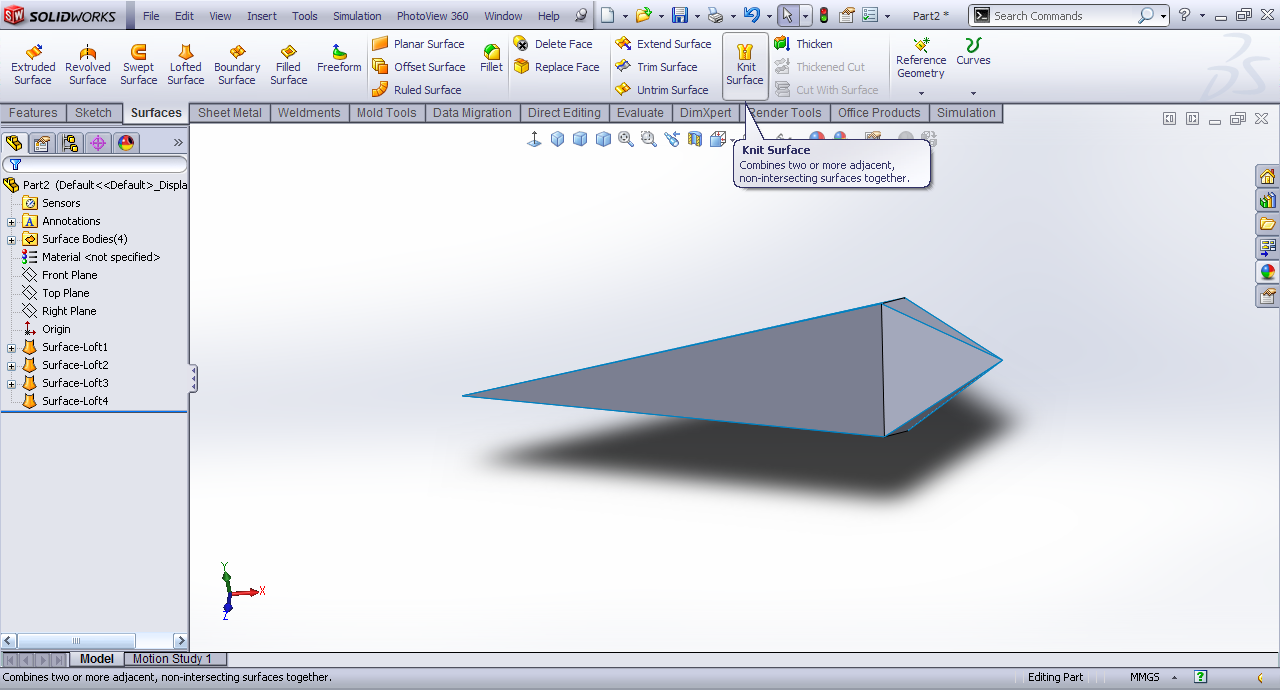

    Click Knit surface under surfaces tab.




14. Step 14:

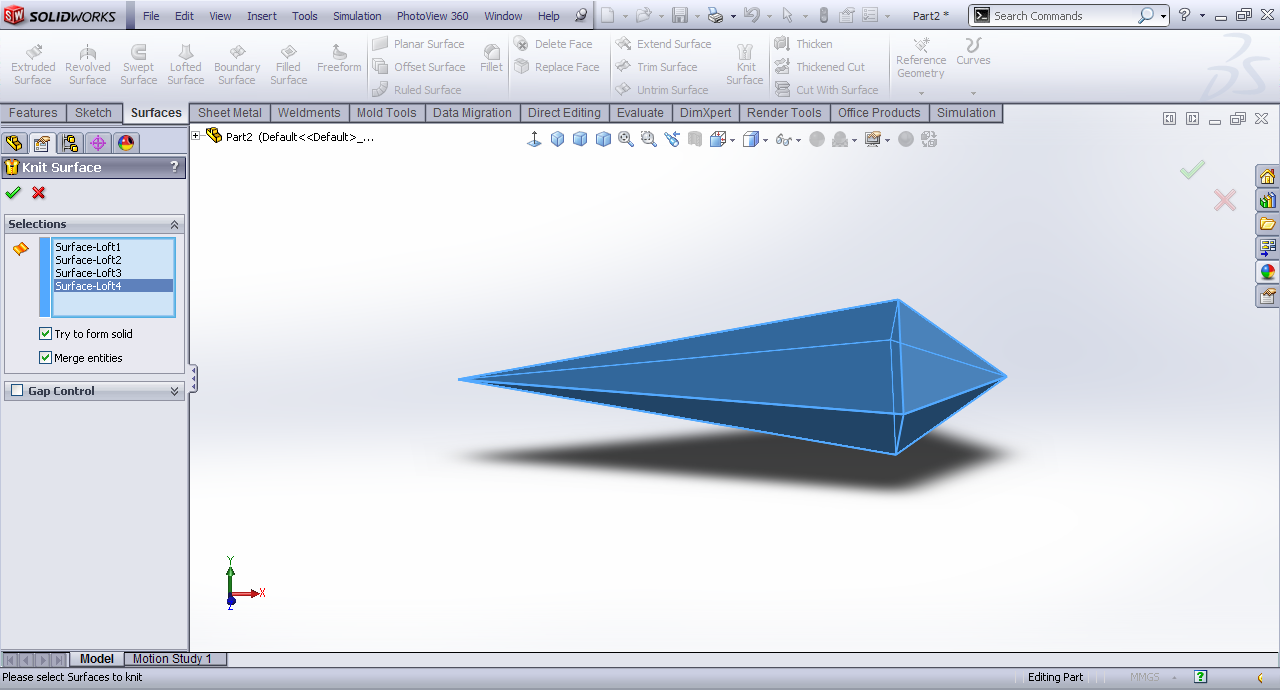

    Select all surfaces and check Try to form solid and click OK.




15. Step 15:

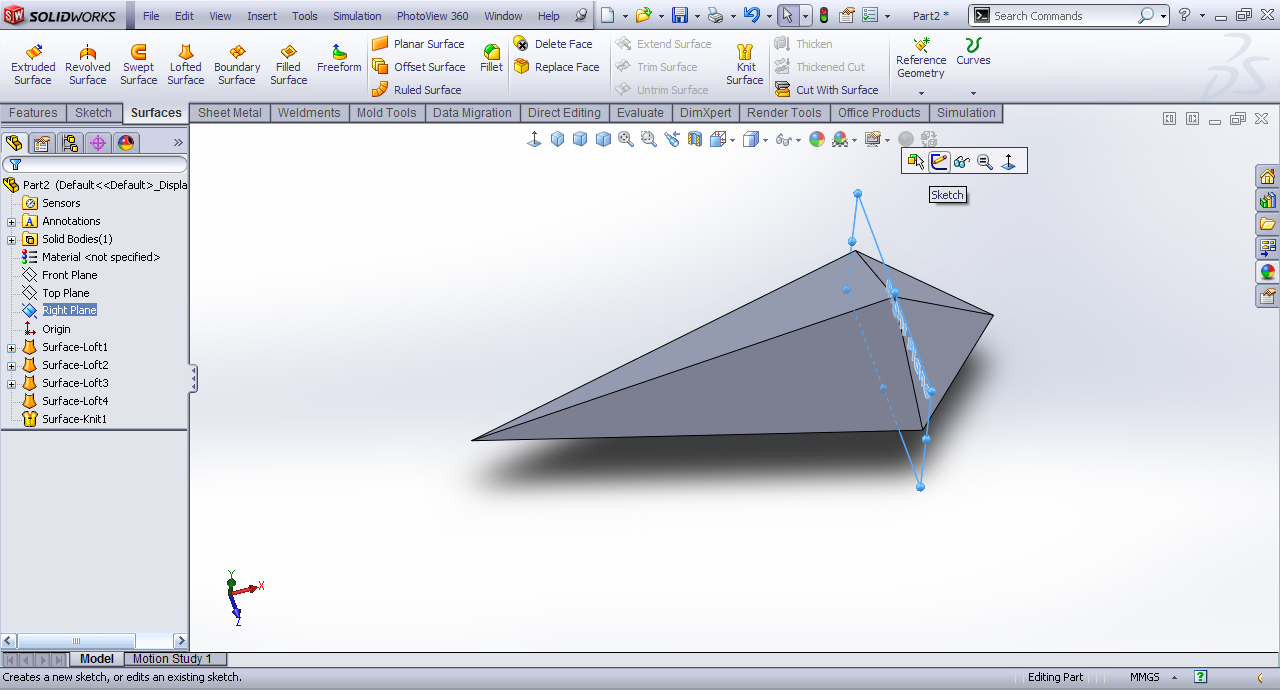

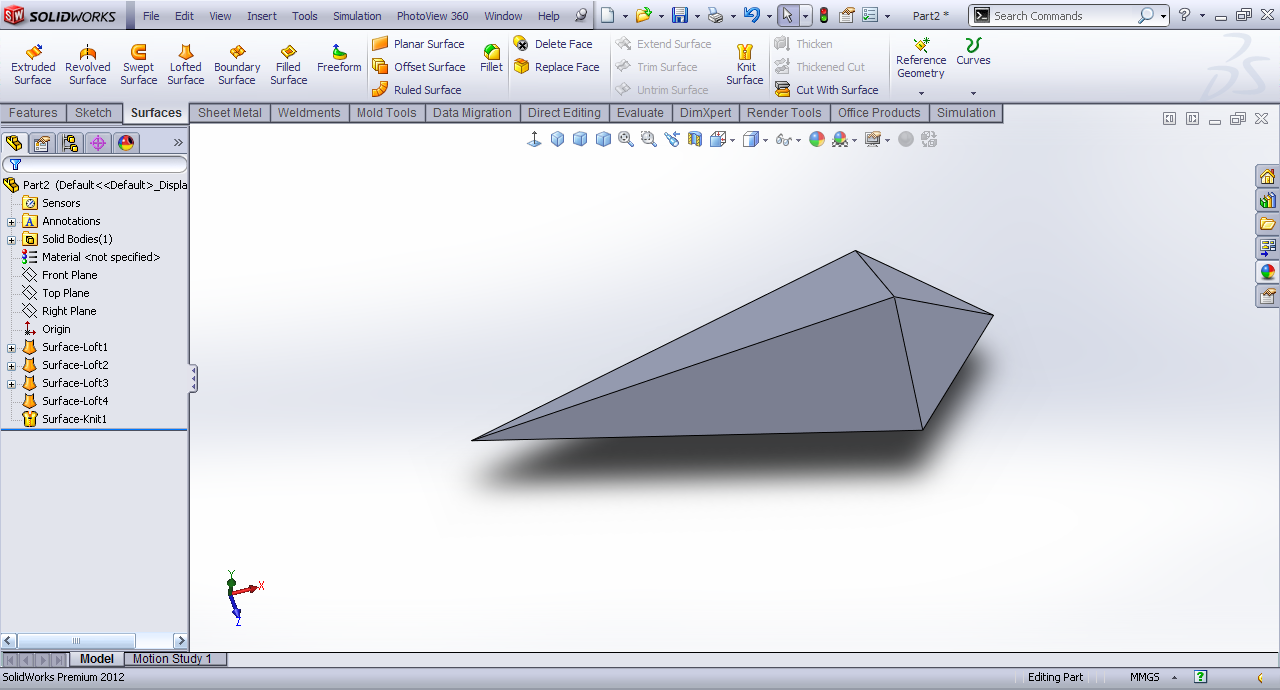

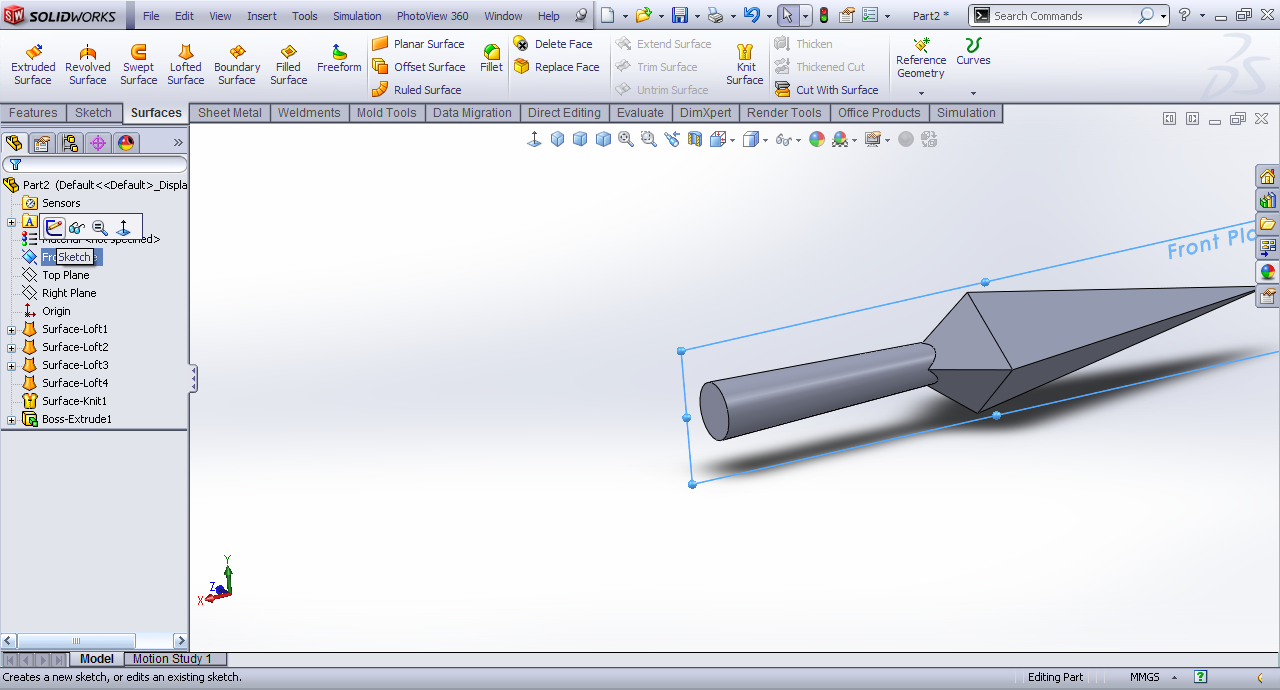

    Now we can see that a surface is generated.




16. Step 16:

    Right plane >> Sketch.




17. Step 17:

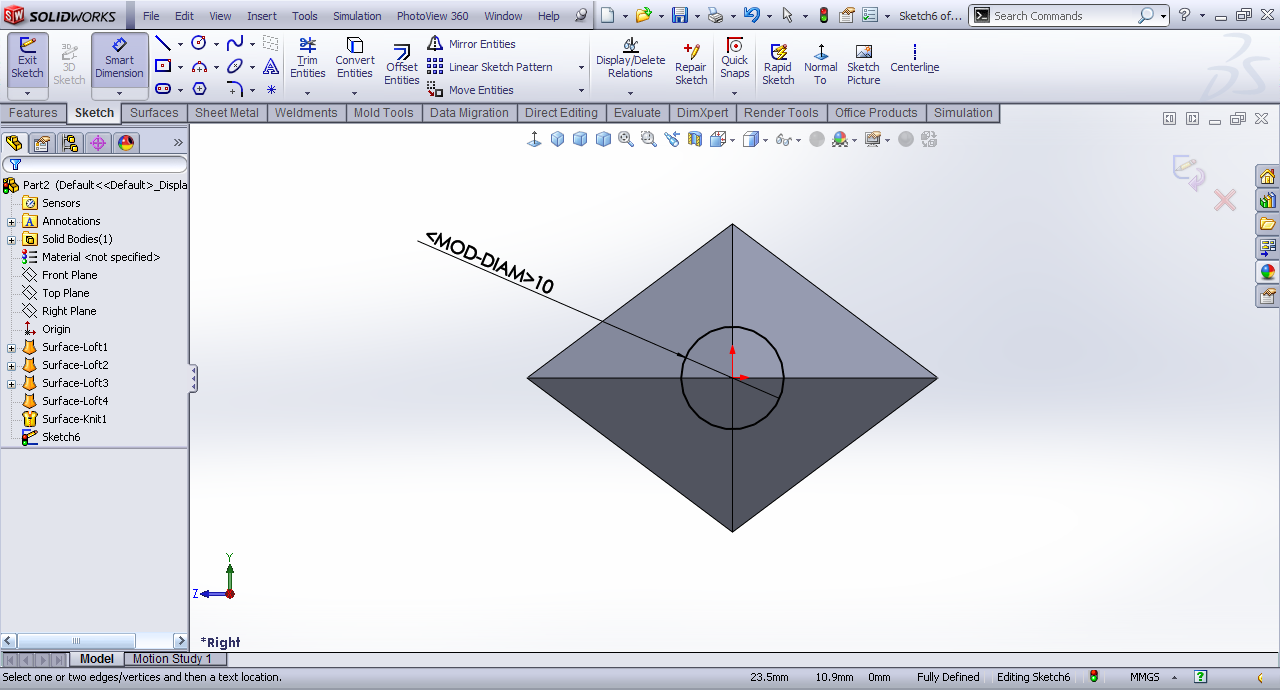

    Draw a circle of 10mm dia.




18. Step 18:

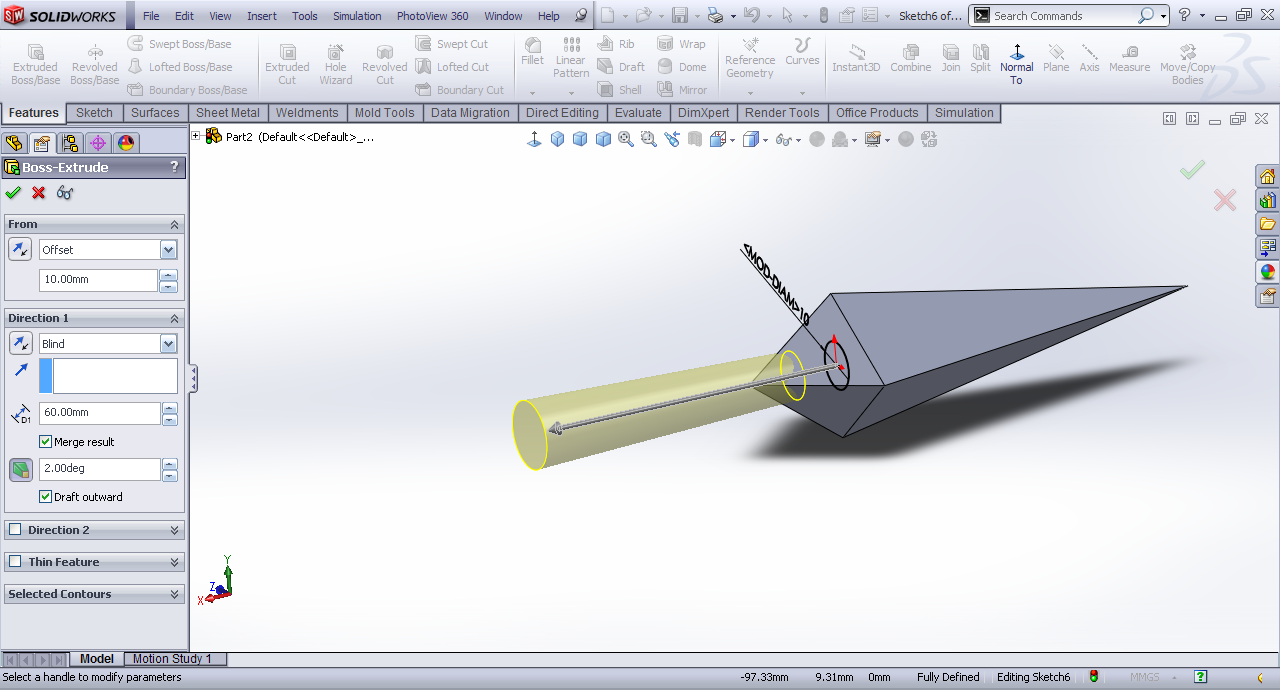

    Extrude it with outward draft and from the offset plane.




19. Step 19:

    Front plane >> Sketch.




20. Step 20:

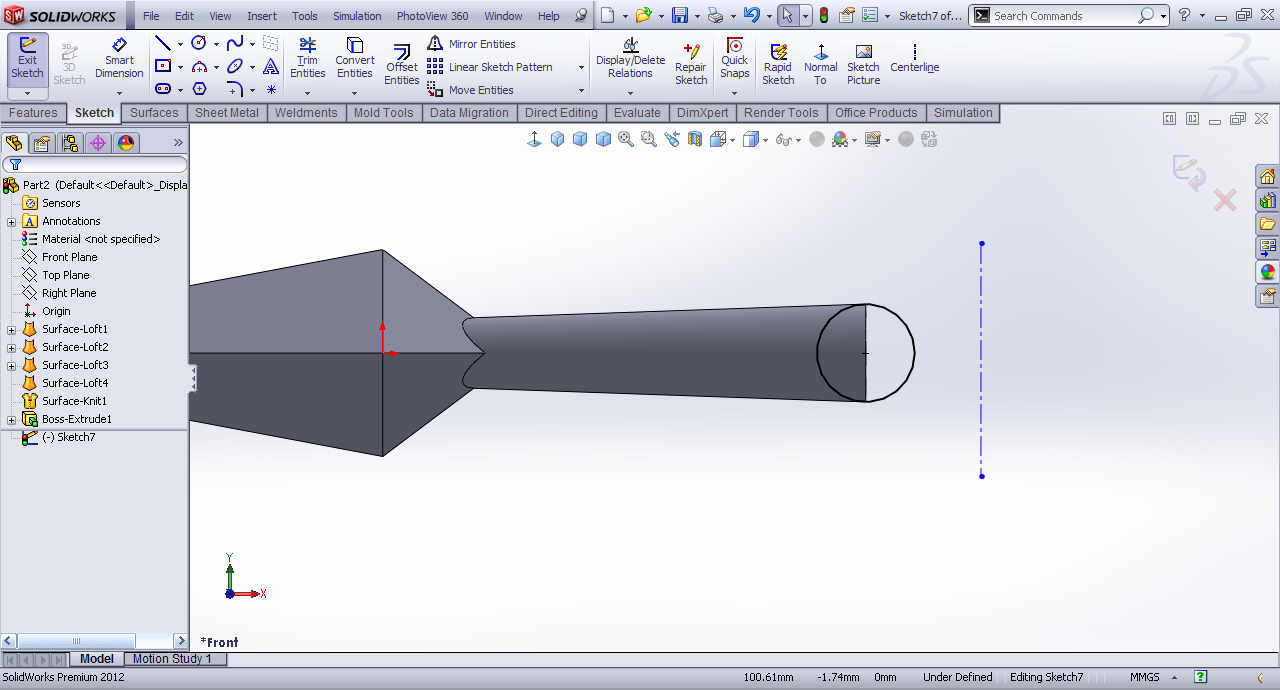

    Draw a circle on the edge.




21. Step 21:

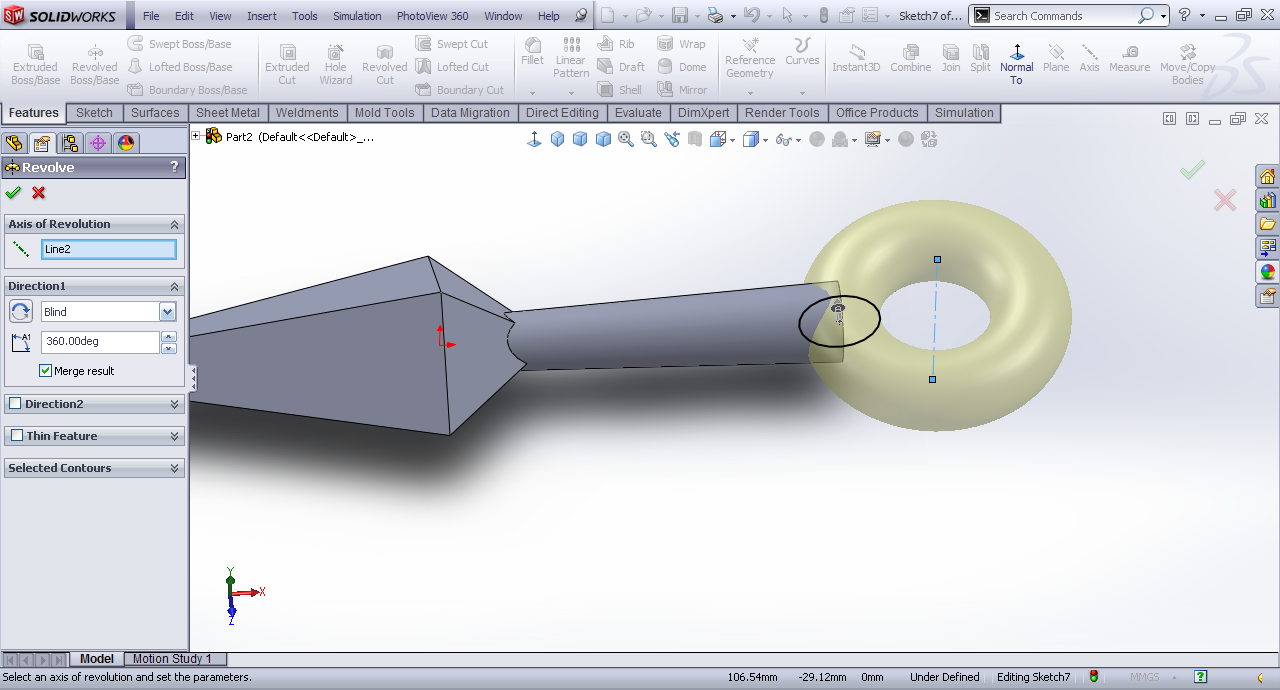

    Revolve it about the center line.




22. Step 22:

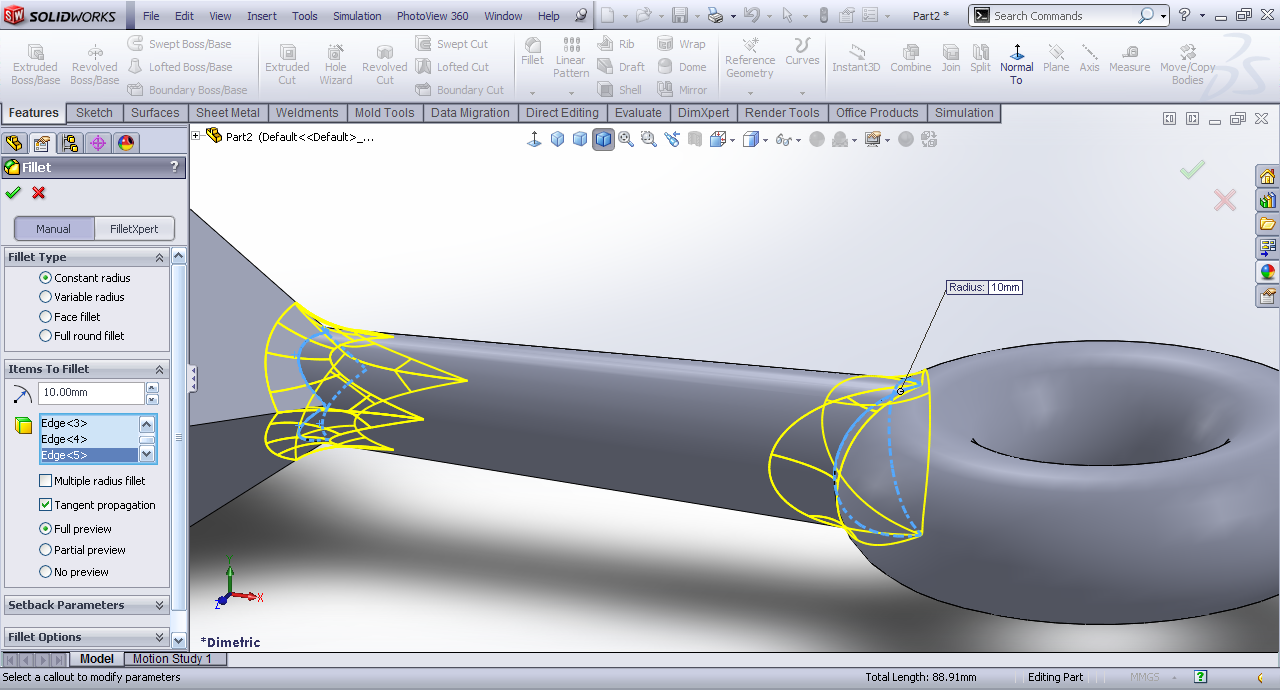

    Fillet the edges.




23. Step 23:

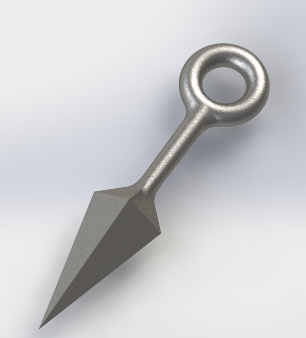

    We have the kunai created.
