How I draw this part using catia v5 software

Mohammed Diab
Mohammed Diab
28 Jul, 2025 06:54 AM

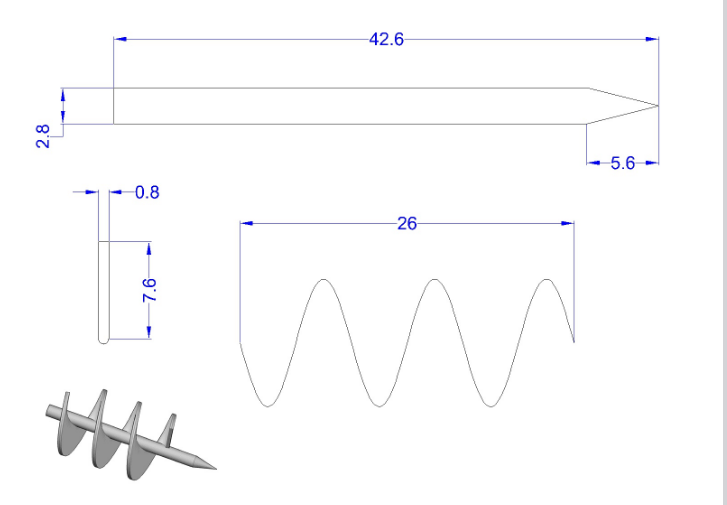

please help me to draw this part

Capture.PNG Capture.PNG

2 Answers

Jack K
Jack K
Answered on 29 Jul, 2025 01:42 AM

What have you drawn so far? Please attach a screen shot

Muhammad Asim Nouman
Muhammad Asim Nouman
Answered on 20 Aug, 2025 10:40 AM

You have to use GSD for Helix Curve and other thins using Part Design Work Bench Only. Let me know if you could draw with this hint.
