Spring Bar

Ikhsan Rahadian
18 Apr, 2022 09:11 PM

Study Lamp Spring Bar

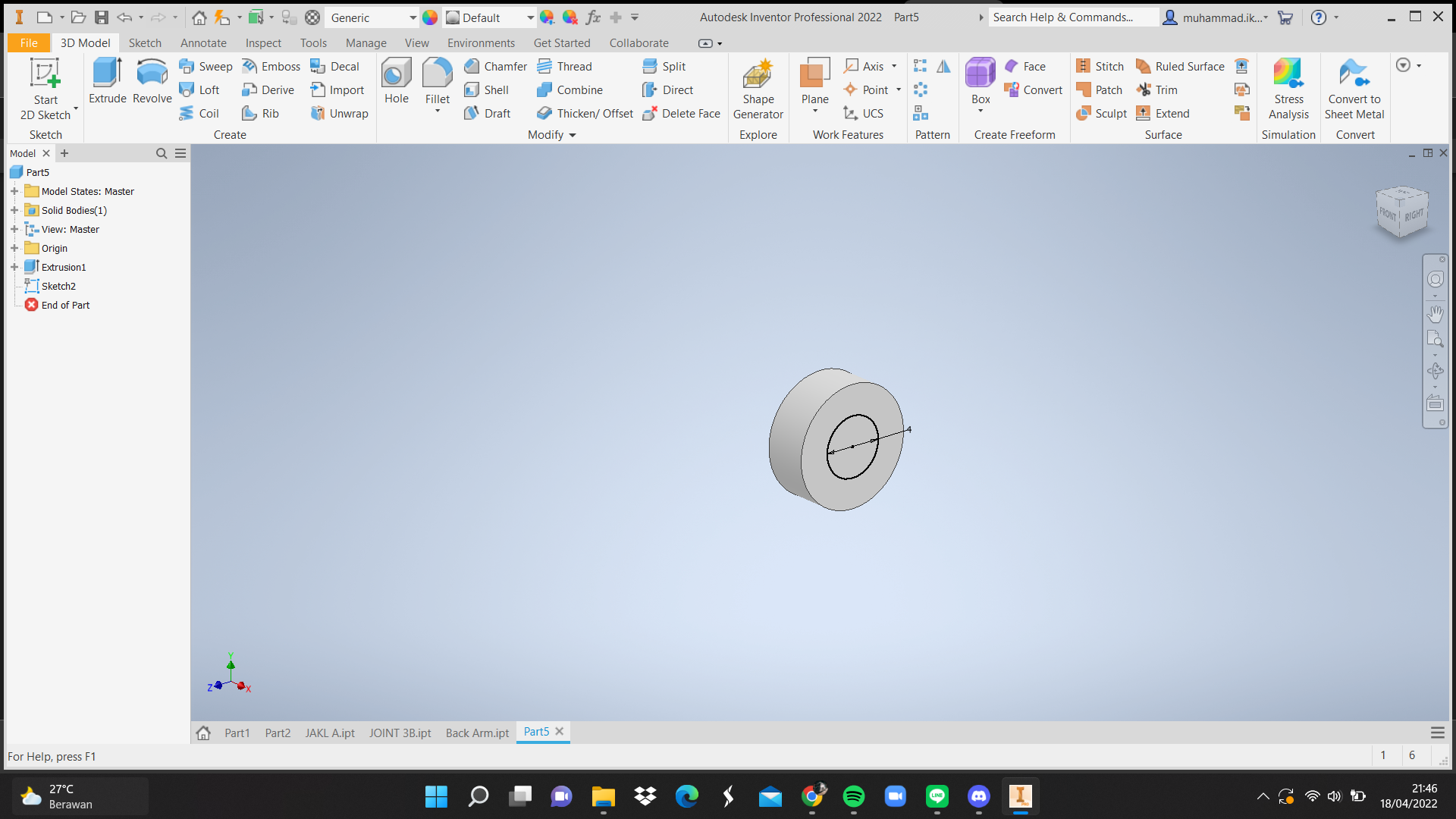

  1. Step 1: Draw a circle with diameter 8 mm and extrude around 3 mm

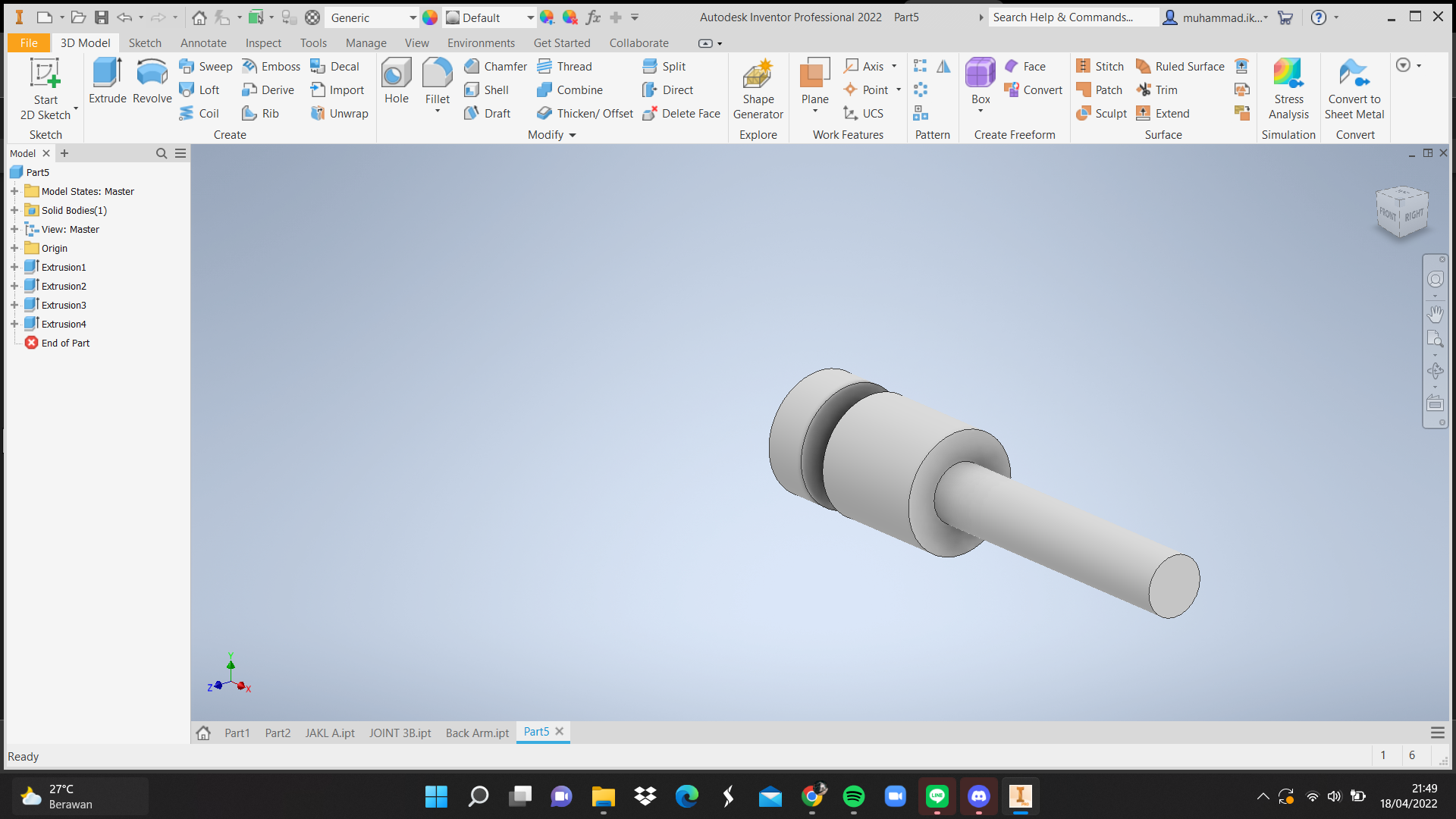

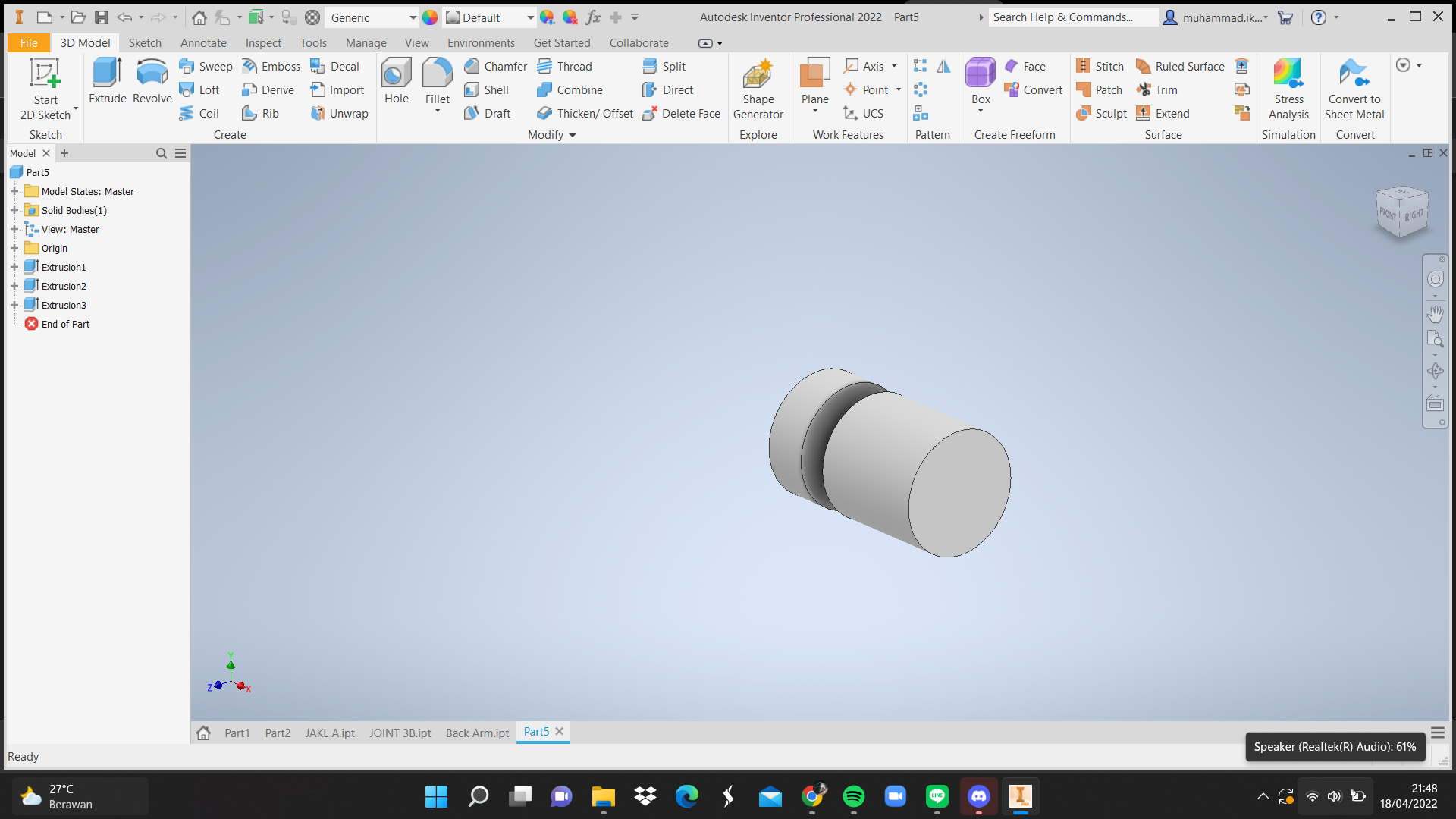

  2. Step 2: Draw a circle with diameter 4 mm and extrude around 2 mm, than Draw a circle with diameter 8 mm and extrude around 8mm



  3. Step 3: Draw a circle with diameter 4 mm and extrude around 20 mm

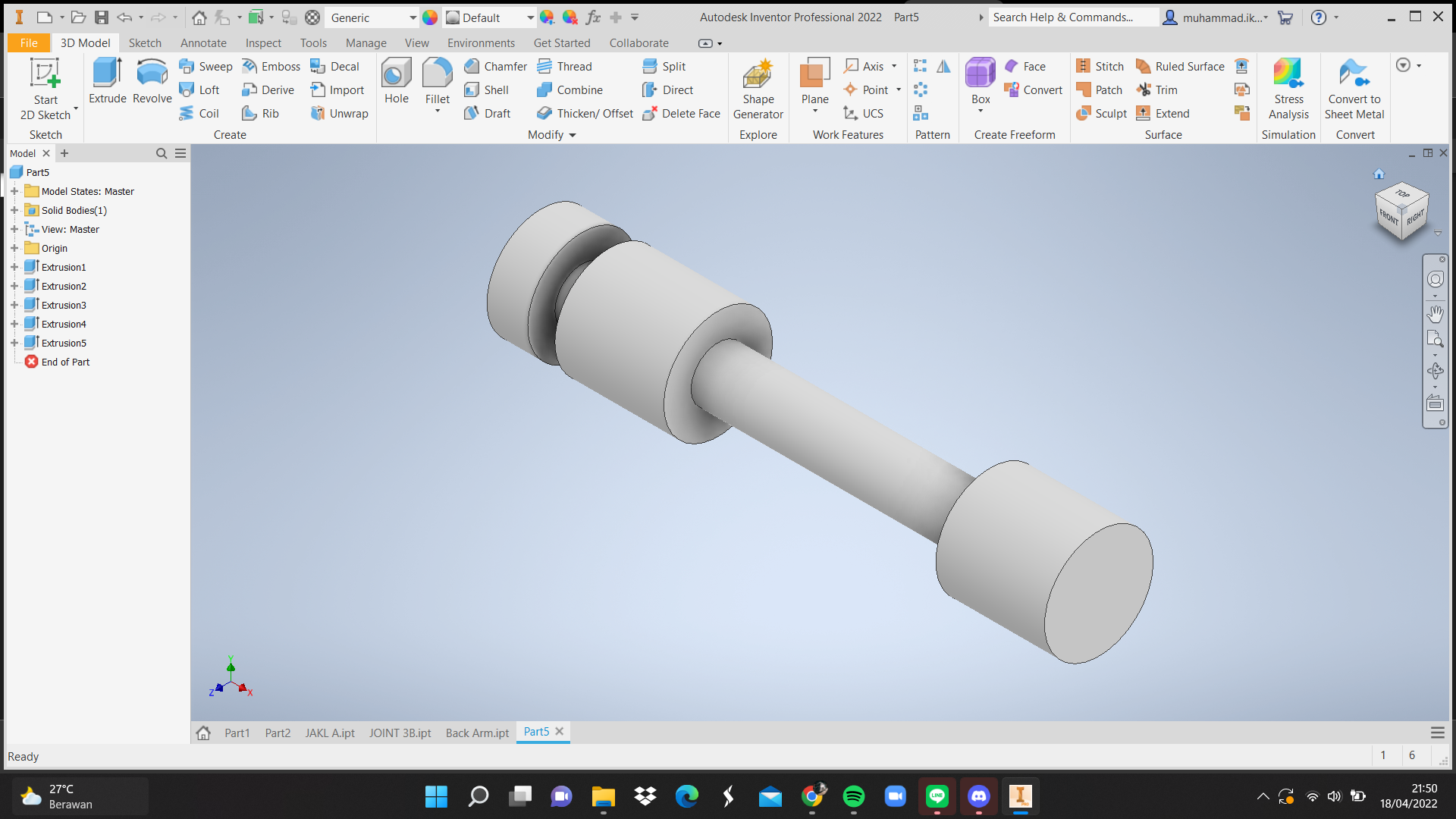

  4. Step 4: Draw a circle with diameter 8 mm and extrude around 8 mm

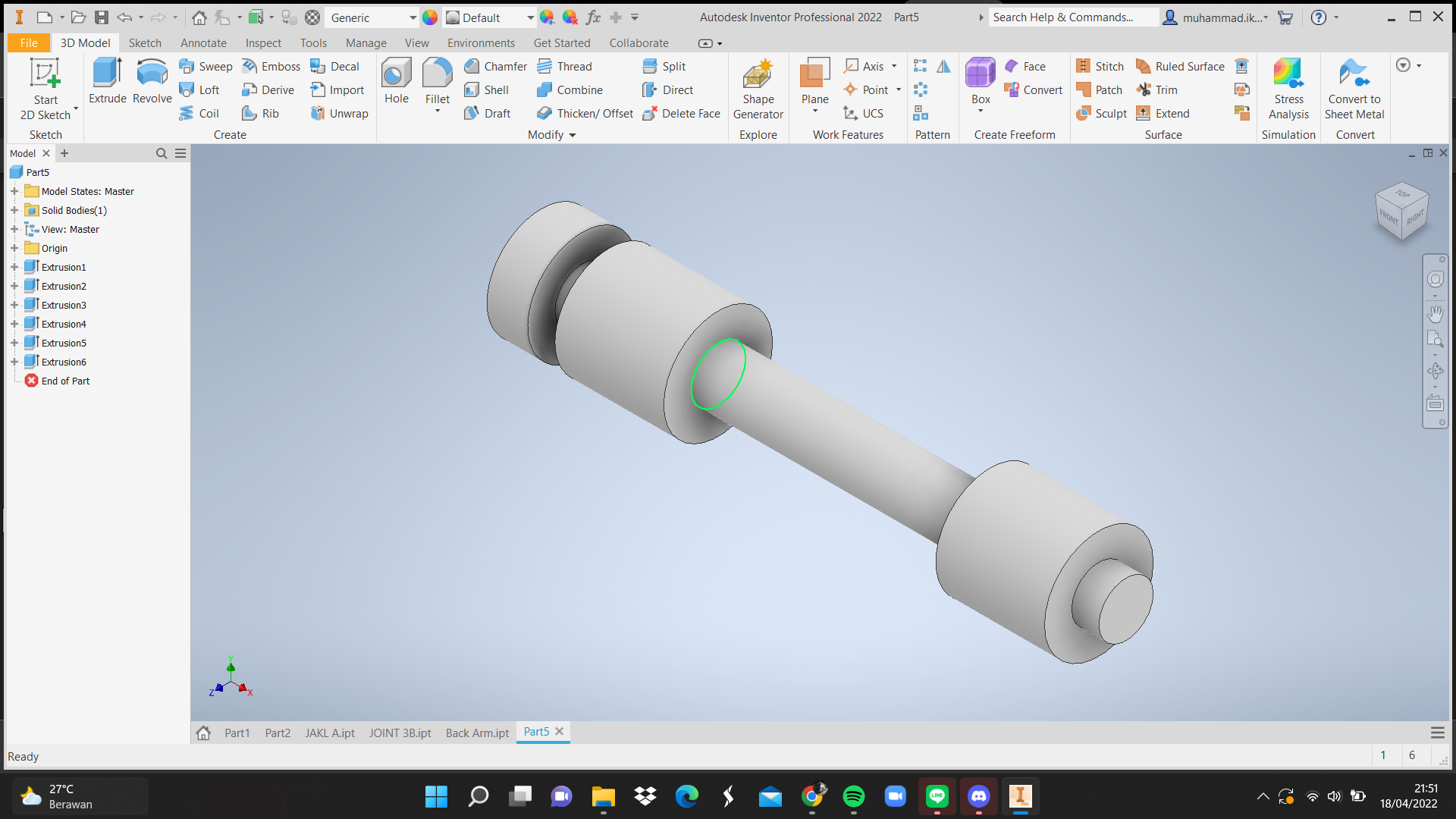

  5. Step 5: Draw a circle with diameter 4 mm and extrude around 2 mm

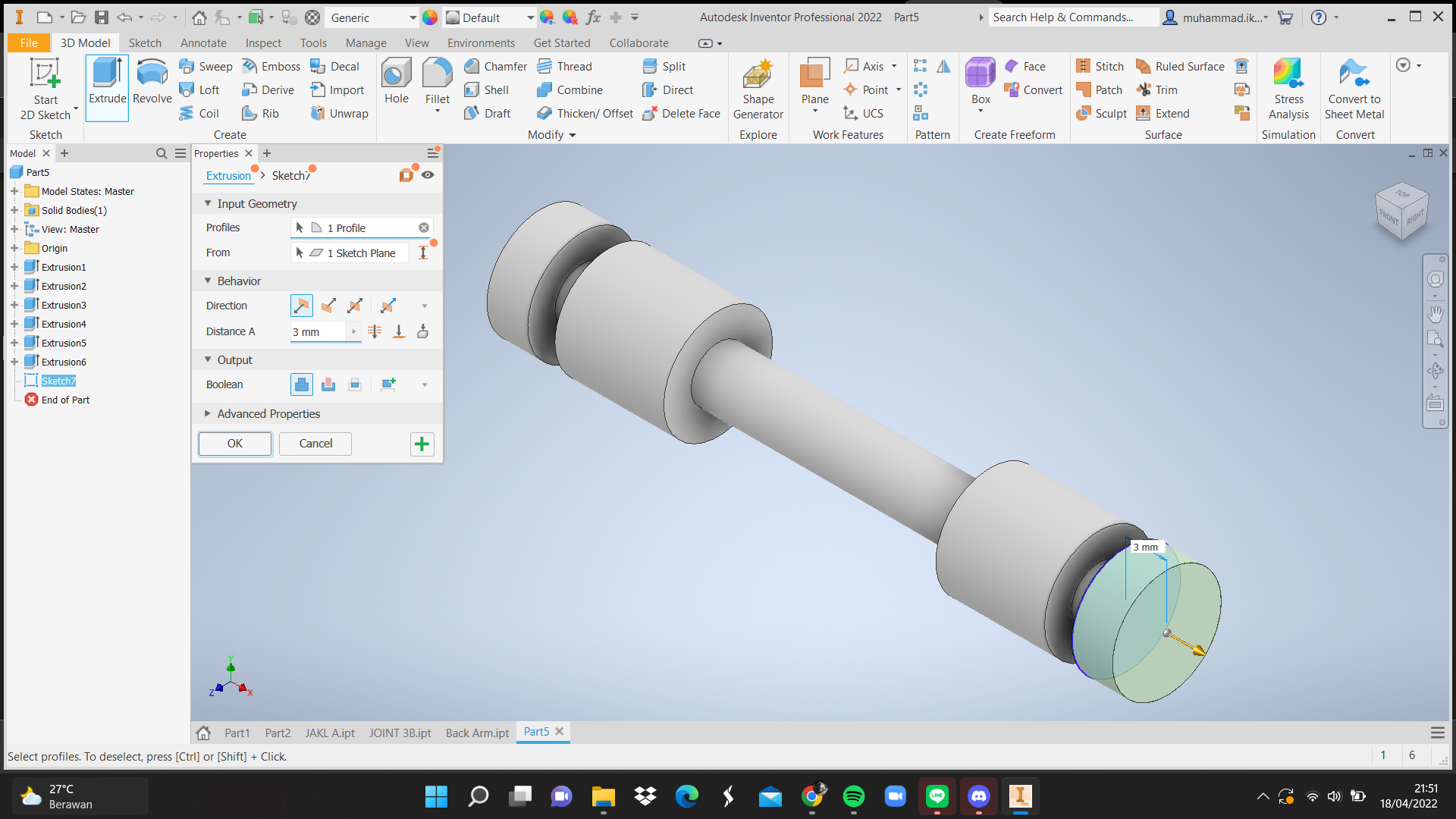

  6. Step 6: Draw a circle with diameter 8 mm and extrude around 3 mm

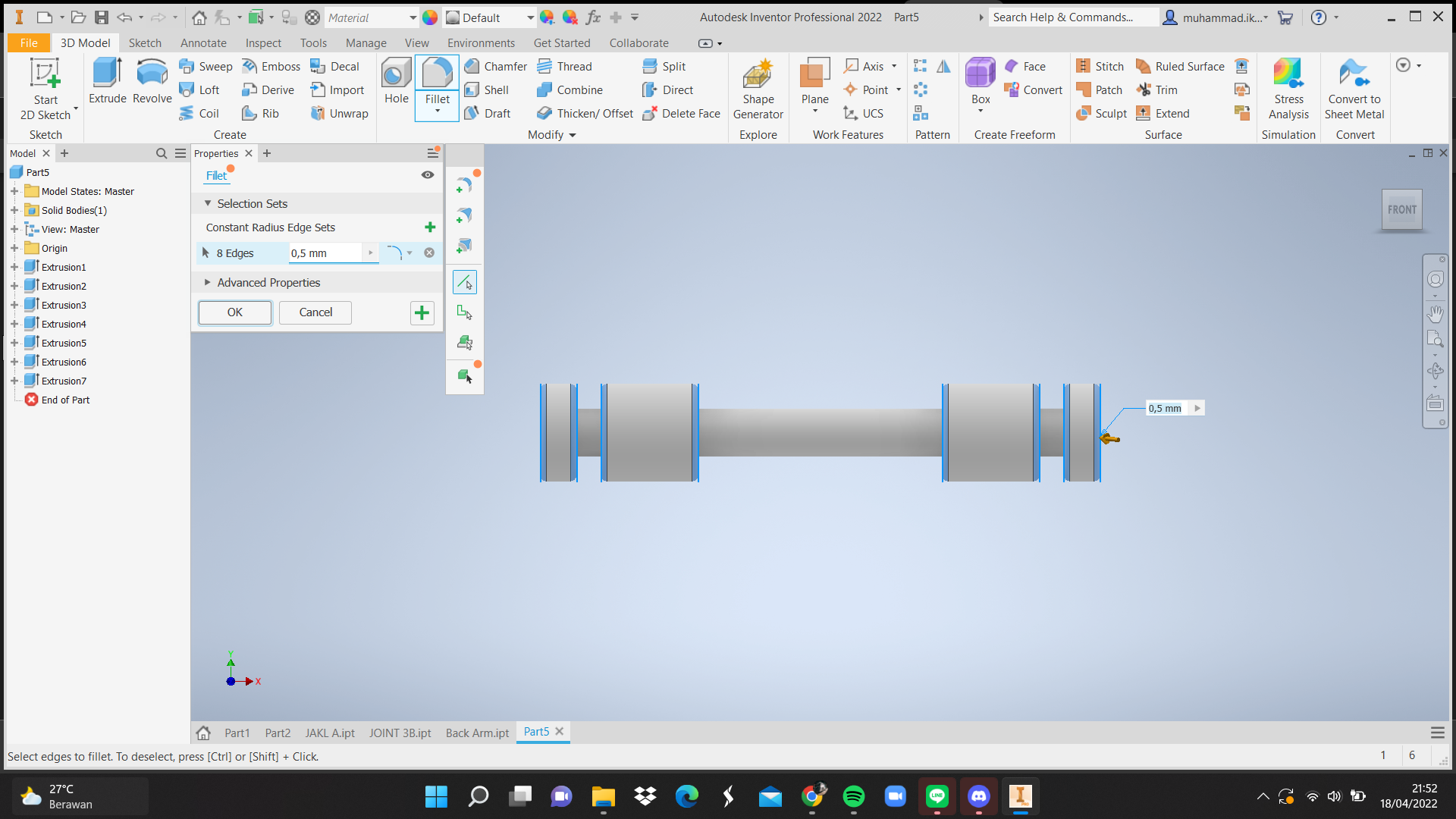

  7. Step 7: Shaped each edge with fillet



  8. Step 8: Change the appearance to Gloss - Black
