Tutorial - Modeling Bolt in Creo Elements aka Pro/E?

Sudhir Gill

7 Mar, 2012 07:57 AM

Here is the tutorial.

1. Step 1:

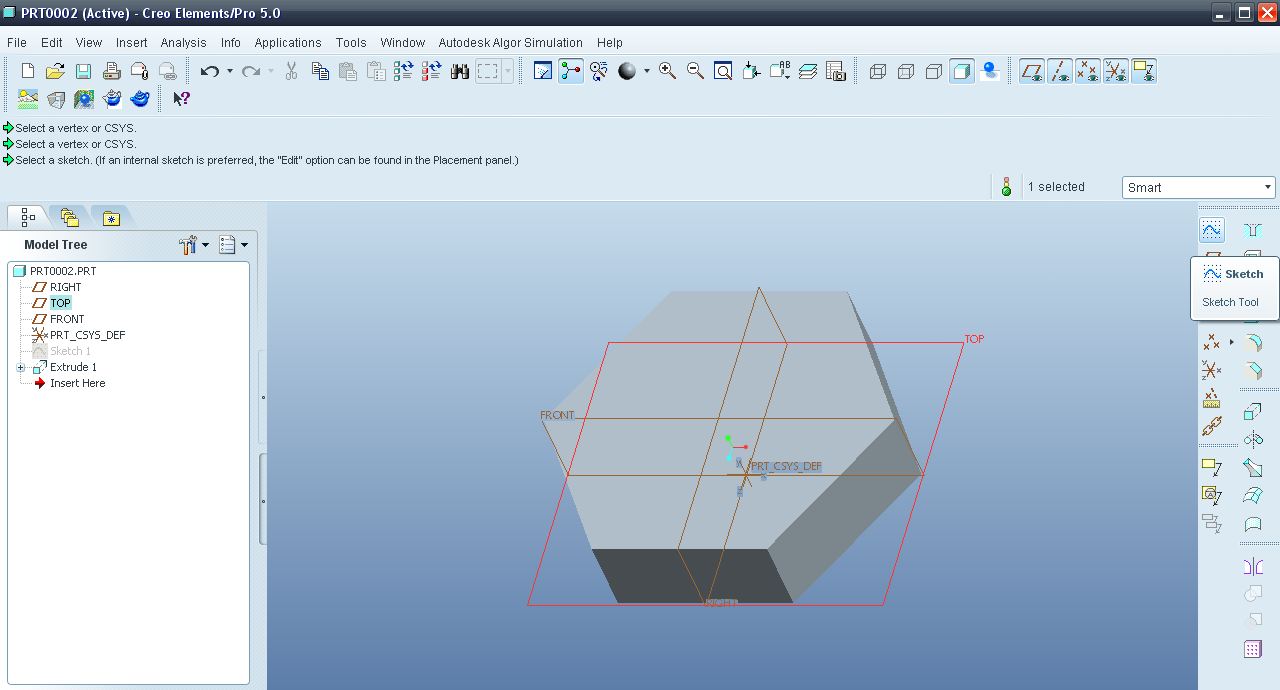

   Sketch >> Top plane.




2. Step 2:

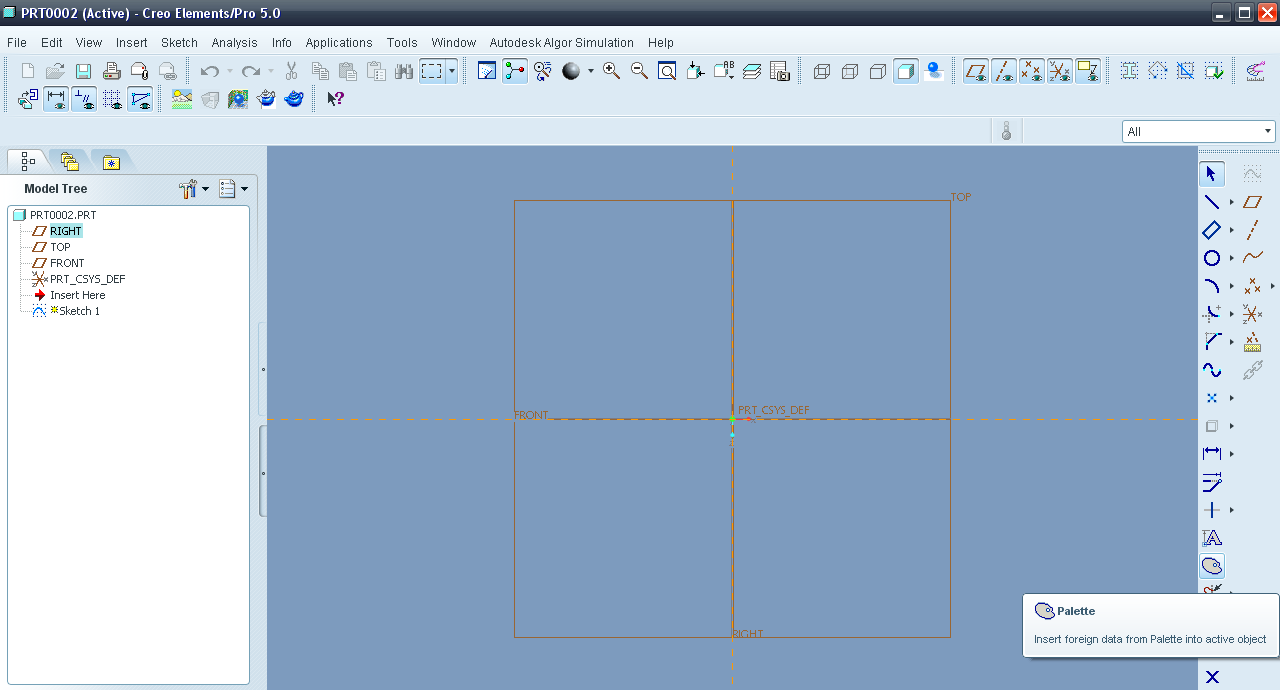

   Click Pallete tool.




3. Step 3:

   Choose Hexagon.

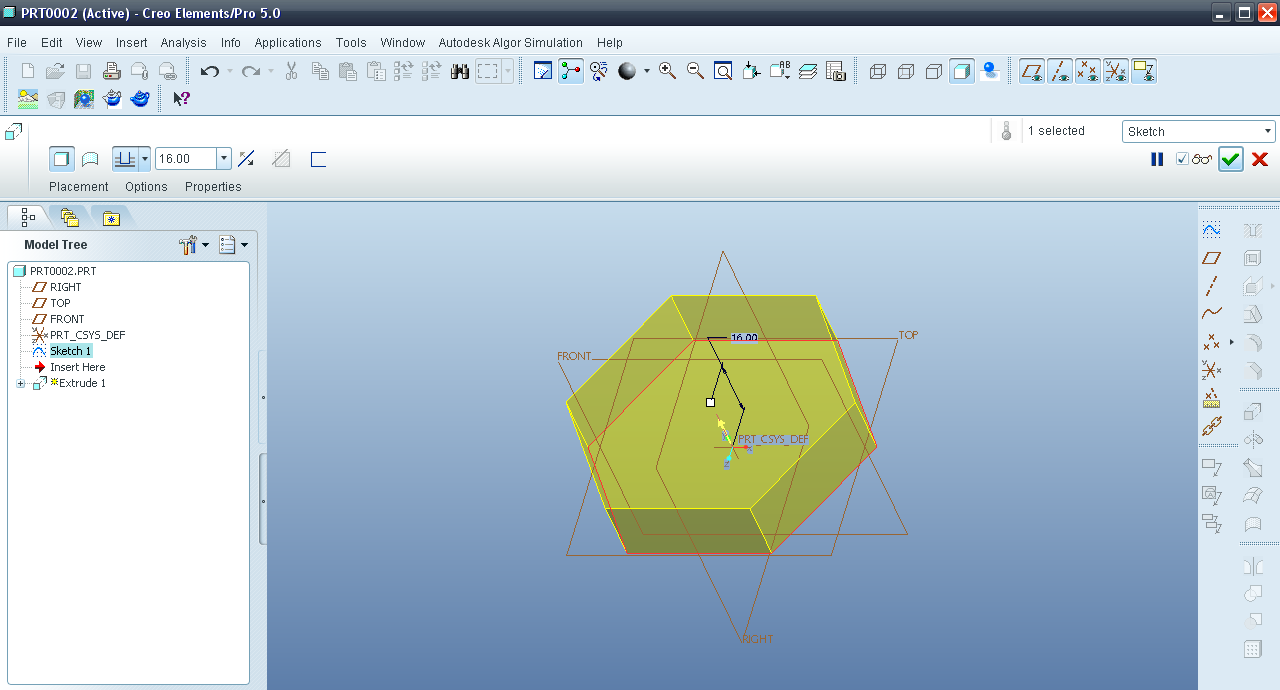

4. Step 4:

   Drag it to workspace and adjust it to origin.




5. Step 5:

   Delete the dimension of the side and dimension the circle.




6. Step 6:

   Extrude it.




7. Step 7:

   Sketch >> Top plane.

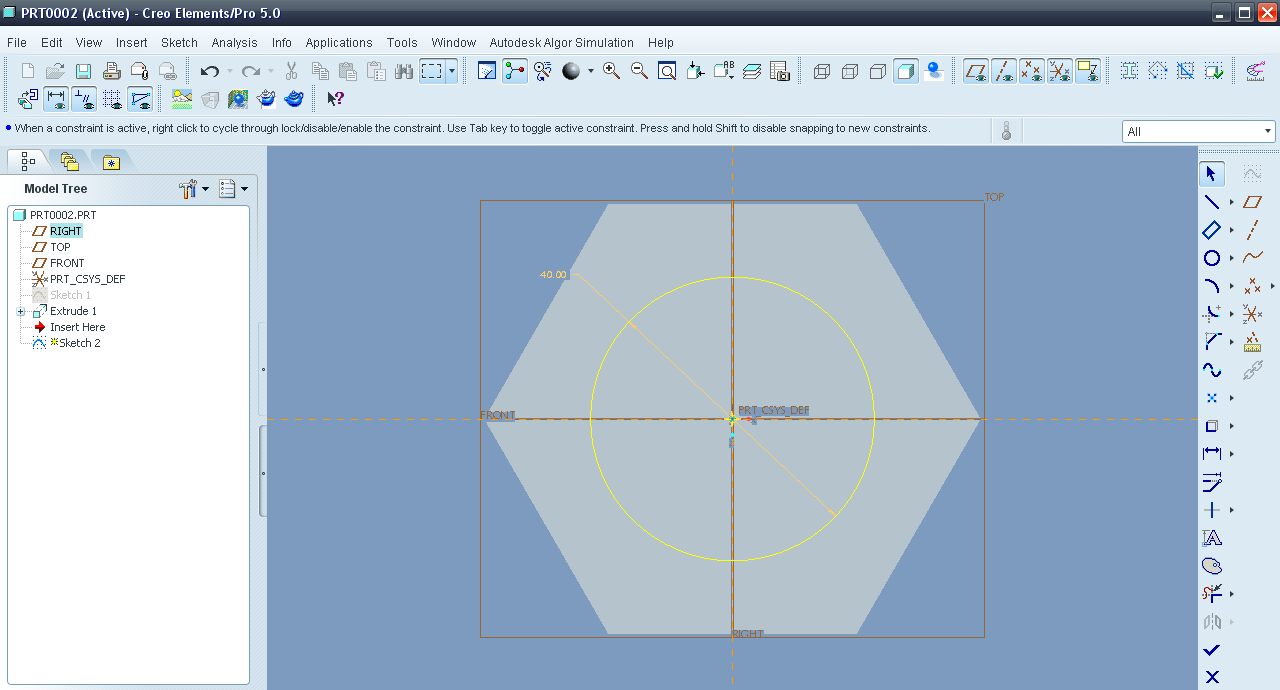

8. Step 8:

   Draw a circle.




9. Step 9:

   Extrude it.

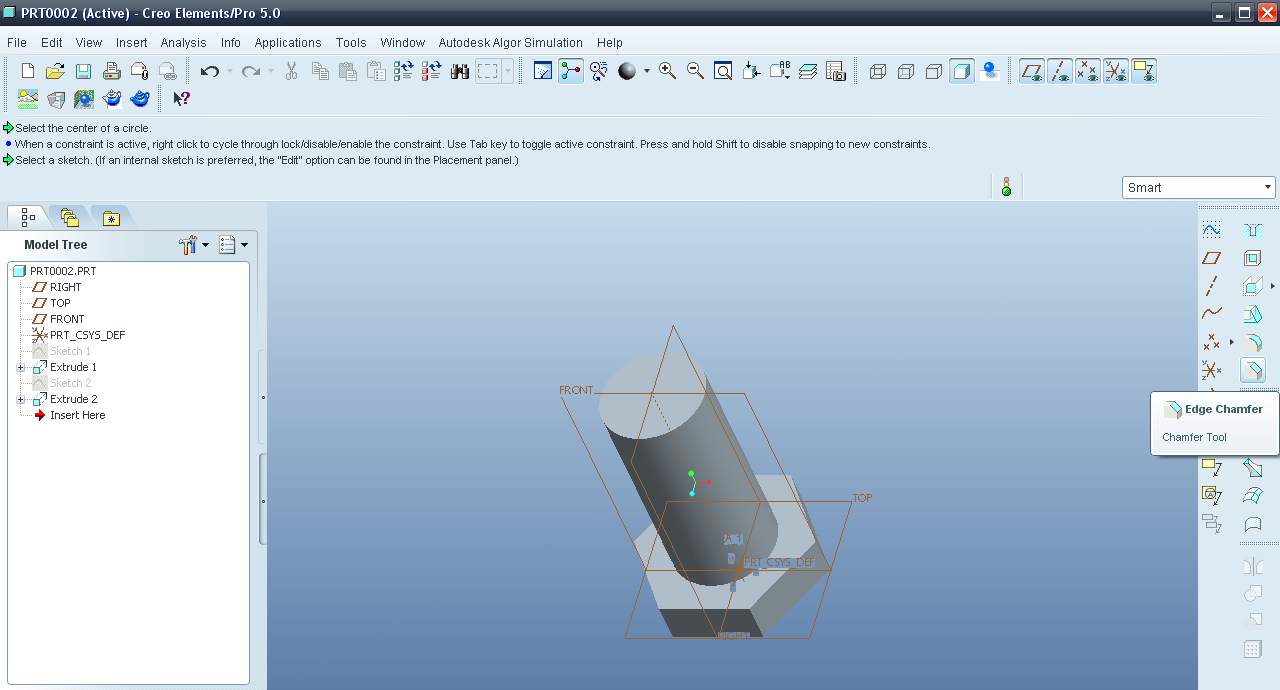

10. Step 10:

    Edge chamfer tool.




11. Step 11:

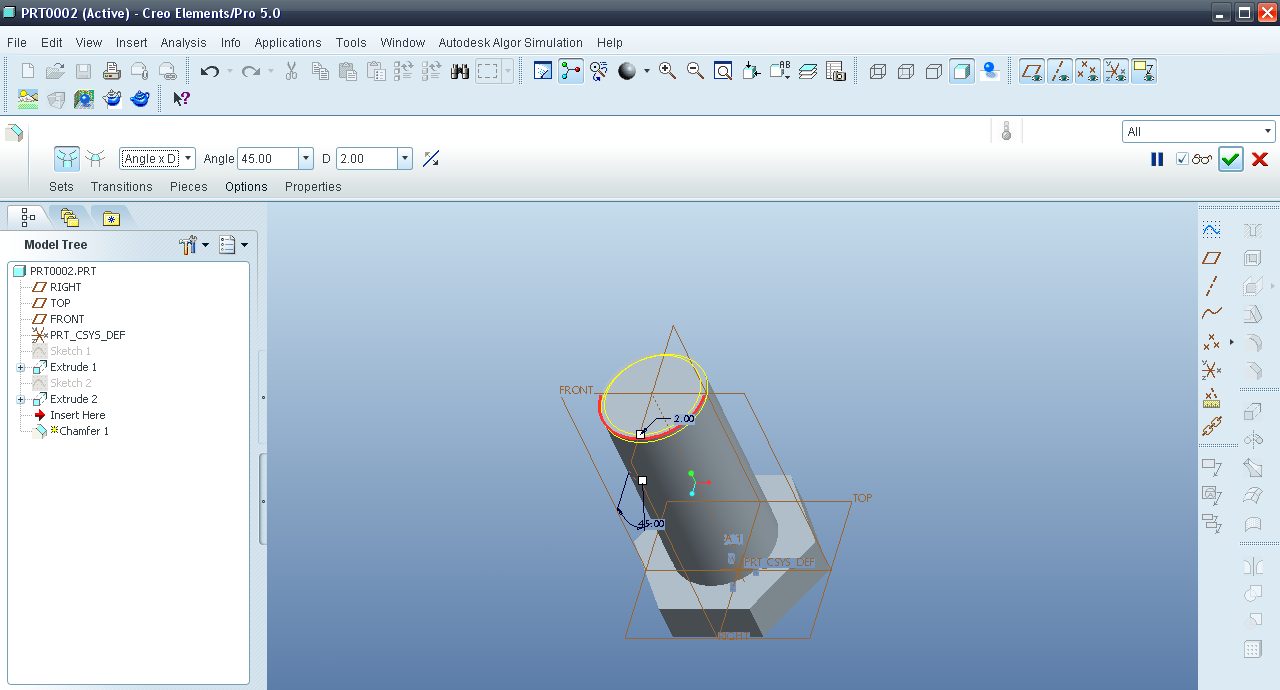

    Chamfer the circular edge.




12. Step 12:

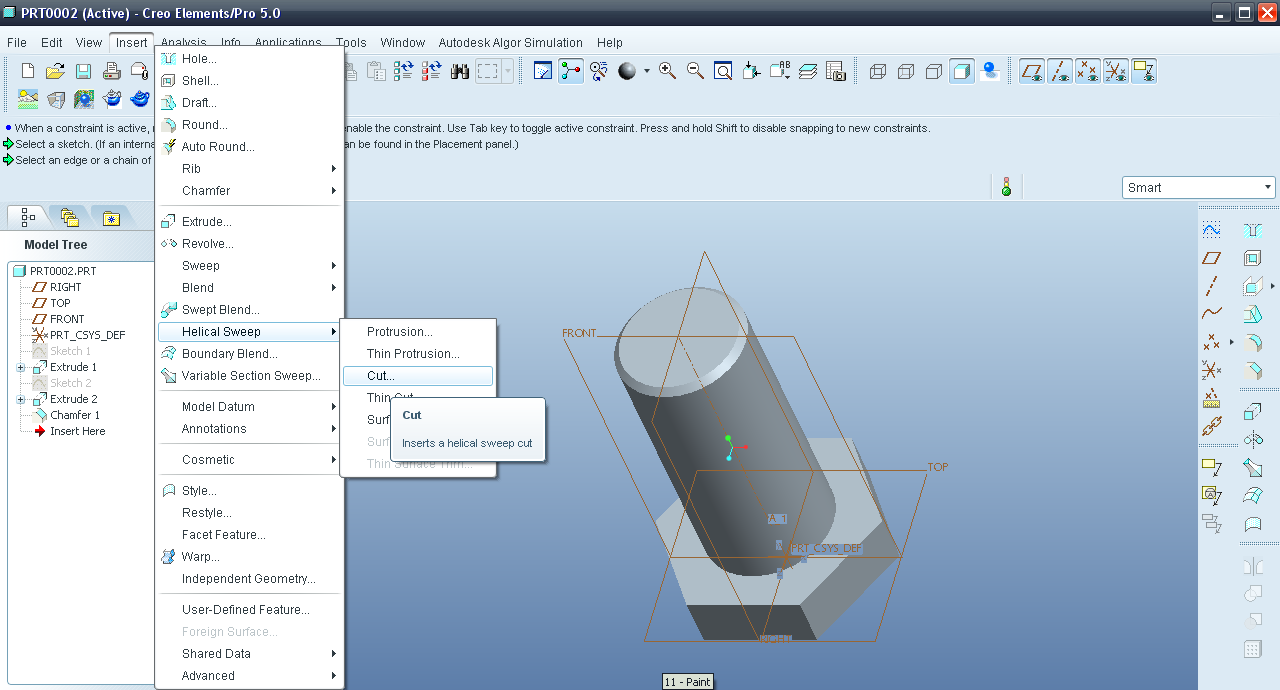

    Insert >> Helical sweep >> Cut.

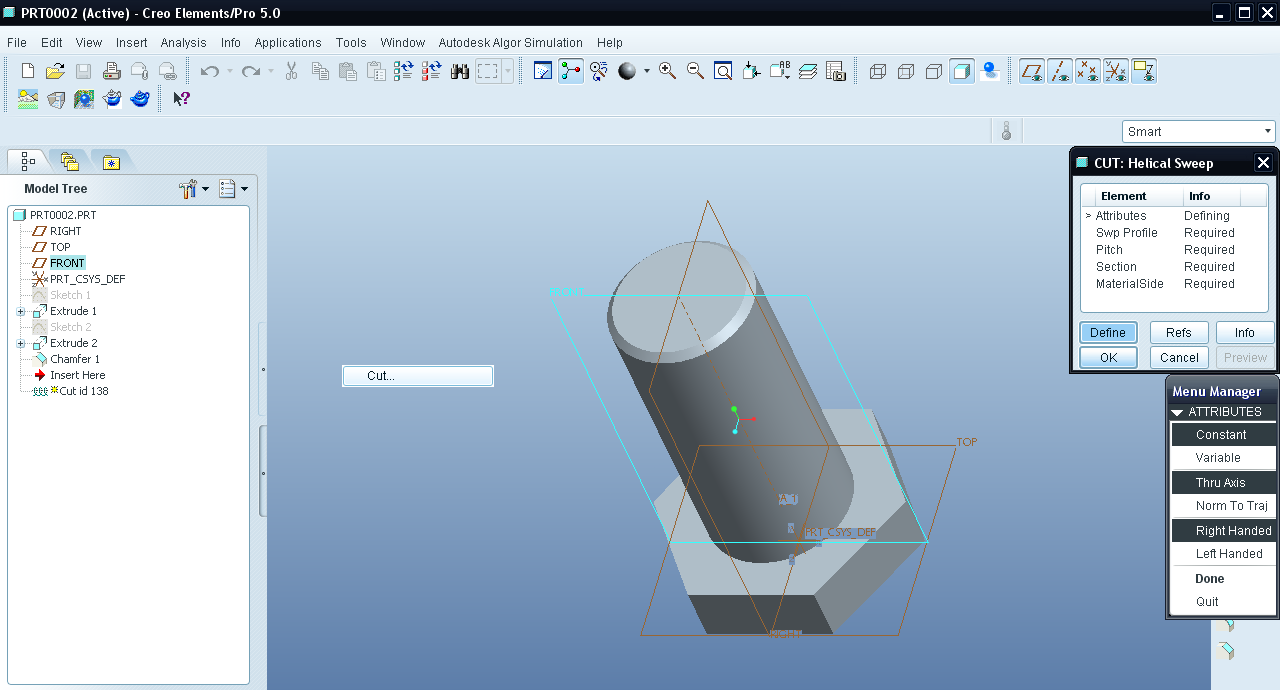

13. Step 13:

    Now press middle click OK.




14. Step 14:

    When we have to select plane, select Front plane.

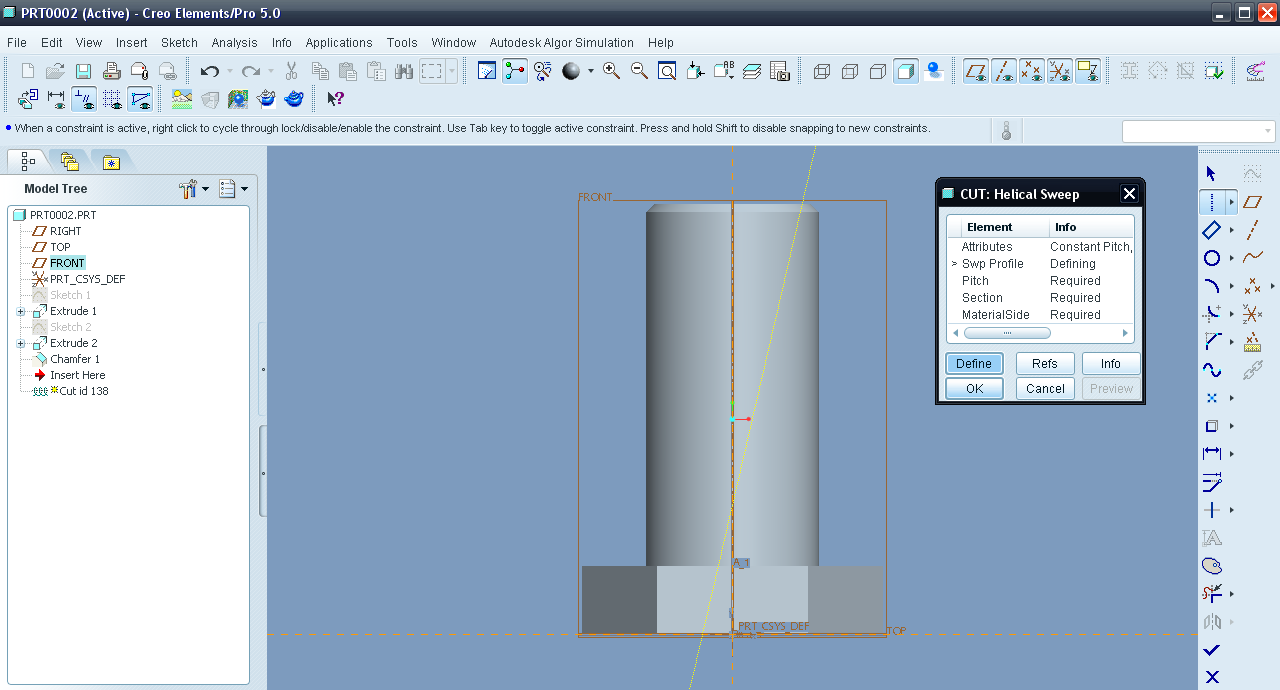

15. Step 15:

    Draw a center line along the vertical axis.




16. Step 16:

    Draw a line.




17. Step 17:

    Exit the sketch and input the pitch value.

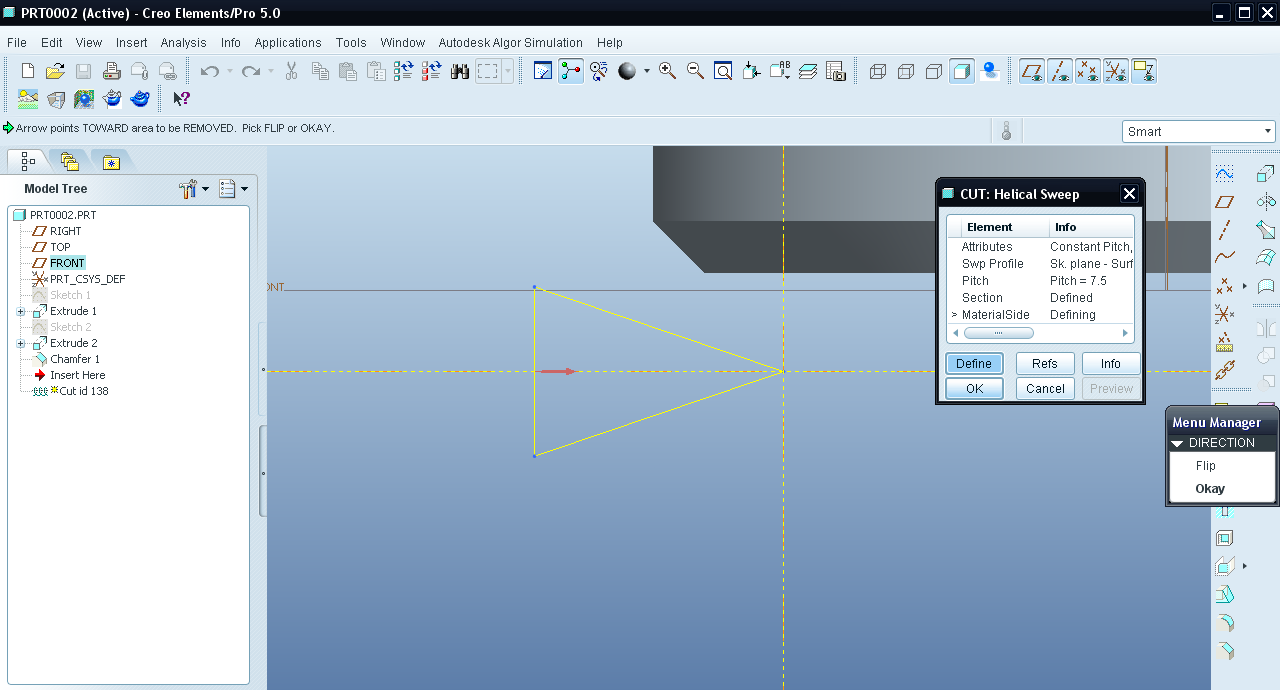

18. Step 18:

    Draw a triangular profile.




19. Step 19:

    Exit the sketch and direction be inside the profile.




20. Step 20:

    Click OK and the feature is generated.

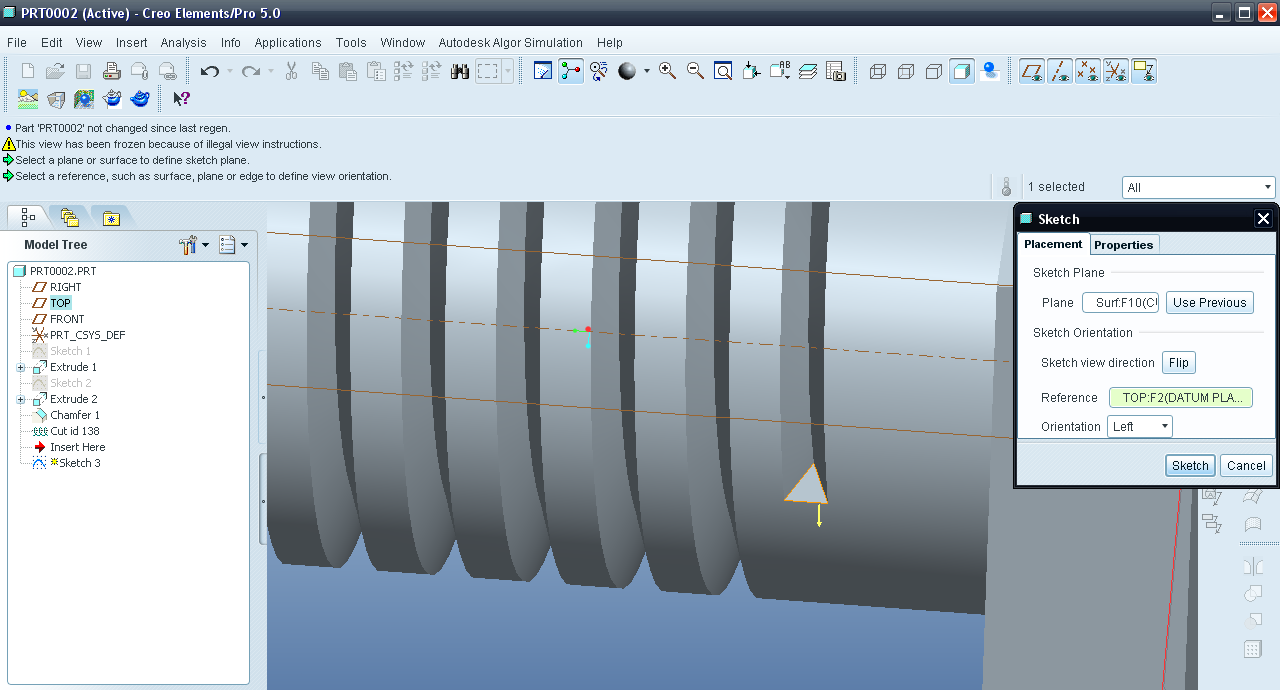

21. Step 21:

    Sketch >> End face of the cut.

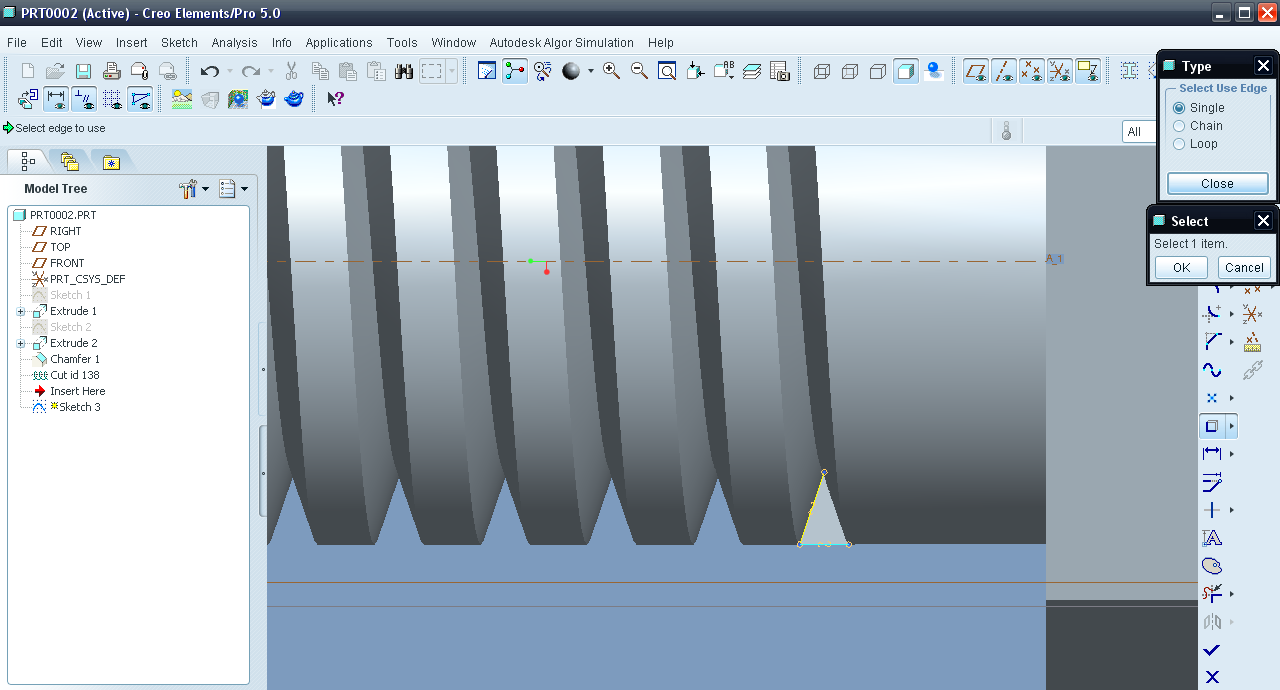

22. Step 22:

    Convert the two edges.




23. Step 23:

    Make another line about those lines.




24. Step 24:

    Extrude it with remove material and click OK.




25. Step 25:

    We have the bolt generated.
