Tutorial - Modeling a bearing in SolidWorks?

Sudhir Gill

23 Feb, 2012 04:20 PM

Here is the tutorial.

1. Step 1:

   Start SolidWorks in Part mode.




2. Step 2:

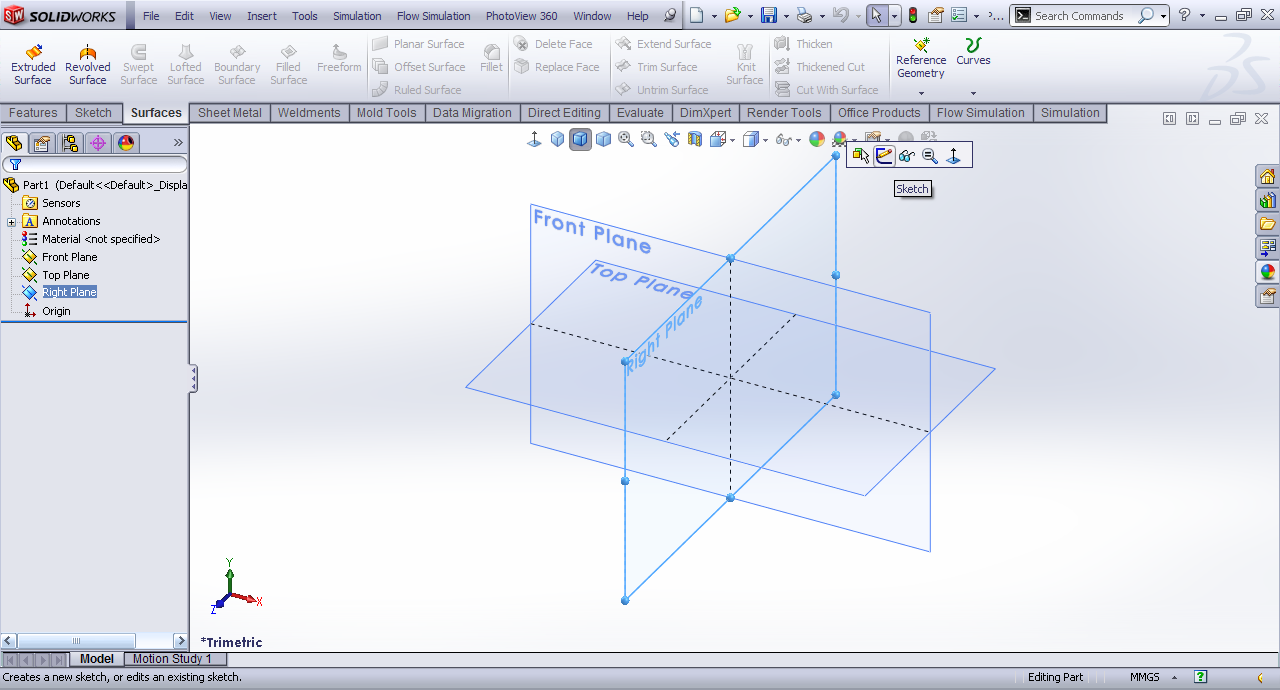

   Right plane >> Sketch.




3. Step 3:

   Draw a profile like this.




4. Step 4:

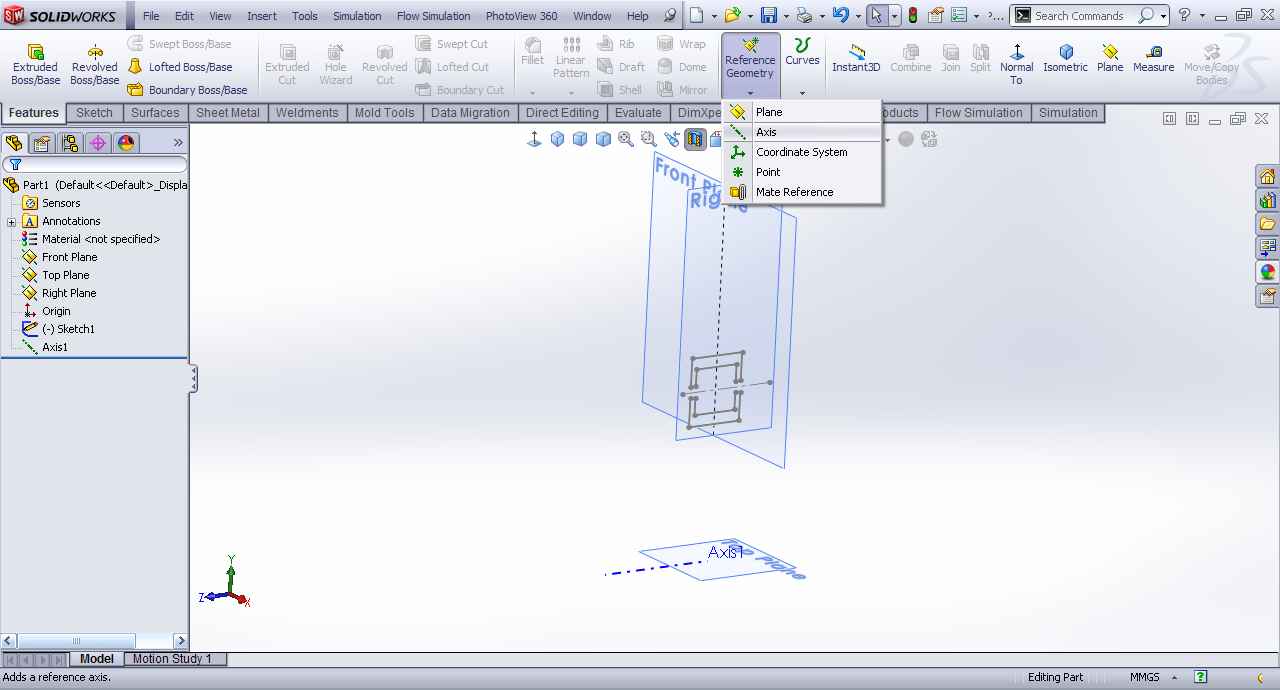

   Reference Geometry>>axis.




5. Step 5:

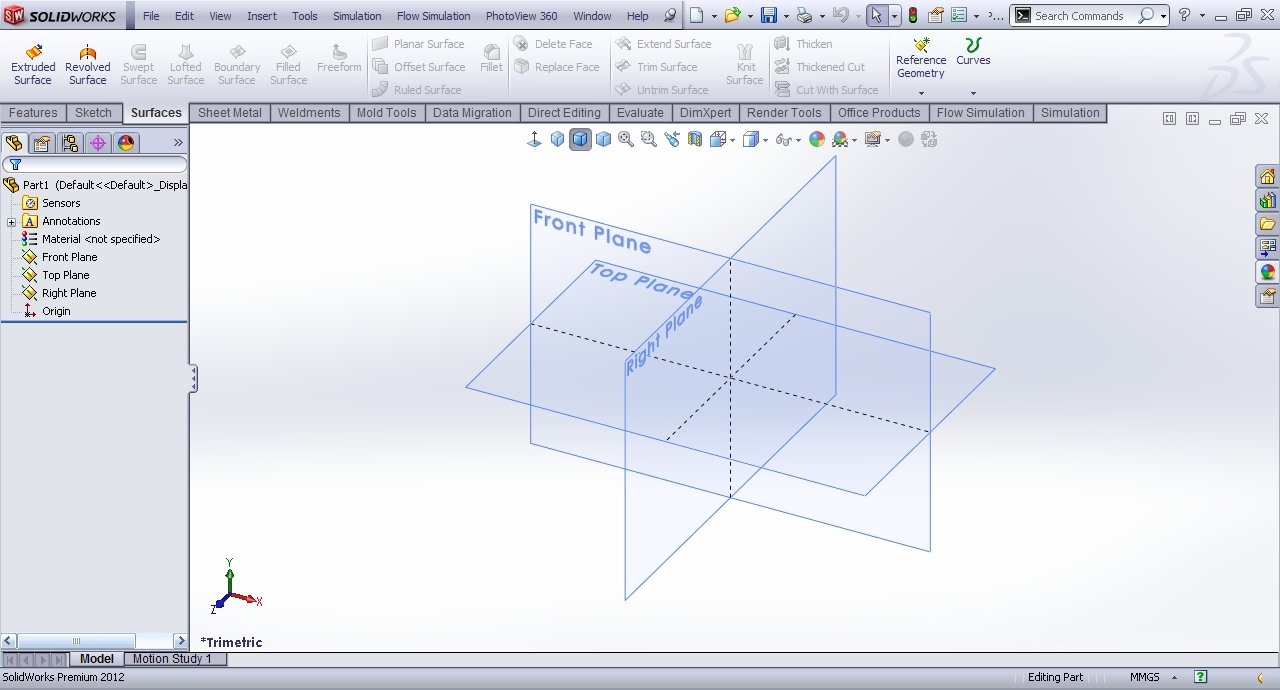

   Front plane & origin.




6. Step 6:

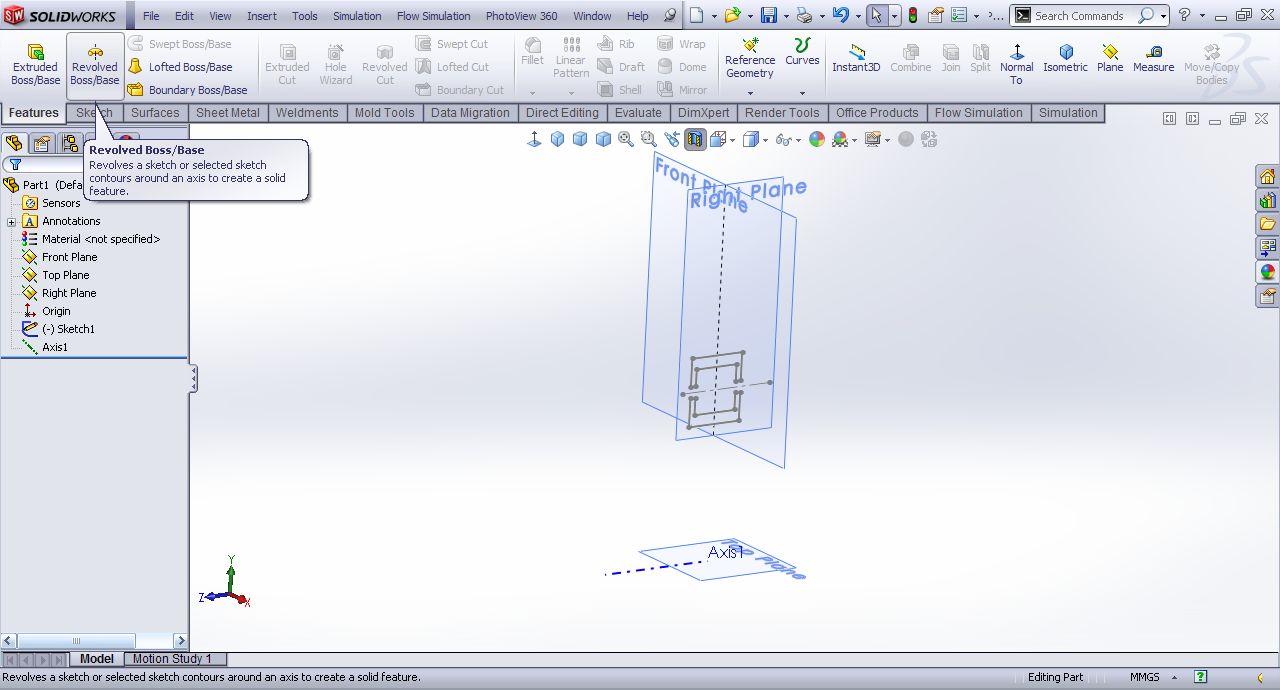

   Revolved base.




7. Step 7:

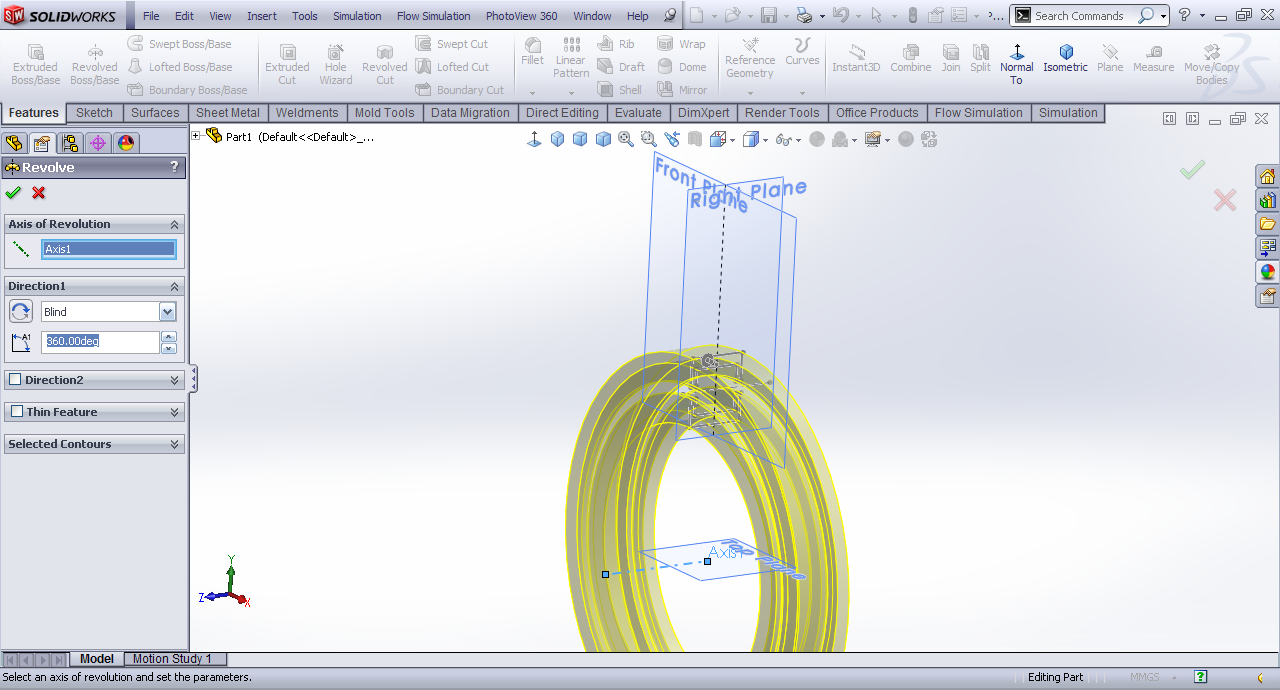

   Select the axis and revolve the profile




8. Step 8:

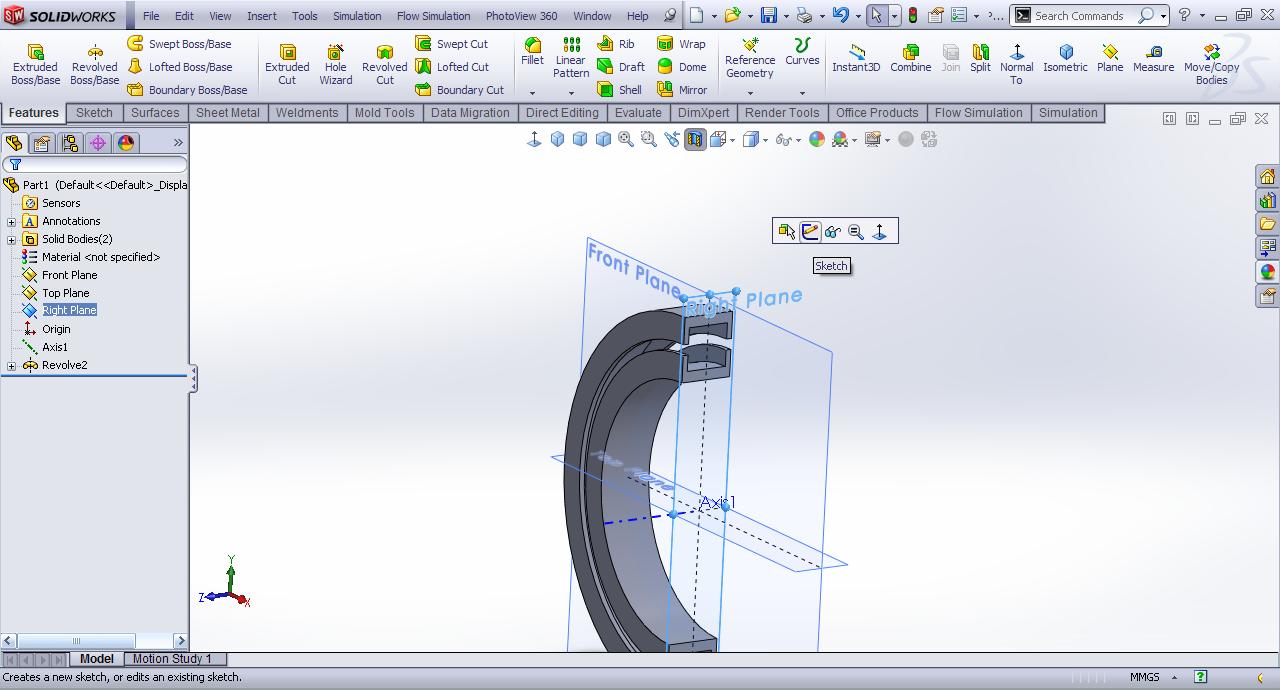

   Section view about right plane and then right plane>>sketch.




9. Step 9:

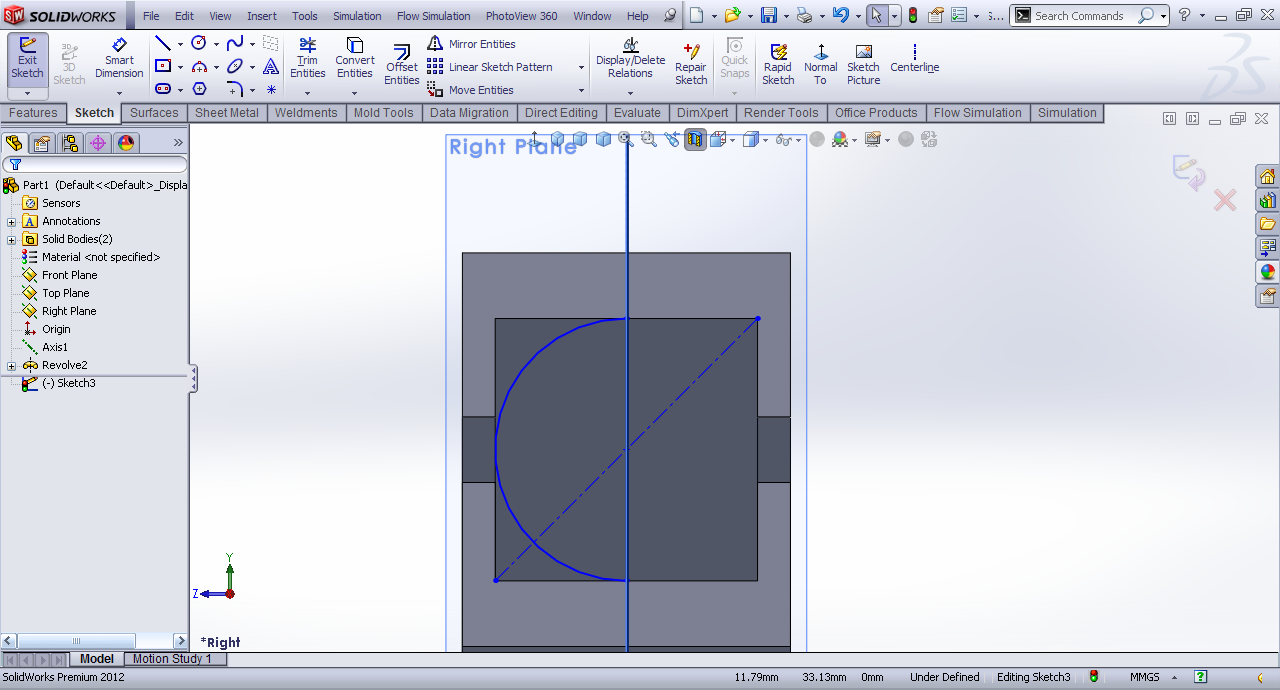

   Make a semicircle like this.




10. Step 10:

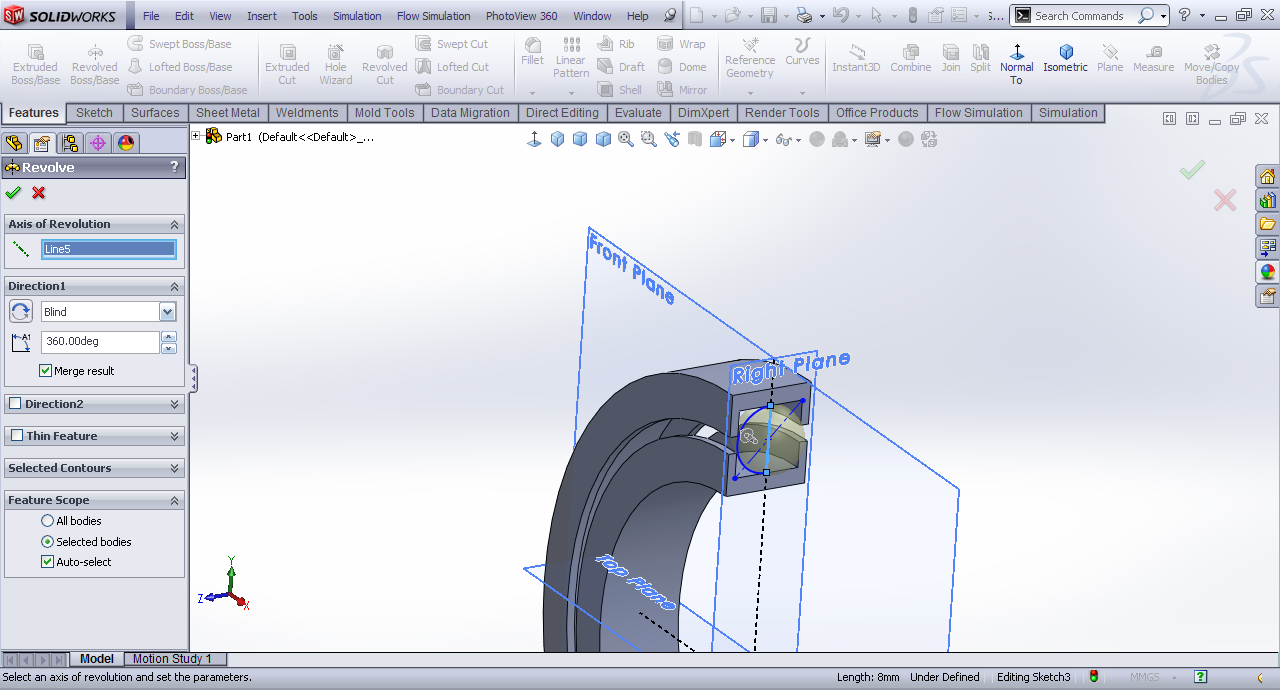

    Revolve it.




11. Step 11:

    Circular pattern.




12. Step 12:

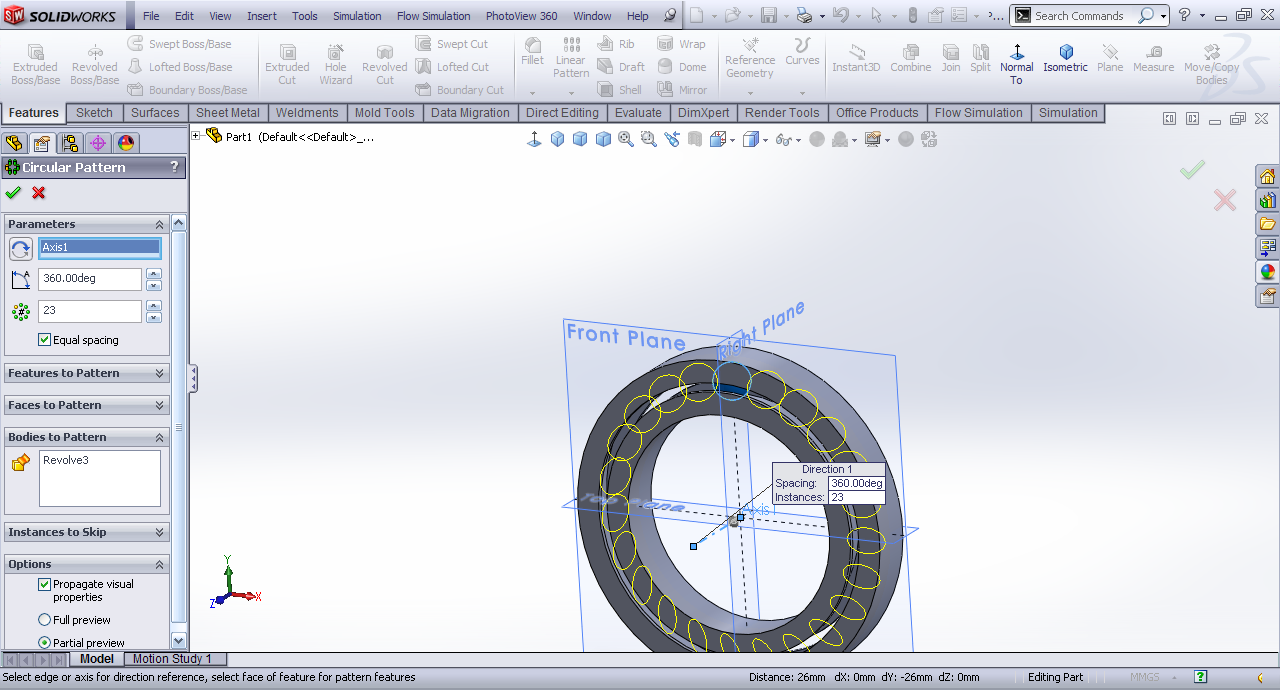

    Around Axis1 reolve the ball as body 23 times.




13. Step 13:

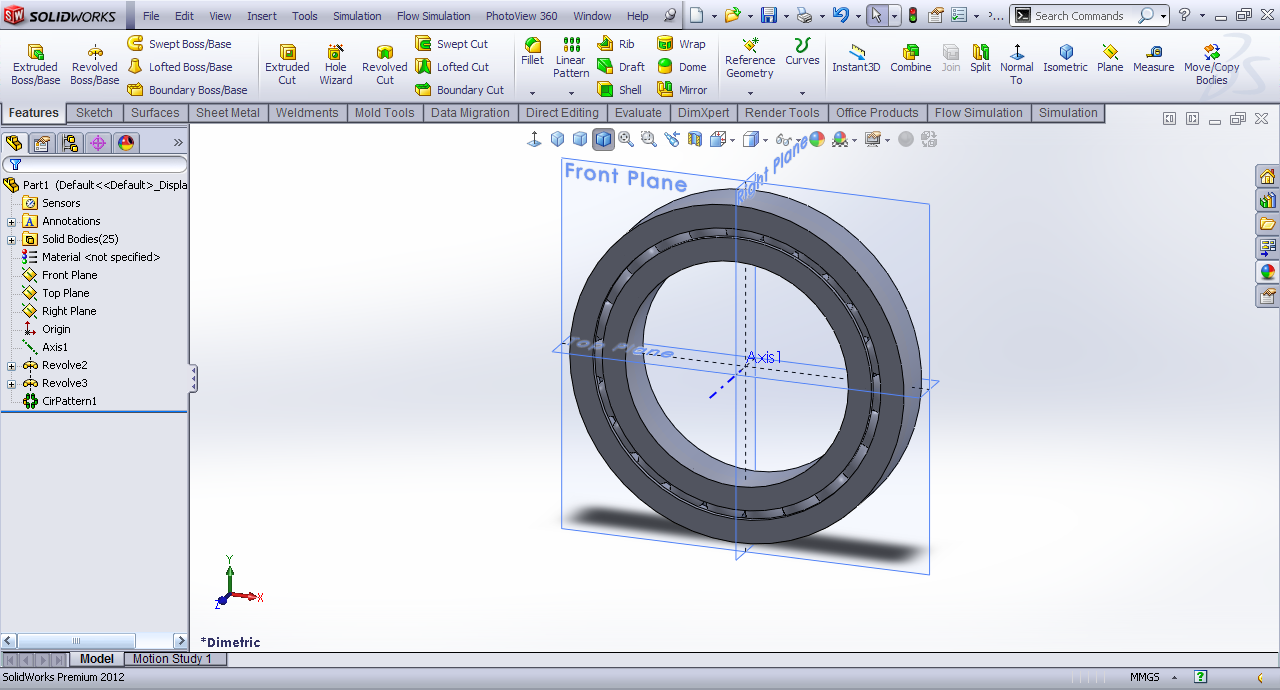

    And we have bearing.
