Fork End- Knuckle Joint Part 3
Learn, how to draft Fork End, a part of Knuckle Joint, by using Creo Parametric.
-
Step 1: Sketch-1
Select the top plane and click on 'Sketch'.

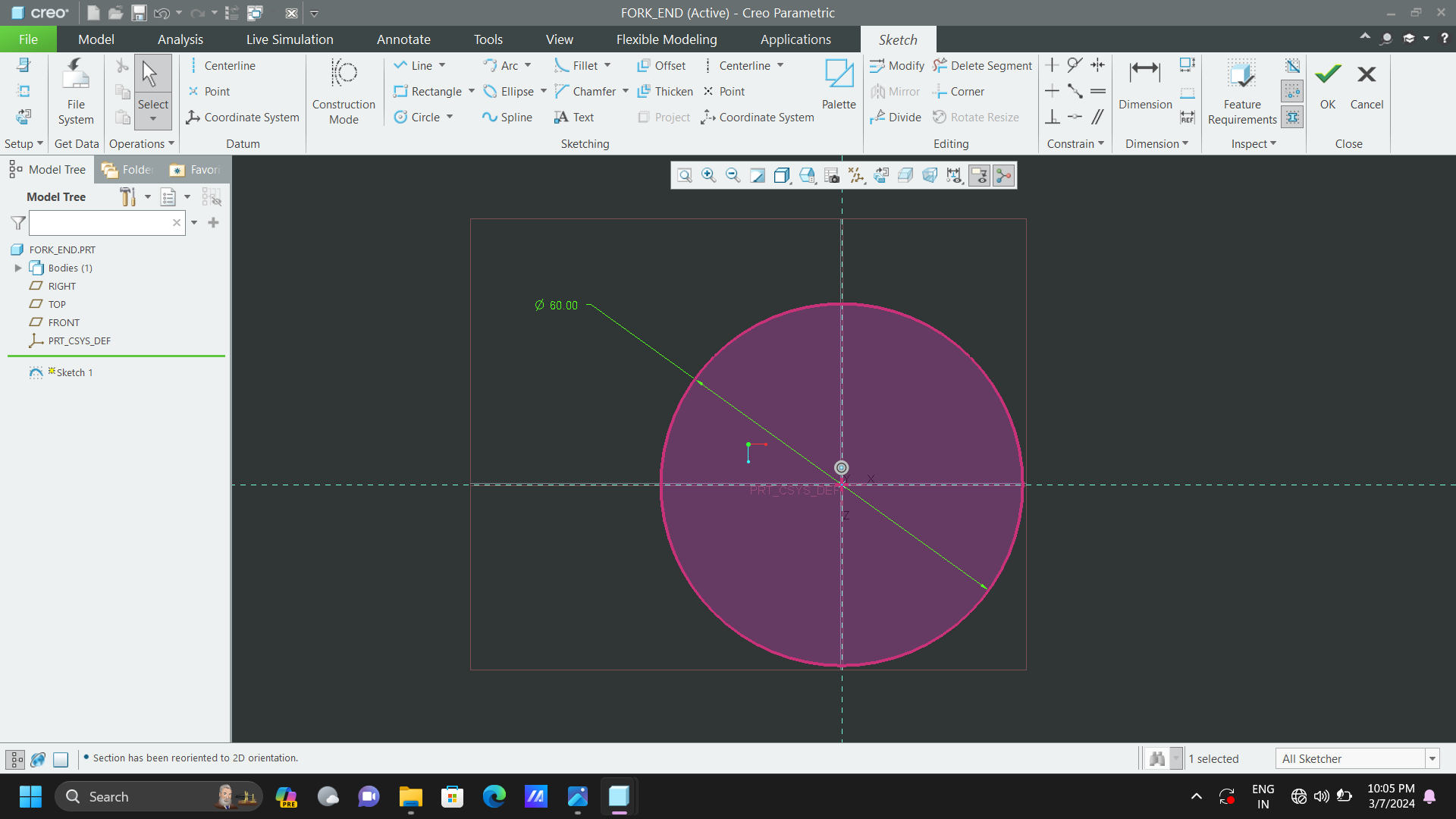

Select 'Circle' and draw a circle of 60mm.
Click on 'OK'.
-
Step 2: Extrude-1
Click on 'Extrude'.

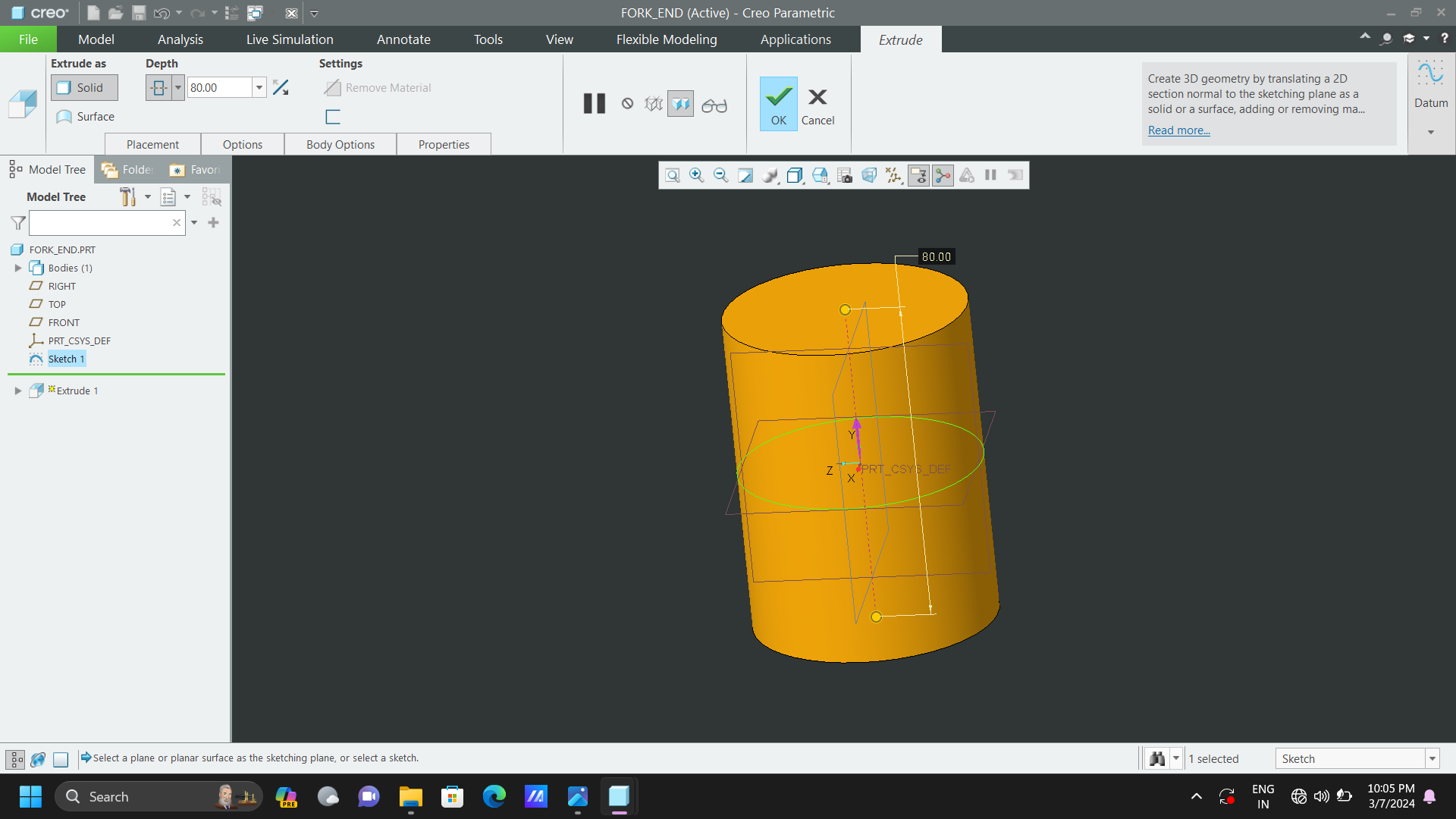

Extrude the sketch by 60mm.
Click on 'OK'.
-
Step 3: Sketch-2
Select the right plane and click on 'Sketch'.

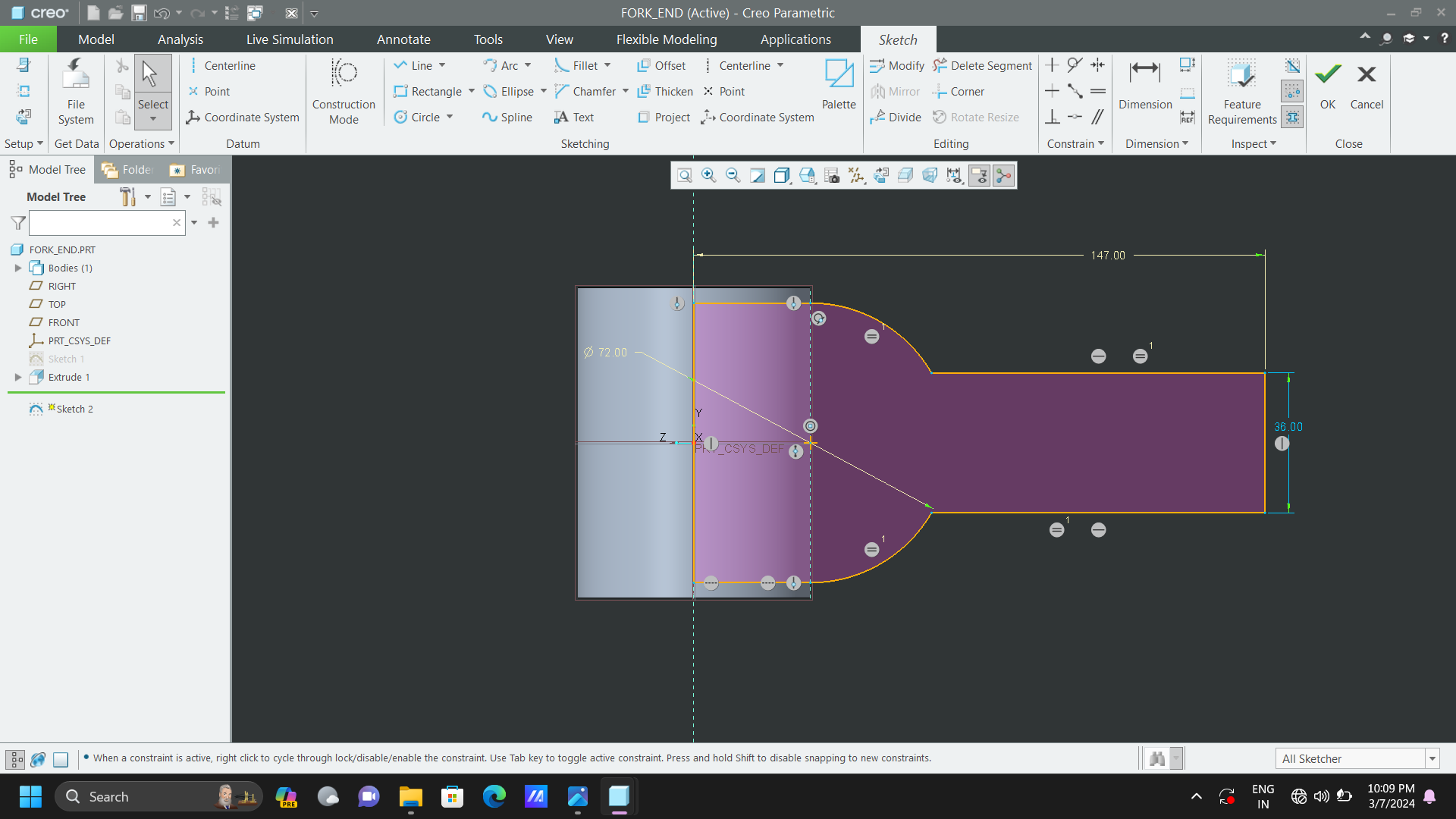

Using various sketching tools draw the sketch and give proper dimensions as shown in the figure below.
Click on 'OK'.
-
Step 4: Extrude-2
Click on 'Extrude'.

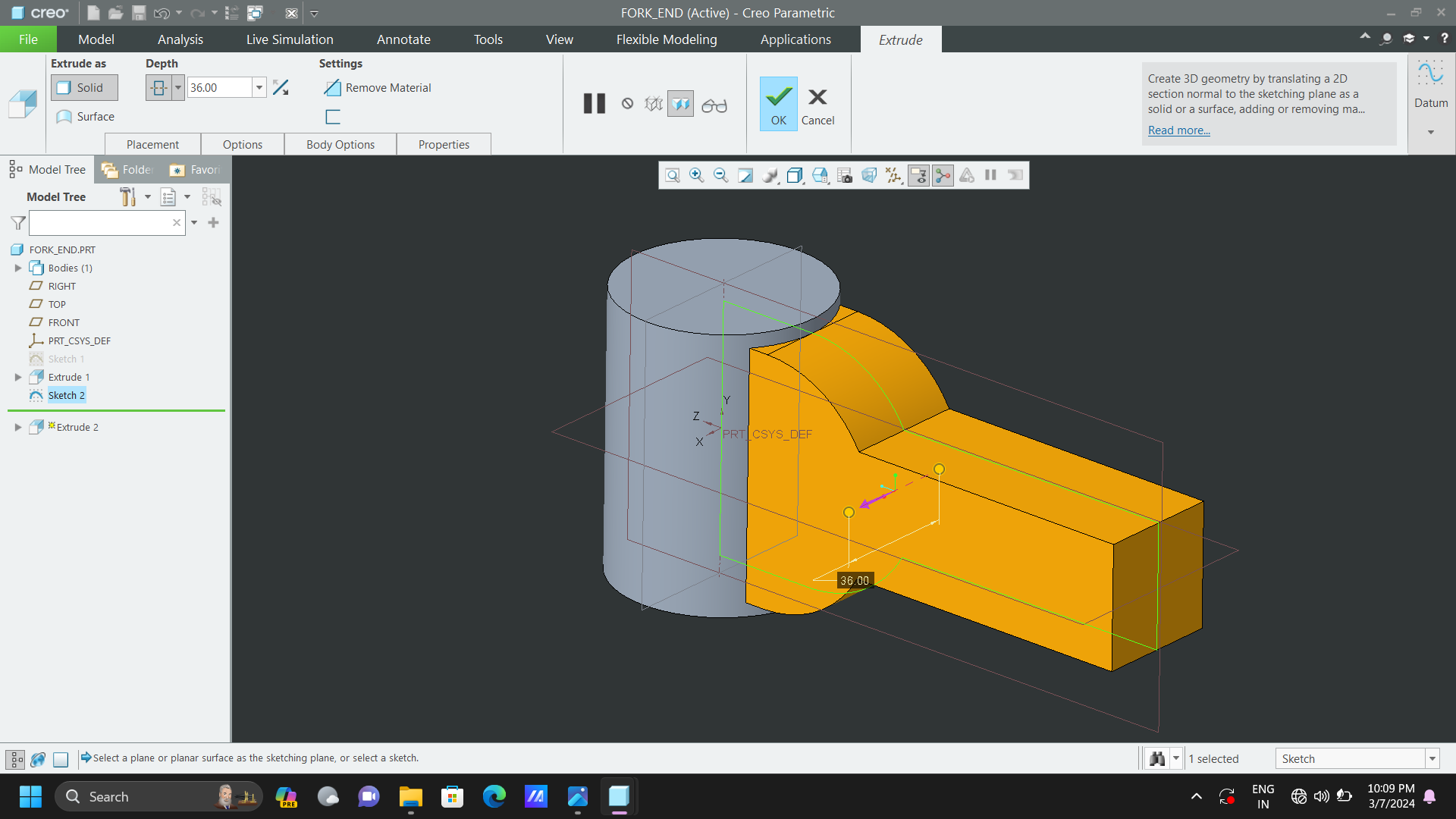

Extrude the sketch by 36mm.
Click on 'OK'.
-
Step 5: Sketch-3
Again select the right plane.

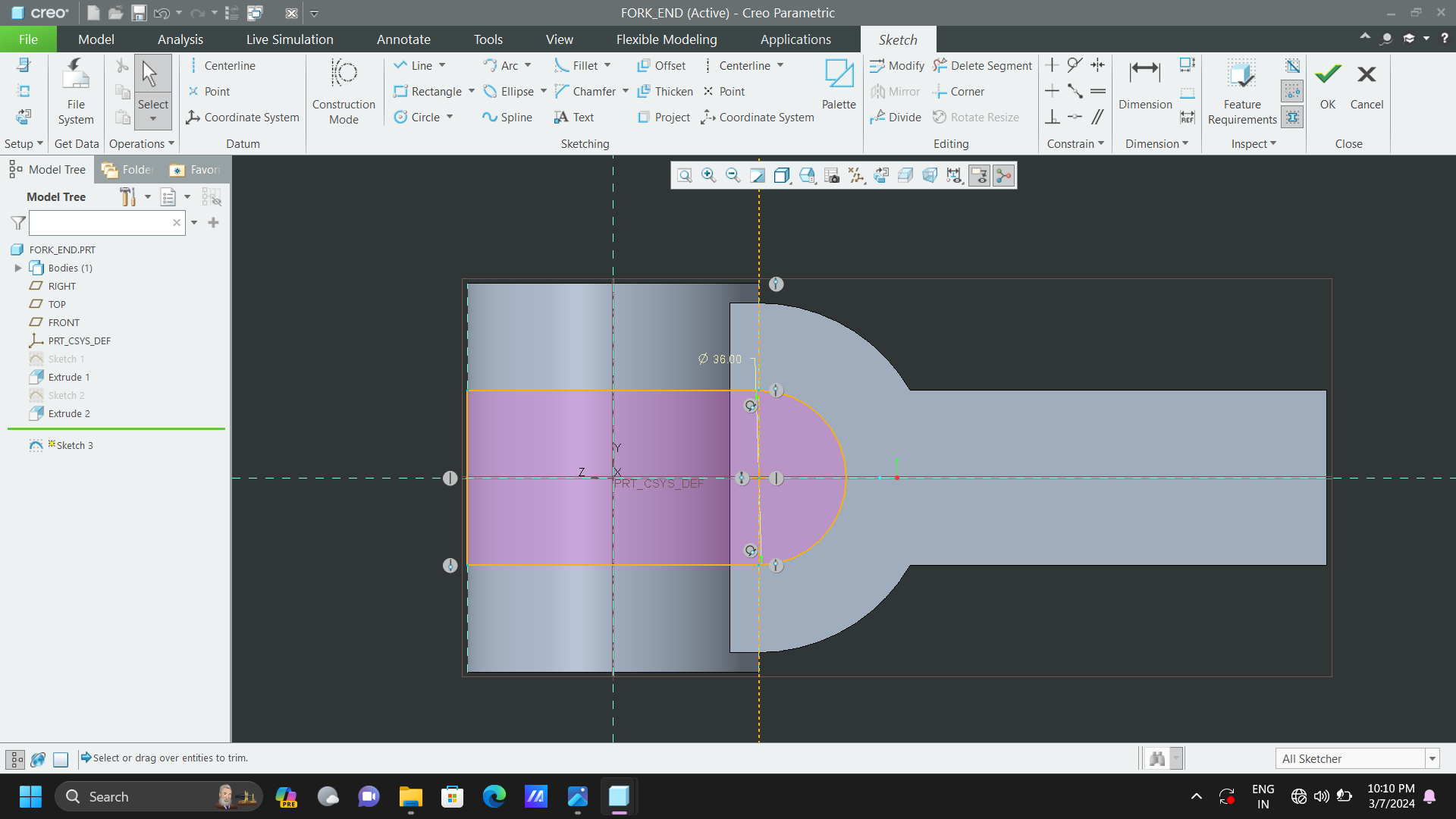

using various sketching tools draw the sketch and give proper dimensions as shown in the figure below.
Click on 'OK'.
-

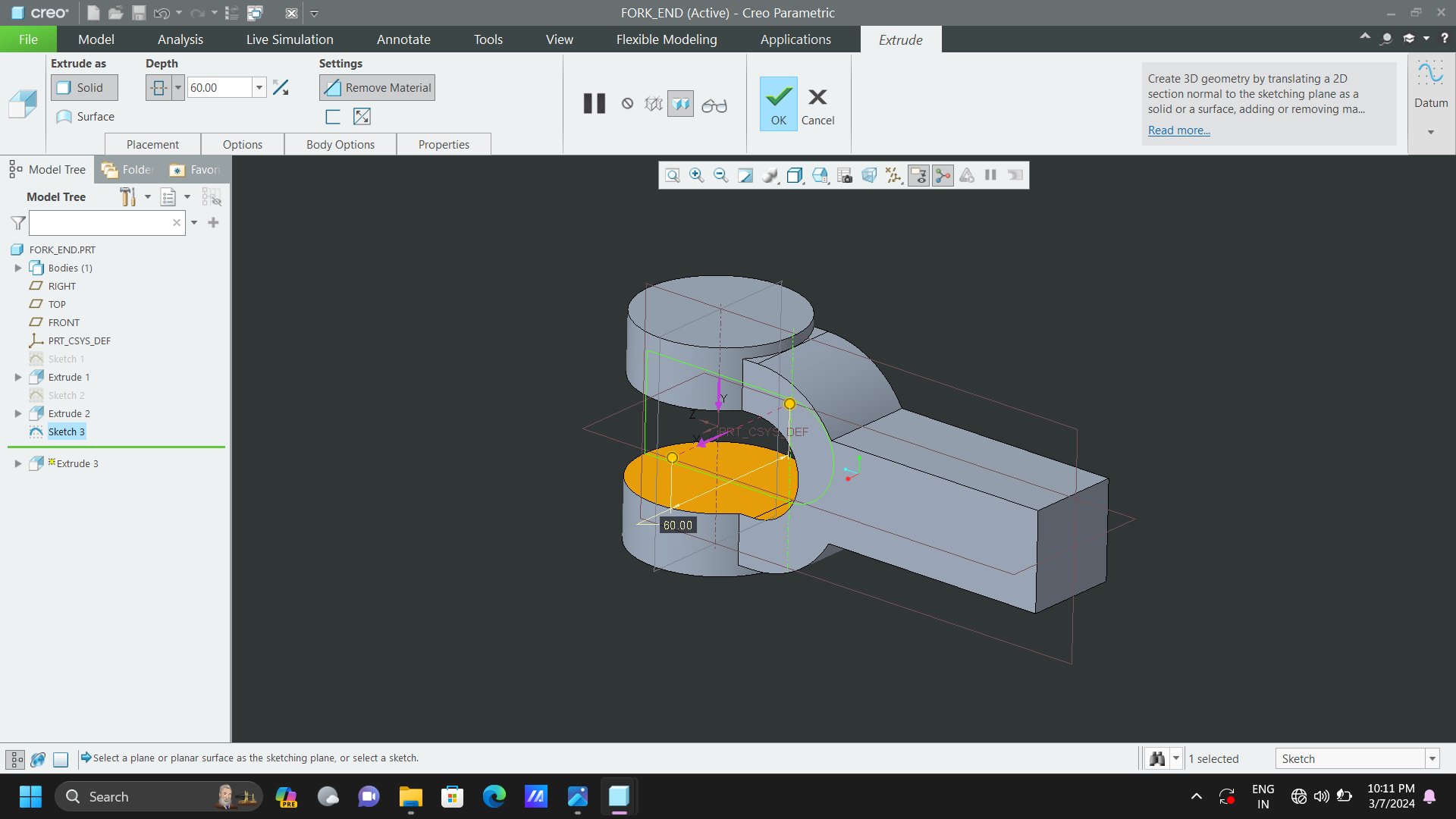

Step 6: Remove Material-1
Click on 'Extrude'.
Extrude the sketch by 60mm and select 'Remove Material'.
Click on 'OK'.
-
Step 7: Sketch-4
Select the top plane and click on 'Sketch'.

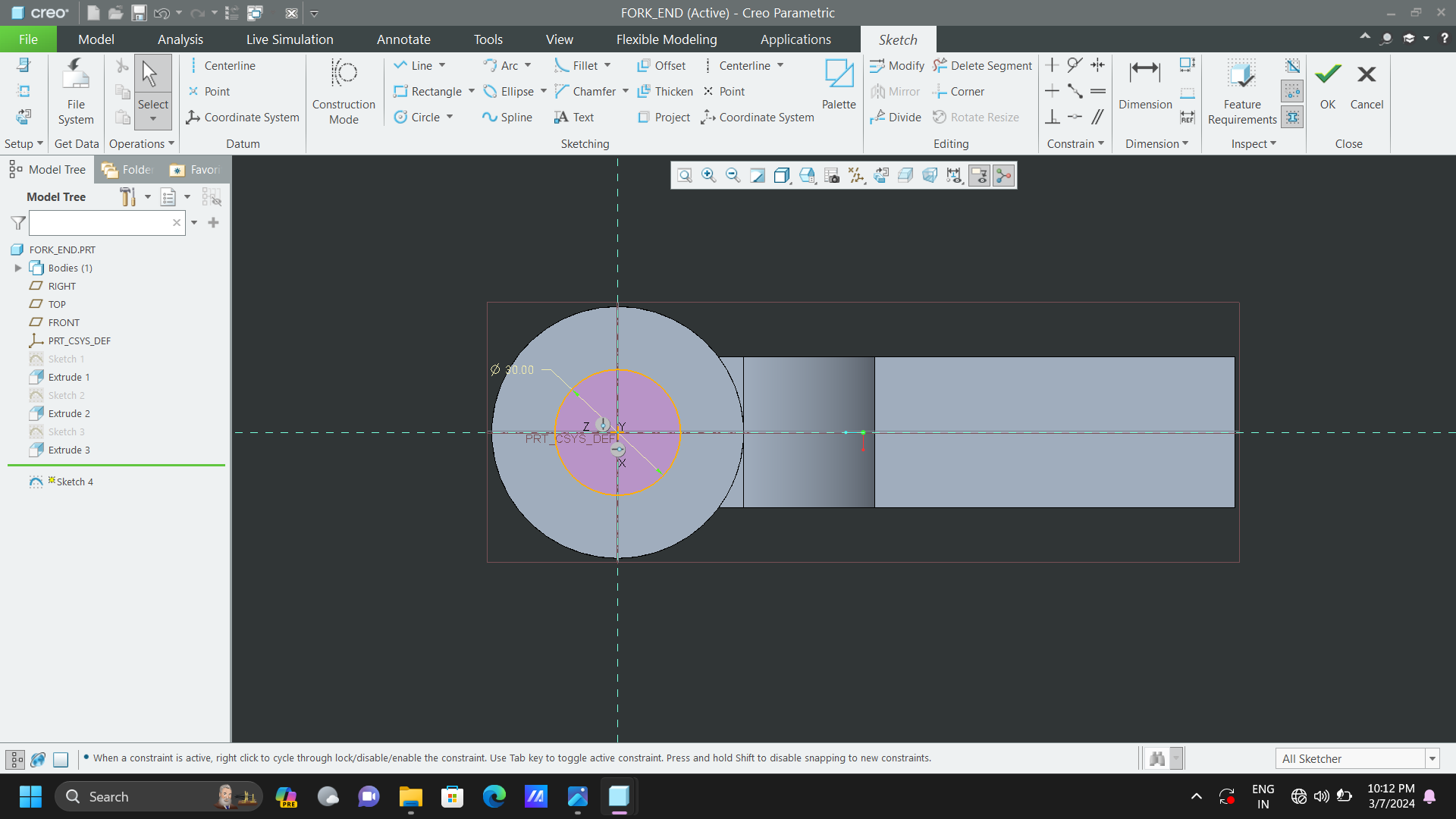

Select 'Circle' and draw a circle of 30mm diameter.
Click on 'OK'.
-
Step 8: Remove Material-2
Click on 'Extrude'

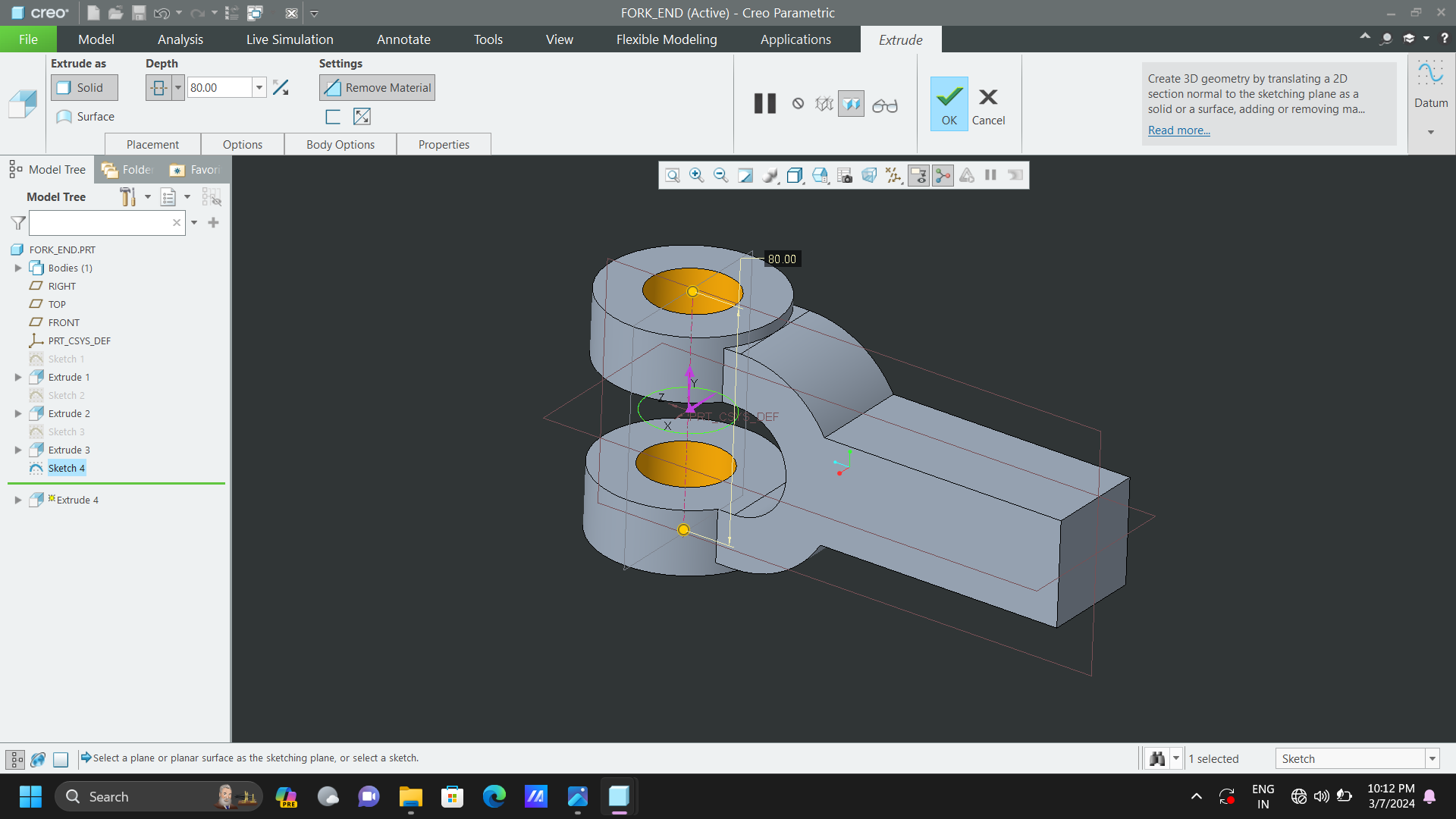

Extrude the sketch by 60mm and select 'Remove Material'.
Click on 'OK'.
-

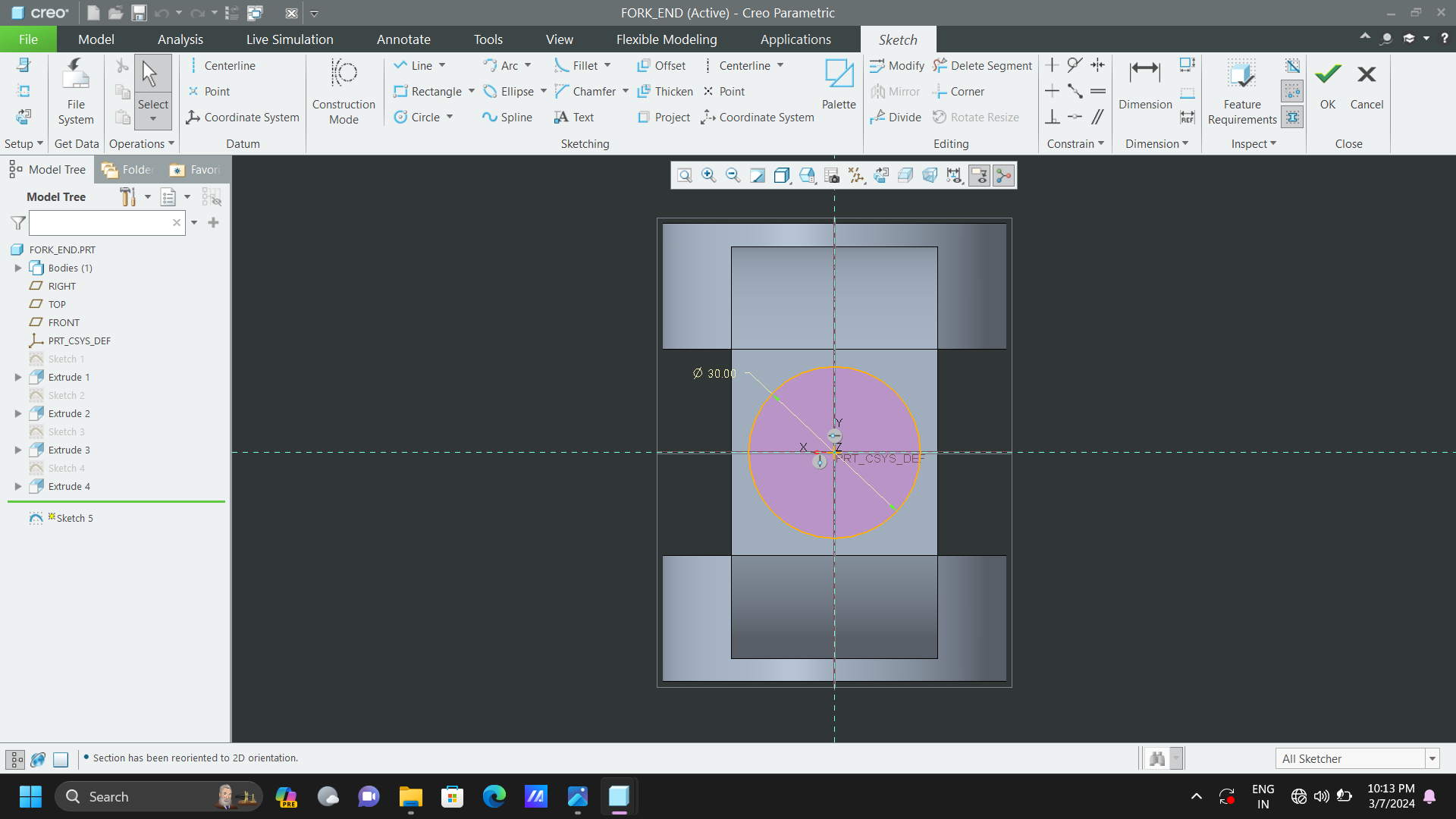

Step 9: Sketch-5
Select the end surface of the component and click on 'Sketch'.
Select 'Circle' and draw a circle of 30mm diameter.
Click on 'OK'.
-

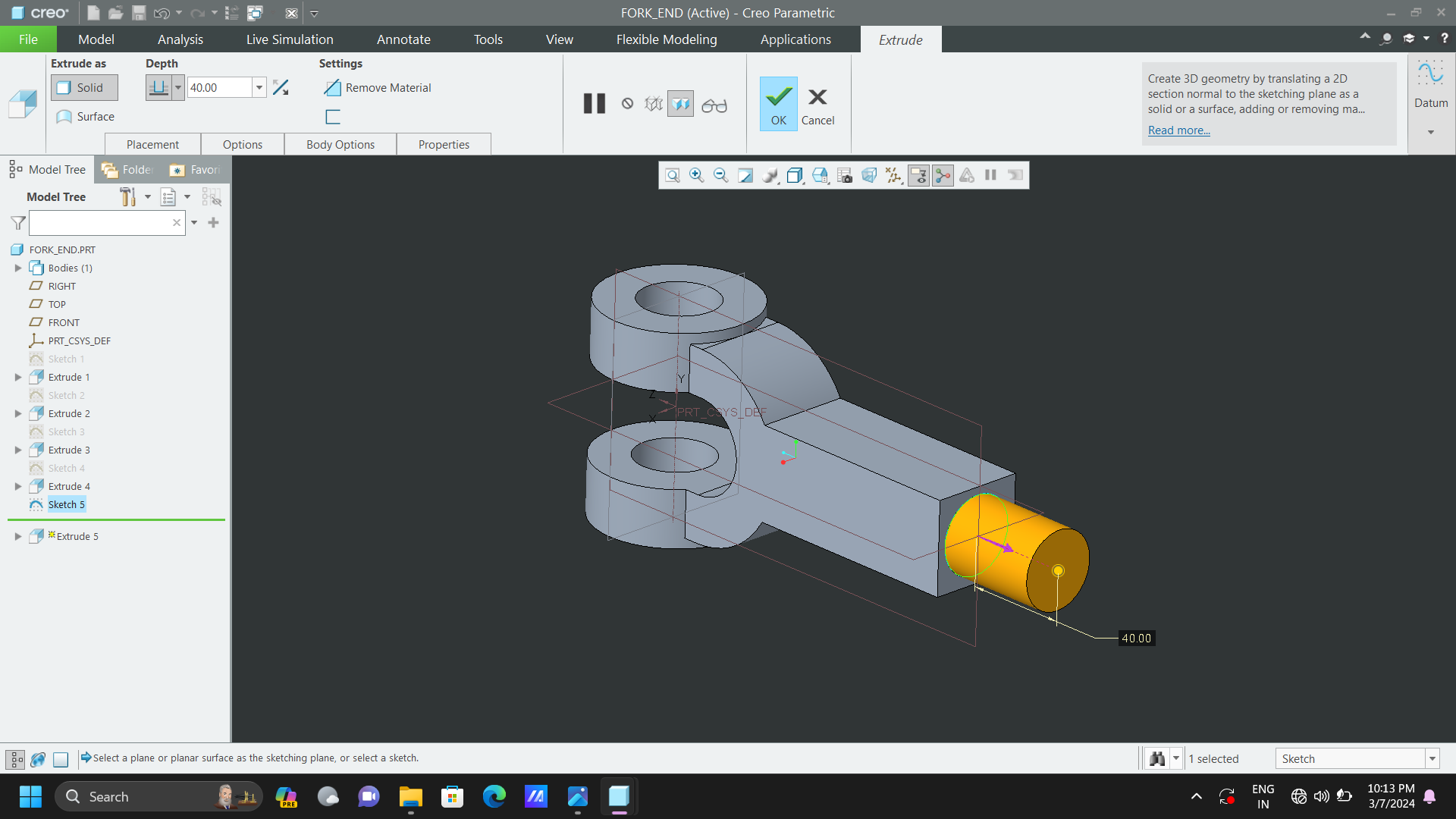

Step 10: Extrude-3
Click on 'Extrude'.
Extrude the sketch by 40mm.
Click on 'OK'.
-
Step 11: Sketch-6
Again select the same surface and click on 'Sketch'.

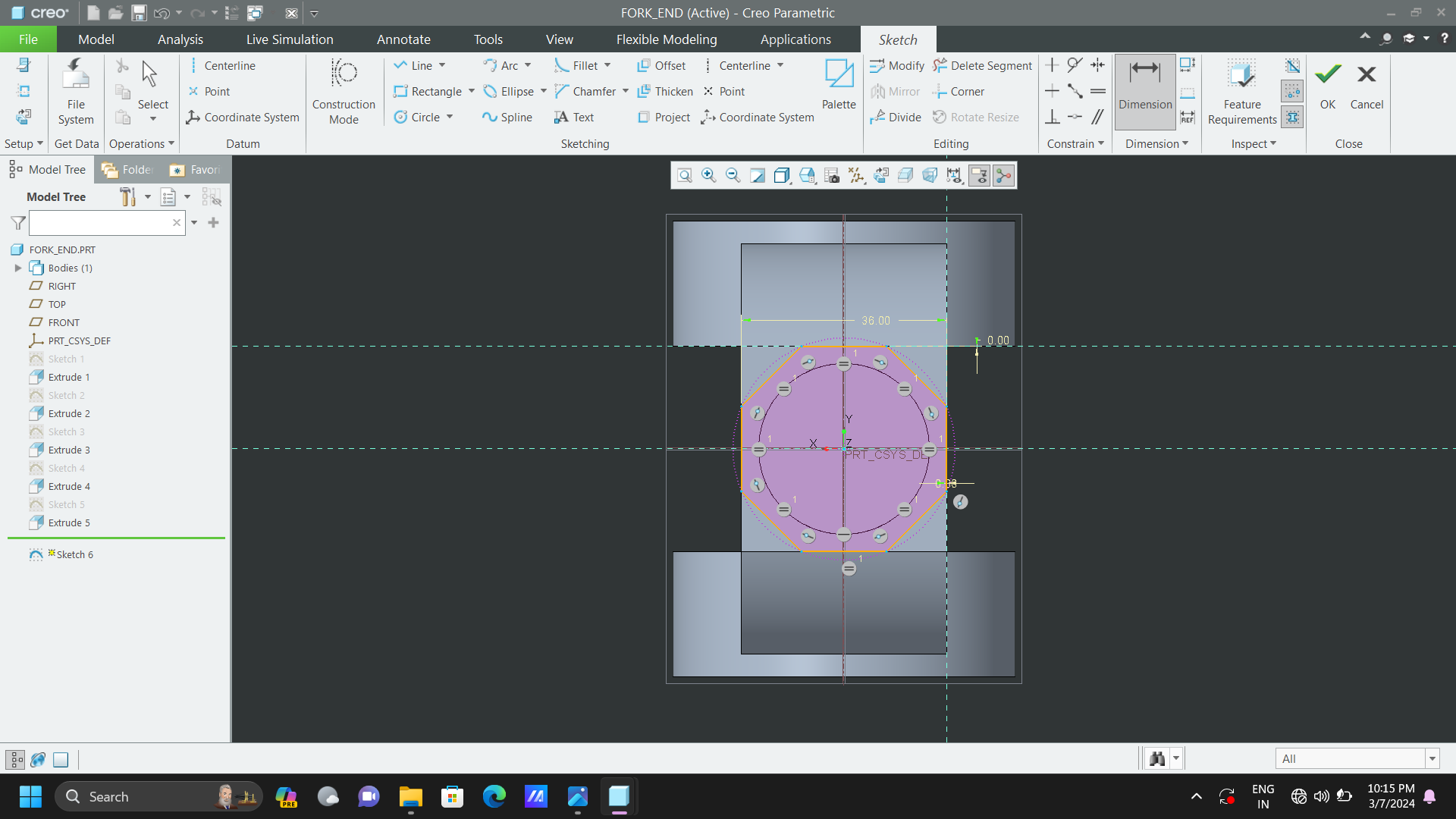

Click on 'Palette' and select 'Octagon' and draw an octagon of 36mm medium length.
Click on 'OK'.
-

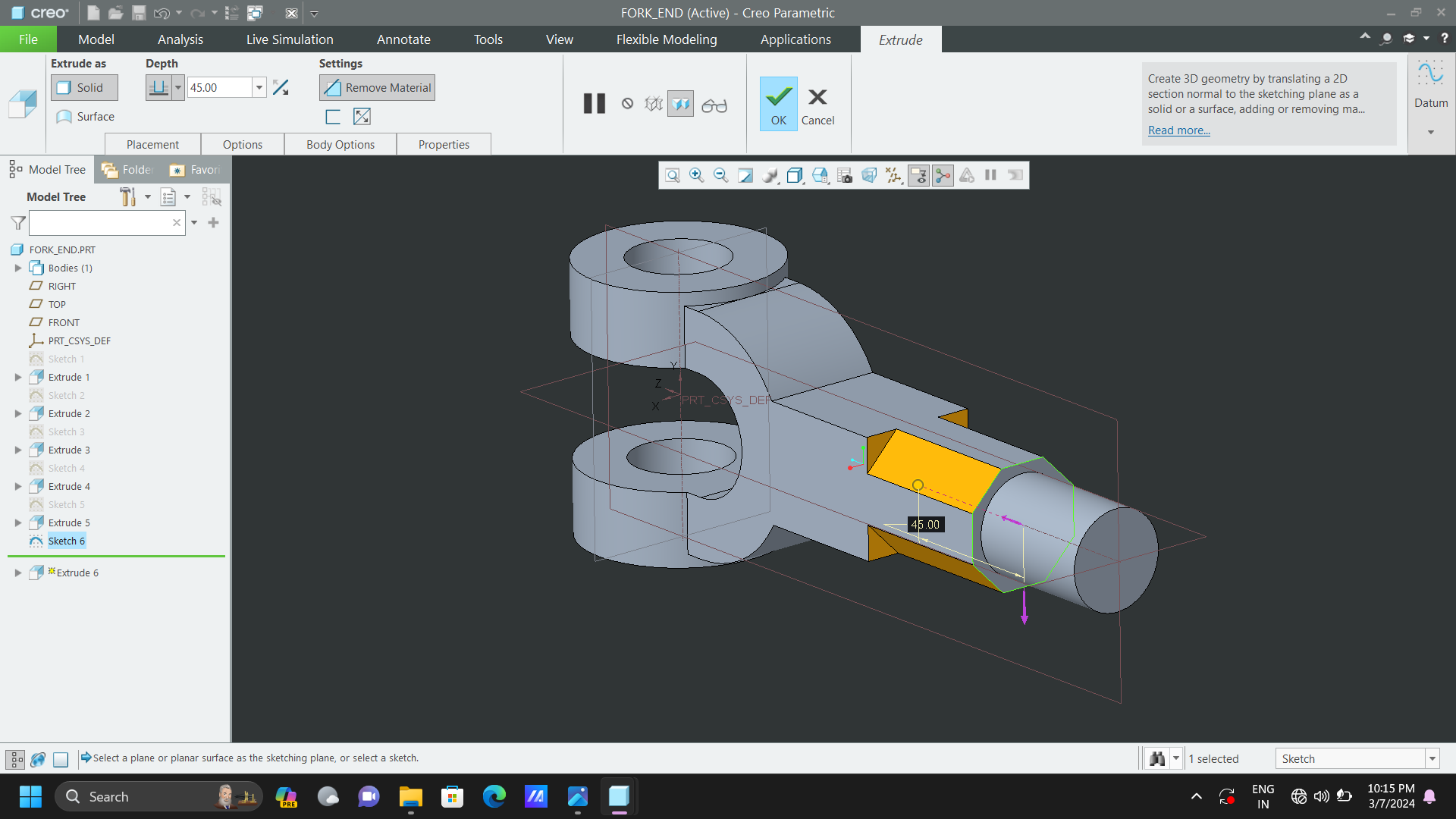

Step 12: Remove Material-3
Click on 'Extrude'.
Extrude the sketch by 45mm and select 'Remove Material'.
Click on 'OK'.
-

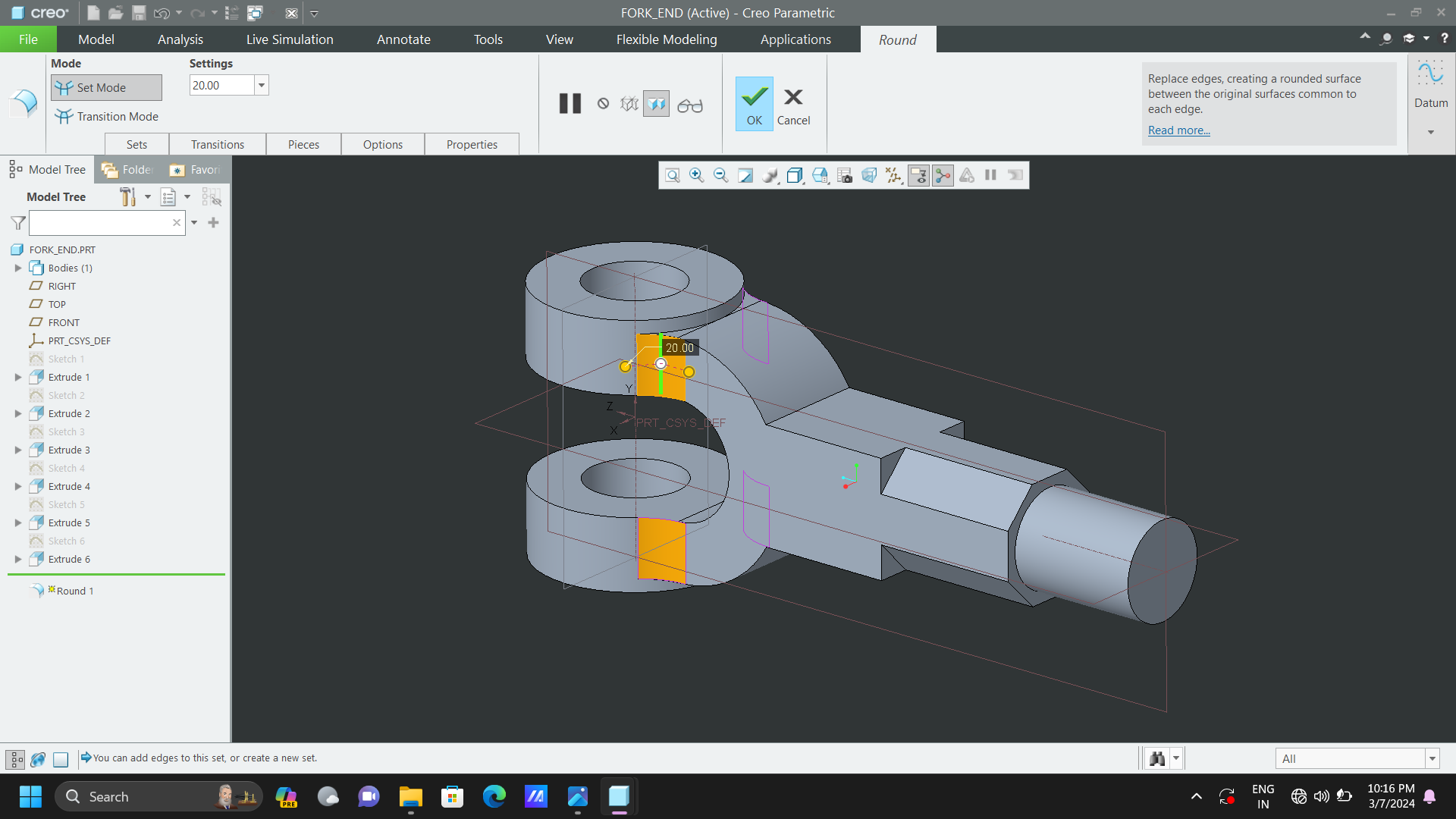

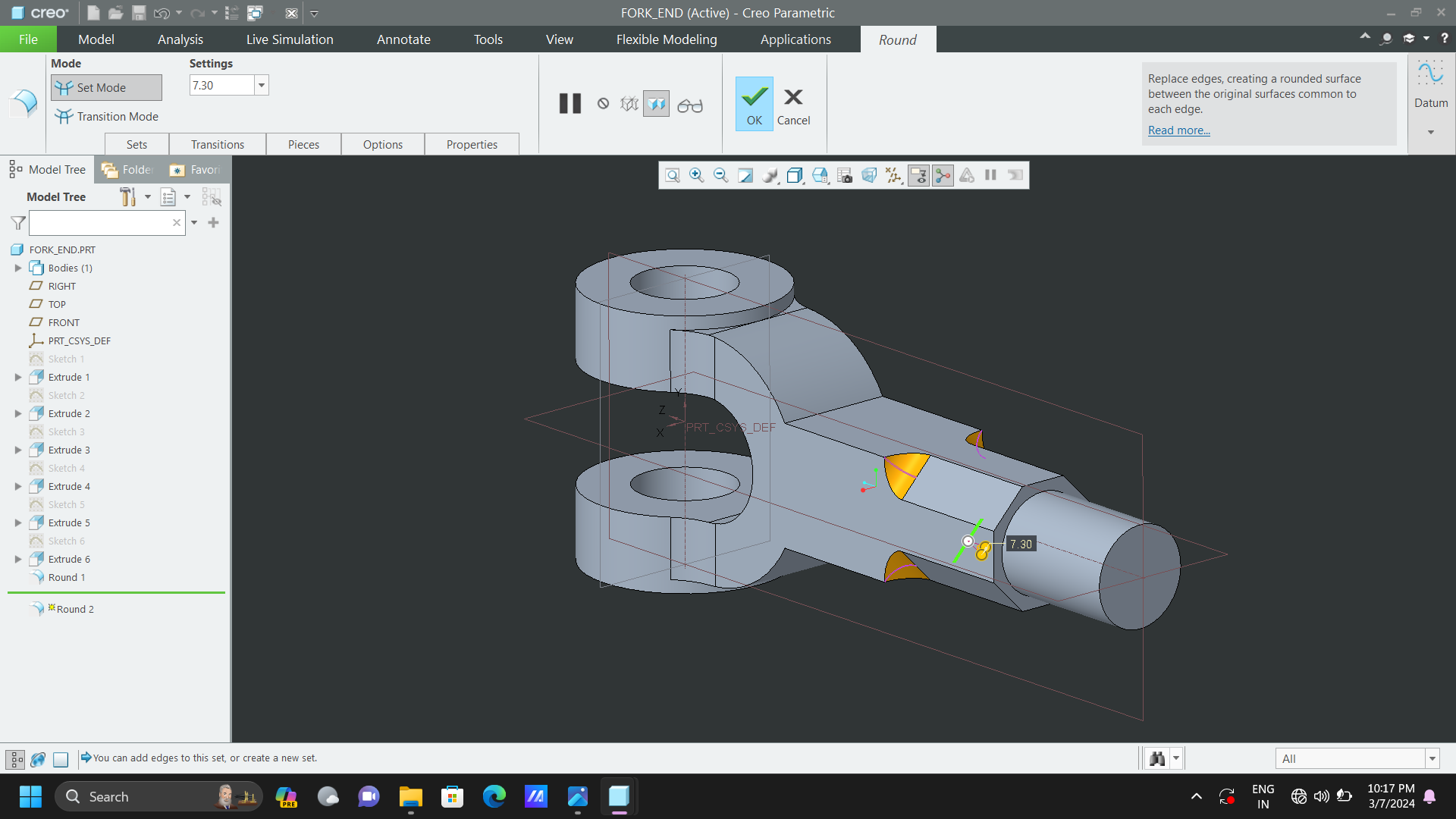

Step 13: Fillet & Round
Click on 'Round'.
Provide Fillet and Roundness wherever required.
Click on 'OK'.
-

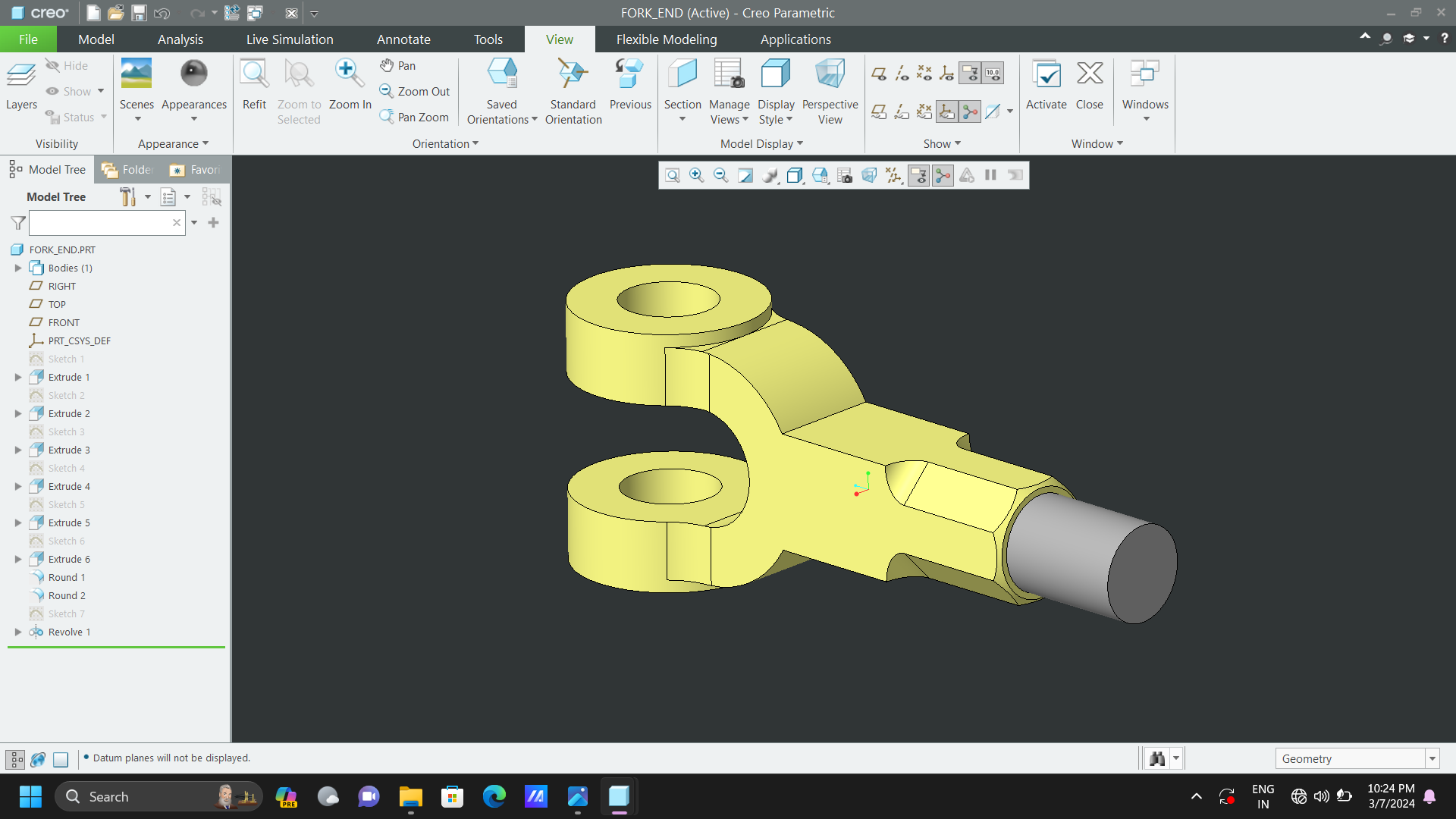

Step 14: Final Part- Fork End
